6 standard RS-232 interfaces and 8 USB interfaces to meet multiple expansion needs
Item No.:
BOX2020030Product origin:
ChinaColor:
BlackShipping port:
guangzhouLead Time:
71.INTEL H81 supports Intel's fourth-generation Haswell platform Core i3/i5/i7 processors

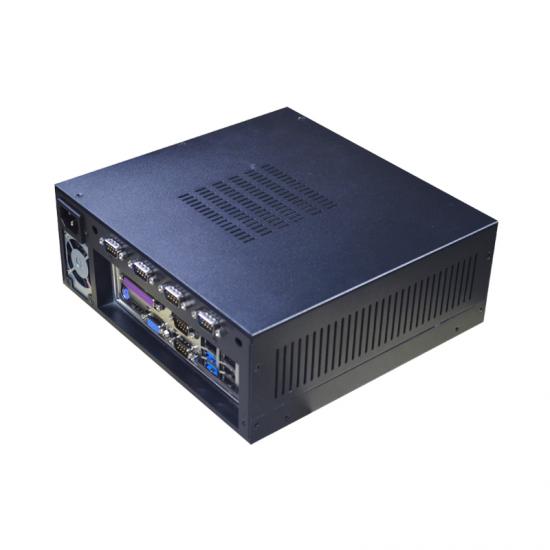

2.High-strength steel sheet metal body design, excellent heat dissipation performance, suitable for use in small and complex industrial sites, safe and reliable
3.6 standard RS-232 interfaces and 8 USB interfaces to meet multiple expansion needs
4.Ultra-thin size, flexible integration

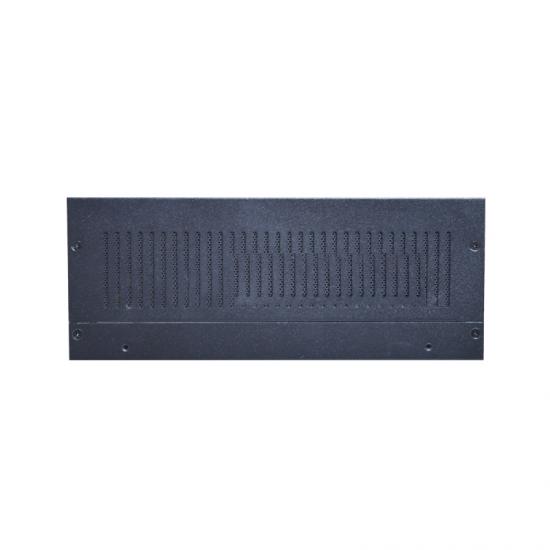

5.High-strength steel sheet metal body design with fan (with dust screen)
|
Motherboard |
INTEL H81 supports Intel's fourth-generation Haswell platform Core i3/i5/i7 processors |
|
RAM |
2 * DDR3 slots, support up to 16 GB DDR3 1066/1333 /1600 SDRAM storage mode |
|
Front panel I/O interface |

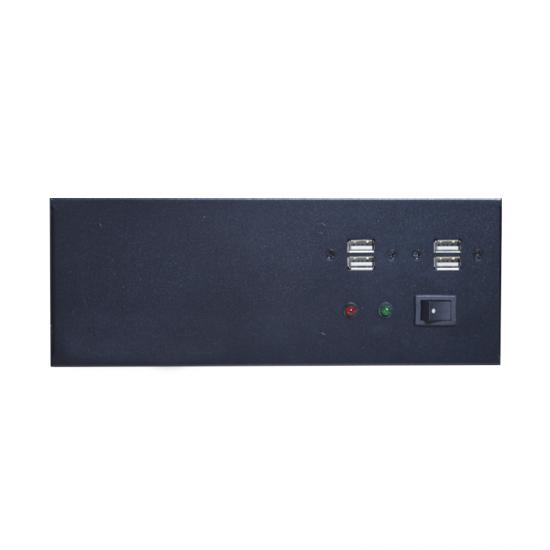

1 * Power switch button 4 * USB 2.0 interface 1 * PWR LED 1 * HDD LED |
|
Rear I/O interface |

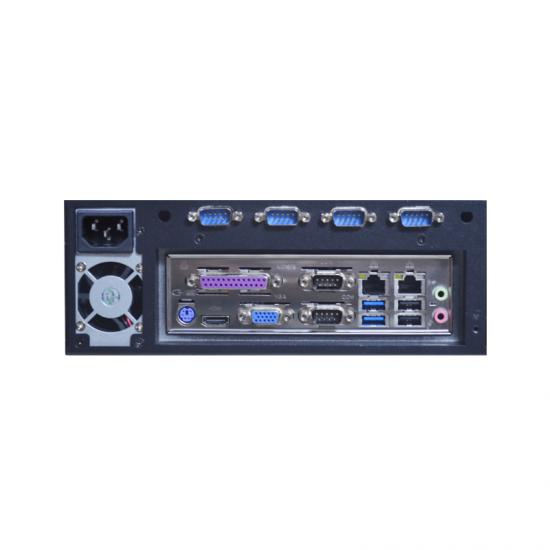

1 * ATX power connector 6 * COM interface 2 * USB 3.0 interface 2 * USB 2.0 interface 1 * VGA port 1 * HDMI interface 1 * LPT interface 1 * PS/KB interface 2 * RJ-45 Realtek8111E network card interface 2 * WIFI antenna terminal 1 * Audio 2 JACK port Line_in/Line_out |
|
storage |
1 x 2.5" SATA HDD bracket 1 built-in MSATA card slot |
|
Power mode |
Using standard ATX small 1U power supply, ATX power (W) is optional |
|
Dimensions |
220mm(D)x230mm(W)X88mm(H) body size 220mm(D)x244mm(W)X88mm(H) wall hole size |
|
structure |
High-strength steel sheet metal body design |
|
Ambient temperature |
Ambient air circulation: -20° C ~ 70° C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) |
|
storage temperature |
-20° C ~ 80° C Relative humidity: 10% ~ 93% (no condensation) |
|
Model |
Description |
|
BOX-6520/H81M12/
I5-4670T/4G/128G SSD/180W |
Small BOX industrial control machine/H81M12 motherboard/I5-4570/3.2G main frequency quad-core four-thread/ 4G memory/128G solid state hard disk/small 1U ATX 180W power supply/exposed interfaces: 2 network ports, 6 RS232 serial ports, VGA+ HDMI (supports independent dual display), 8 USB front 4 rear 4 (including 2 USB3.0, 6 USB2.0), 1 audio combination, 1 PS/2 2-in-1 mouse and keyboard interface, 1 LPT mouth.
|
Previous :
Mini BOX embedded industrial computer supports Intel second and third generation LGA 1155 platformIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
