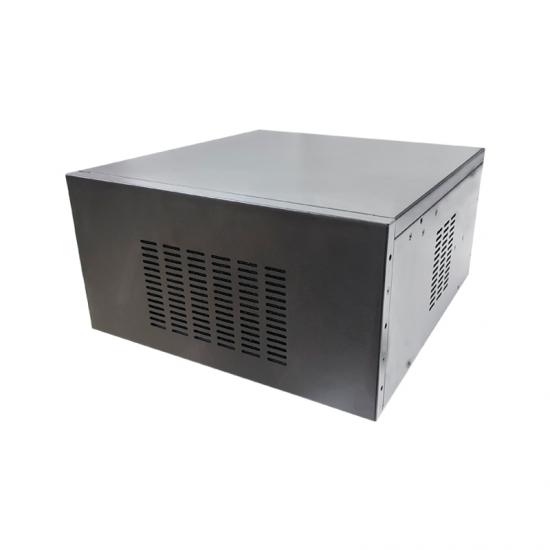

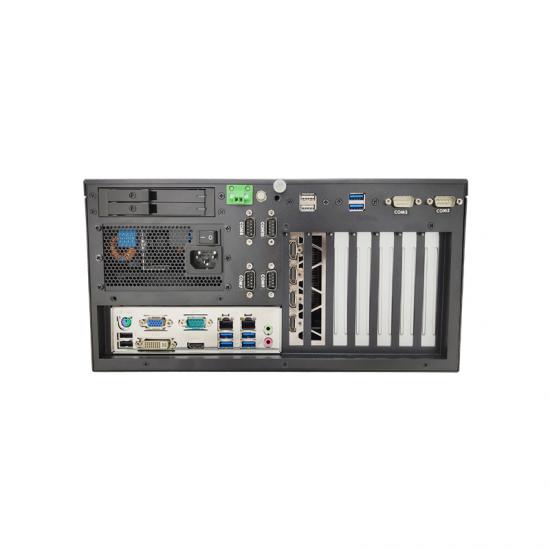

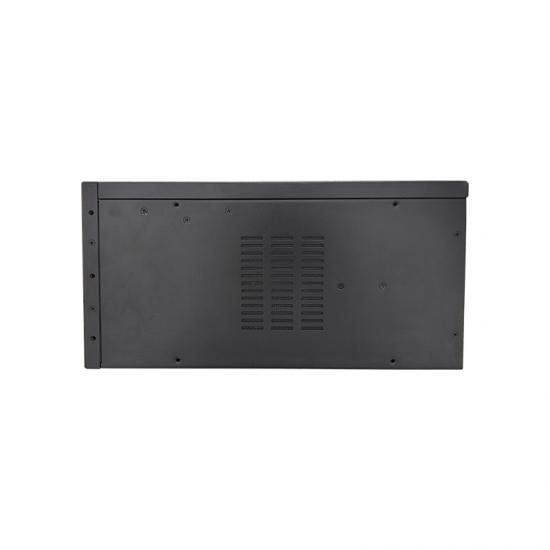

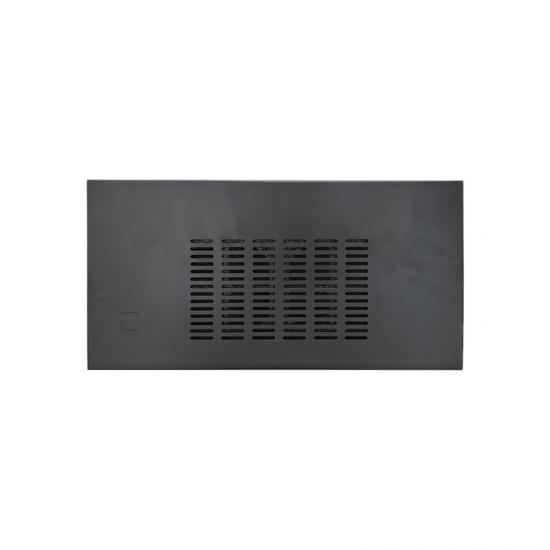

Product overview: IPC-6056B is a seven-slot compact wall-mounted complete machine, which can be installed with various industrial motherboards such as ATX, Micro-ATX, MINI-ITX, etc. It has a compact size. The features of high performance and high cost performance are compatible with multiple The platform supports Intel 2, 3, 4, 6, and 7 processors, independently controllable Zhaoxin KX-6000 processors, supports 7 expansion slots, and can directly expand full-height and half-length applications by using the expansion slots on the single board. An adapter board is required, and it still has good expansion performance in a small size; the chassis adopts a miniaturized design, which can meet the needs of installation in a small space. Main application areas: intelligent manufacturing industry, machine vision, security inspection, highways, self-service terminals, automated production and inspection, etc.
Item No.:
IPC-6056BProduct origin:
ChinaColor:
blackShipping port:
guangzhouLead Time:
15| project | describe |
| Adapter motherboard |
Compatible with intel H61, H81, H110, Q170, Q570, W580 and Zhaoxin platform ATX, Micro-ATX or MINI-ITX series industrial motherboards |
| graphics card | GeForce RTX™ 3090 Ti GAMING 24G |
| memory | 2 2.5" hard drive vibration damping bays, 1 3.5" hard drive damping bay |
| Expansion slot | Provides 7 full-height expansion slots |
| Operating temperature | 0℃～+50℃; 5%～90% (non-condensing state) |
| storage environment | -20℃～+60℃; 5%～90% (non-condensing state) |
| power supply | Standard ATX power supply |
| Dimensions | 330×160×325mm(W*H*D) |
|
model |
describe |
|
IPC-6056B/ZX
C4580/4G/1T/250W
|
IPC-6056 rack-mounted 4U whole machine/Zhaoxin C4580 motherboard/ZX-C4580 CPU/4G memory/1T hard disk/ATX 250W power supply/external IO interface: front 2 USB2.0. Rear 2 USB2.0. /2 USB3.0/6 COM (expandable to 10), COM1, COM2 support RS232\RS422\RS485/VGA+DVI-D/2 network ports/1 PS/2/1 group audio interface/ 1 LPT/2 PCI slots/1 PCIE×4 slot (X1 signal)/1 PCIE×16 slot
|
|
IPC-6056B/KX
U6580/4G/1T/250W
|
IPC-6056 rack-mounted 4U whole machine/Zhaoxin EC9-KX6000 motherboard/KX-U6580 CPU/4G memory/1T hard disk/ATX 250W power supply/External IO interface: 2 USB2.0 at the front. 8 USB2 at the rear. 0./6 USB3.0/5 COM (expandable to 6), COM1, COM2 support RS232\RS422\RS485/VGA+HDMI+DVI-D/2 network ports/1 PS2 /1 group audio Interface/1 LPT/2 PCI slots/1 PCIE×4 slot (X2 signal)/1 PCIE×16 slot (X8 signal) |
|
IPC-6056B/EC9-H81/
G1820/4G/1T/250W
|
IPC-6056 rack-mounted 4U whole machine/EC9-H81 motherboard/G1820 CPU/4G memory/1T hard disk/ATX 250W power supply/external IO interface: 2 USB2.0 at the front. 4 USB2.0./2 at the rear USB3.0/5 COM (expandable to 6), COM1 supports RS232\RS422\RS485/VGA+HDMI+DVI/ 1 8 bit GPIO/2 network ports/1 PS2/ 1 set of audio interfaces/ 1 LPT/2 PCI slots/1 PCIE×4 slot (X1 signal)/1 PCIE×16 slot |
|
IPC-6056B/EC9-H81/I5-
4570/4G/1T/250W
|
IPC-6056 rack-mounted 4U whole machine/EC9-H81 motherboard/I5-4570 CPU/4G memory/1T hard disk/ATX 250W power supply/external IO interface: 2 USB2.0 at the front. 4 USB2.0 at the rear. /2 USB3.0/5 COM (expandable to 6), COM1 supports RS232\RS422\RS485/VGA+HDMI+DVI/1 8 bit GPIO/2 network ports/1 PS2/ 1 set of audio Interface/1 LPT/2 PCI slots/1 PCIE×4 slot (X1 signal)/1 PCIE×16 slot |
|
IPC-6056B/EC9-H110/
G3900/4G/1T/250W
|
IPC-6056 rack-mounted 4U whole machine/EC9-H110 mainboard/G3900 CPU/4G memory/1T hard disk/ATX 250W power supply/external IO interface: front 2 USB2.0. Rear 2 USB2.0./4 USB3.0/5 COM (expandable to 6), COM1 supports RS232\RS422\RS485/VGA+HDMI+DVI-D/1 8 bit GPIO/2 network ports/1 PS2/1 set of audio Interface/1 LPT/2 PCI slots/1 PCIE×4 slot (X1 signal)/1 PCIE×16 slot |
|
IPC-6056B/EC9-H110/I5-
6500/4G/1T/250W
|
IPC-6056 rack-mounted 4U whole machine/EC9-H110 motherboard/I5-6500 CPU/4G memory/1T hard disk/ ATX 250W power supply/external IO interface: 2 USB2.0 at the front. 2 USB2.0 at the rear. /4 USB3.0/5 COM (expandable to 6), COM1 supports RS232\RS422\RS485/VGA+HDMI+DVI-D/1 8 bit GPIO/2 network ports/ 1 PS2/1 Group audio interface/1 LPT/2 PCI slots/1 PCIE×4 slot (X1 signal)/1 PCIE×16 slot |
|
IPC-6056B/EC0-H81/
G1820/4G/1T/250W
|
IPC-6056 rack-mounted 4U whole machine/EC0-H81 motherboard/G1820 CPU/4G memory/1T hard disk/ATX 250W power supply/external IO interface: 2 USB2.0 at the front. 4 USB2.0./2 at the rear USB3.0/5 COM (expandable to 6), COM1 supports RS232\RS422\RS485/VGA+HDMI+DVI/ 1 8 bit GPIO/2 network ports/1 PS2/ 1 set of audio interfaces/ 1 LPT/5 PCI slots/1 PCIE×4 slot (X1 signal)/1 PCIE×16 slot |
|
IPC-6056B/EC0-H81/I5-
4570/4G/1T/250W
|
IPC-6056 rack-mounted 4U whole machine/EC0-H81 motherboard/I5-4570 CPU/4G memory/1T hard disk/ATX 250W power supply/external IO interface: 2 USB2.0 at the front. 4 USB2.0 at the rear. /2 USB3.0/5 COM (expandable to 6), COM1 supports RS232\RS422\RS485/VGA+HDMI+DVI/1 8 bit GPIO/2 network ports/1 PS2/1 set of audio Interface/1 LPT/5 PCI slots/1 PCIE×4 slot (X1 signal)/1 PCIE×16 slot |
|
IPC-6056B/EC0-H110/
G3900/4G/1T/250W
|
IPC-6056 rack-mounted 4U whole machine/EC0-H110 mainboard/G3900 CPU/4G memory/1T hard disk/ATX 250W power supply/external IO interface: 2 USB2.0 at the front. 2 USB2.0./4 at the rear USB3.0/5 COM (expandable to 6), COM1 supports RS232\RS422\RS485/VGA+HDMI+DVI/ 1 8 bit GPIO/2 network ports/1 PS2 /1 set of audio interfaces/ 1 LPT/4 PCI slots/2 PCIE×4 slots (X1 signal)/1 PCIE×16 slots |
|
IPC-6056B/EC0-H110/I5-
6500/4G/1T/250W
|
IPC-6056 rack-mounted 4U whole machine/EC0-H110 motherboard/I5-6500 CPU/4G memory/1T hard disk/ ATX 250W power supply/external IO interface: 2 USB2.0 at the front. 2 USB2.0 at the rear. /4 USB3.0/5 COM (expandable to 6), COM1 supports RS232\RS422\RS485/VGA+HDMI+DVI/1 8 bit GPIO/2 network ports/1 PS2/ 1 set of audio Interface/1 LPT/4 PCI slots/2 PCIE×4 slots (X1 signal)/1 PCIE×16 slot |
|
IPC-6056B/EC0-Q170/I7-
7700/4G/1T/250W
|
IPC-6056 rack-mounted 4U whole machine/EC0-Q170 motherboard/I7-7700 CPU/4G memory/1T hard disk/ ATX 250W power supply/external IO interface: 2 USB2.0 at the front. 2 USB2.0 at the rear. /4 USB3.0/5 COM (expandable to 6), COM1 supports RS232\RS422\RS485/VGA+HDMI+DVI/1 8 bit GPIO/2 network ports/1 PS2/ 1 set of audio Interface/1 LPT/2 PCI slots/2 PCIE×4 slots/2 PCIE×16 slots (X8 signal)/ 1 PCIE×4 slot (X1 signal) |
|
IPC-6056B/EC0-1818/I5-
6500/4G/1T /250W
|
IPC-6056 rack-mounted 4U whole machine/ EC0-1818 motherboard/I5-6500 CPU/ /4G memory/1T hard disk/ ATX 250W power supply/Exposed interface: 2 USB2.0 at the front. 4 USB3.0/6 at the rear COM, COM1, COM2 support RS232\RS422\RS485/VGA+DVI-D+HDMI/1 8 bit GPIO/2 Ethernet ports/1 PS2/1 audio interface/1 LPT/ 1 PCIE×16 slot/3 PCIE×4 slots (X1 signal)/3 PCI slots |
|
IPC-6056B/EC0-1817V2NA/
I5-4570/4G/1T /250W
|
IPC-6056 rack-mounted 4U whole machine/ EC0-1817V2NA motherboard/I5-4570 CPU/ /4G memory/1T hard disk/ATX 250W power supply/Exposed interface: 2 USB2.0 at the front. 2 USB2.0./ at the rear 2 USB3.0/6 COM, COM1, COM2 support RS232\RS422\RS485/VGA+DVI-D/ 1 8 bit GPIO/2 Ethernet ports/1 PS2/1 audio interface /1 LPT/ 1 PCIE×16 slot/2 PCIE×4 slot (X1 signal)/4 PCI slot |
|
IPC-6056B/EC0-1816V2NA/
I5-2400/4G/1T /250W
|
IPC-6056 rack-mounted 4U whole machine/ EC0-1816V2NA mainboard/I5-2400 CPU/ /4G memory/1T hard disk/ATX 250W power supply/Exposed interface: 2 USB2.0 at the front. 4 USB2.0 at the rear. / 6 COM, COM1, COM2 support RS232\RS422\RS485/VGA+DVI-D/2 Ethernet ports/1 PS2/1 audio interface/1 LPT/1 PCIE×16 slot/1 PCIE×4 slot (X1 signal)/5 PCI slots |
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Categories
New Products
P15RW-J1 is a 15 inch fanless industrial tablet computer Read More
M30 is a fanless, low-power, high-performance embedded machine Read More
IPC-6056B is a seven-slot compact wall hanging machine On GeForce RTX™ 3090 Ti GAMING 24G graphics card Read More
The M80 series is a fanless, low-power, high-entry machine Read More
M75 is a fanless, low-power, high-performance embedded machine Read More
IPC-6010 is a 19″1U standard rack-mounted complete machine. The machine has a compact structure and high integration. The length and width are the standard 1U rack size, and the depth does not exceed 300mm, which saves more space for users. The industrial computer adopts integrated rear Window design, coordinated appearance, can be installed with MINI-ATX or Micro-ATX series motherboards, with high performance and cost-effective features, and still has good expansion performance in a small size; the chassis adopts a miniaturized design, which can meet the needs of installation in a small space Required. Mainly used in data transfer stations, central control equipment or testing and recording equipment, etc.

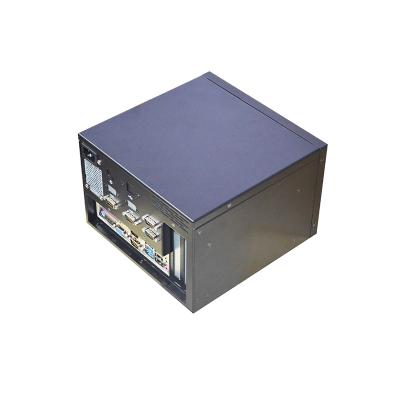

IPC-630F is a small and compact wall hanging machine, which can be installed with MINI-ATX or Micro-ATX series motherboards. It has a compact size. It has high performance and cost-effective features. It can directly expand the full height and half length by using the expansion slot on the board. Application, no adapter board is needed, and it still has good expansion performance in a small size; the chassis adopts a miniaturized design, which can meet the needs of installation in a small space. Main application areas: highways. Self-service terminals. Automated production and testing.

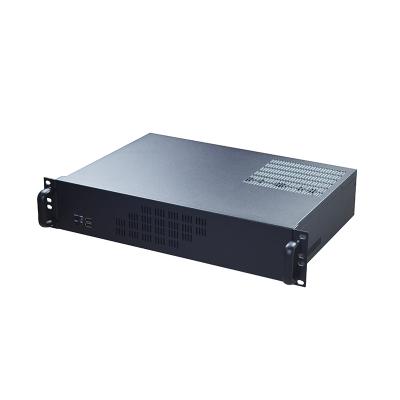

IPC-6020 is a 19″2U standard rack-mounted machine with compact structure and high integration. The length and width are the standard 2U rack size, and the depth does not exceed 300mm, which saves more space for users. It can be installed with MINI-ATX or The Micro-ATX series motherboards have the characteristics of high performance and cost-effectiveness, and still have good expansion performance in a small size; the chassis adopts a miniaturized design to meet the needs of installation in a small space. Mainly used in data transfer stations and central control equipment Or testing and recording equipment, etc.

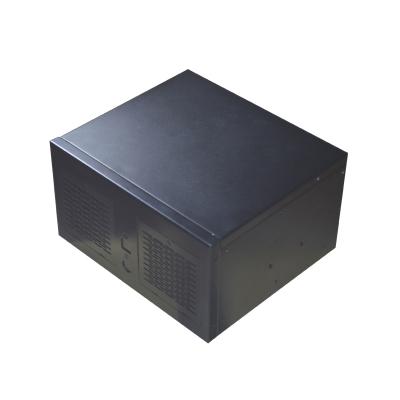

IPC-6030 is a small and compact wall hanging machine, which can be installed with MINI-ATX or Micro-ATX series motherboards. It has a compact size. High performance and cost-effective features. It can directly expand the full height and half length by using the expansion slot on the board. Application, no adapter board is needed, and it has good expansion performance in a small size; the chassis adopts a miniaturized design, which can meet the needs of installation in a small space. Main application areas: highways. Self-service terminals. Automated production and testing.
