Use GA-H110M-S2PH motherboard, support Intel 6th and 7th generation LGA 1151 platform Core i3/i5/i7 processors
Item No.:
IPC20200010Product origin:
ChinaColor:
WhiteShipping port:
guangzhouLead Time:
71.Use GA-H110M-S2PH motherboard, support Intel 6th and 7th generation LGA 1151 platform Core i3/i5/i7 processors
2.Compatible with most graphics card installations on the market, the longest card size can reach 270MM
3.Compatible with ATX standard power supply, compatible with standard size hard disk installation
4.Small size, more expansion, can be configured with different function motherboards according to user needs
5.Compatible with motherboard H61/H81/H110 platform Micro-ATX/Mini-ATX series motherboard
|
Project |
Description |
|
Adapter motherboard |
Compatible with motherboard H61/H81/H110 platform Micro-ATX/Mini-ATX series motherboard |
|
With memory |
Provides 2 240Pin standard DDR III 1333/1600MHz DIMM memory slots, supports a single memory with a maximum capacity of 8GB, and a total of 16GB |
|
I/O interface |

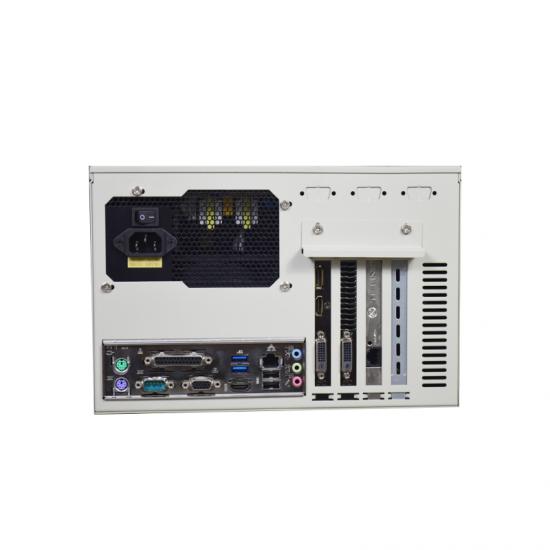

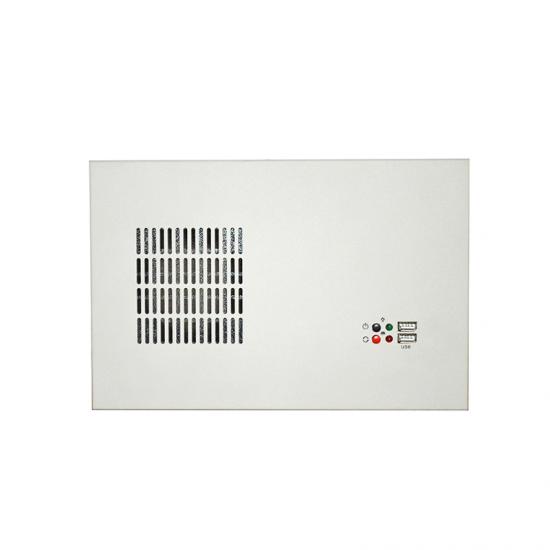

Front panel with power switch. Reset switch. Indicator light. 2 USB2.0 ports, other IO ports Rear When matched with GA-H110M-S2PH motherboard, the rear IO interface is as follows: 2 USB2.0 ports 2 USB3.0 ports 1 COM port (this board can expand 1 more COM port) Motherboard display interface: VGA+HDMI Graphics display interface: 2 DVI-D interfaces, 2 HDMI interfaces 2 network ports 1 PS/2 keyboard/mouse interface; 1 AUDIO: MIC-IN/LINE-IN/LINE-OUT; |
|
Memory |
1 3.5 inch /1 2.5 inch hard drive bay |
|
Bus extension |
The chassis has 4 slots. When matched with the motherboard GA-H110M-S2PH, 2 PCI+1 PCIE×1+1 PCIE×16 |
|
Operating temperature |
0℃～ +60℃, 5% ～ 90% (non-condensing state) |
|
Storage environment |
-20℃～ +60℃, 5%～90% (non-condensing state) |
|
Power supply |
Standard ATX power supply |
|
Dimensions |
(4 slots) width 290mm × depth 290mm × height 194mm |
|
Model |
Description |
|
IPC-6052/EC9-1501-
ZX/C4580/4G/120G SSD/250W |
Compact wall-mounted machine/EC9-1501-ZX motherboard/C4580/1.8G clocked quad-core processor/4G memory/120G solid state drive/ATX 250W power supply/exposed interfaces: 2 intel network ports, 5 serial ports (via Pins can lead to 5 more serial ports), VGA+DVI-D (supporting independent dual display), 6 USBs, front 2 and rear 4 (including 2 USB3.0, 4 USB2.0, and 3 can be drawn through the pins USB), 1 audio combination, 1 PS/2 keyboard and mouse interface, 1 LPT pin, 1 PCIE x16 (actual speed x8), 1 PCIE x4, 2 PCI.
|
|
IPC-6052/GA-H110M-
S2PH/G3900/4G/120G SSD/250W |
Compact wall-mounted machine/GA-H110M-S2PH motherboard/G3900/2.8G clocked dual-core dual-thread/4G memory/120G solid state drive/ATX250W power supply/exposed interface: 1 network port, 1 RS232 serial port (via pin 1 serial port can be led out), VGA+HDMI (supporting independent dual display), 6 USB front 2 rear 4 (of which 2 USB3.0, 4 USB2.0, 4 more USB can be led out through pins), 1 audio combination, 1 PS/2 keyboard and mouse interface, 1 LPT, 1 PCIE x16, 1 PCIE x1, 2 PCI. |
