Use motherboard H61M10 motherboard, support Intel second and third generation LGA 1155 platform Core i3/i5/i7 processors
Item No.:
IPC2020009Product origin:
ChinaColor:
WhiteShipping port:
guangzhouLead Time:
71.Use motherboard H61M10 motherboard, support Intel second and third generation LGA 1155 platform Core i3/i5/i7 processors

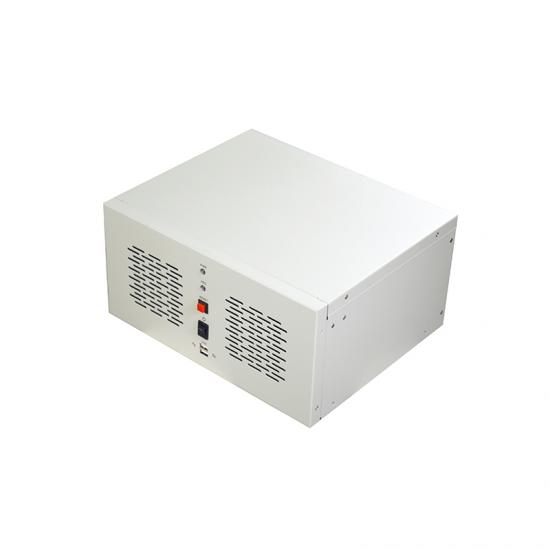

2.High-strength steel sheet metal body design, excellent heat dissipation performance, suitable for use in small and complex industrial sites, safe and reliable
3.5 standard COM ports and 8 USB ports to meet multiple expansion needs
4.Lightweight, flexible integration, easy installation
5.Support customization to meet different performance requirements
|
Project |
Description |
|
Adapter motherboard |
H61/H81/H110 platform Mini-ATX series motherboard |
|
With memory |
Provides 2 240Pin standard DDR III 1333/1600MHz DIMM memory slots, supports a single memory with a maximum capacity of 8GB, and a total of 16GB |
|

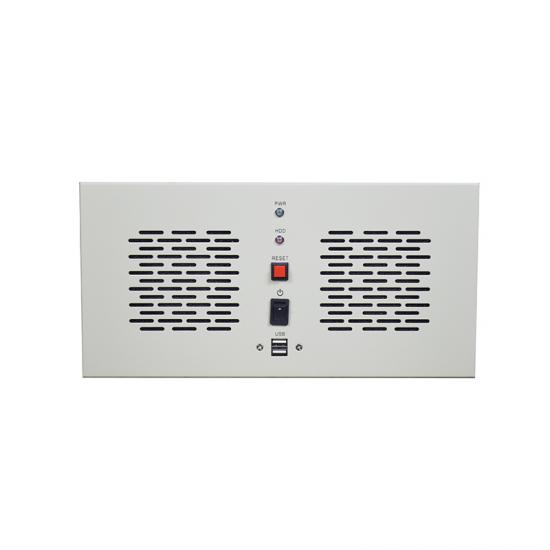

Front panel I/O interface |
1 power switch .1 reset switch .1 power indicator light .1 hard disk indicator light .2 USB2.0 ports |
|

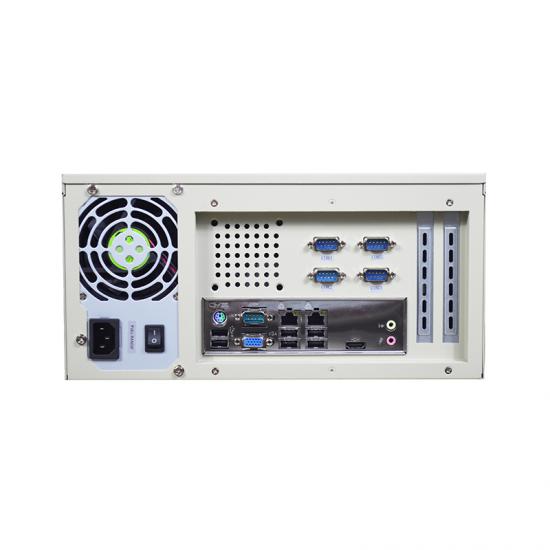

Rear panel I/O interface |
6 USB2.0 ports 5 COM ports with RS232 function (expand 4COM through the slot) Display interface: VGA+HDMI 2 network ports 1 PS/2 keyboard and mouse interface; 1 AUDIO: MIC-IN/LINE-OUT |
|
Memory |
2 2.5-inch hard drive bays. 1 3.5-inch hard drive bay |
|
Bus extension |
This board has 1 PCIE×16, and the chassis can be expanded by 2 slots |
|
Operating temperature |
0℃～ +60℃, 5% ～ 90% (non-condensing state) |
|
Storage environment |
-20℃～ +60℃, 5%～90% (non-condensing state) |
|
Power supply |
Standard ATX power supply |
|
Dimensions |
(2 slots) depth 260mm * width * 320mm * height 160mm |
|
Model |
Description |
|
IPC-6042/H61M10/
G2120/4G/120G SSD/200W |
Compact wall-mounted machine/H61M10 motherboard/G2120/3.1G main frequency dual-core dual-thread/4G memory/120G solid state drive/standard ATX200W power supply/exposed interface: 2 network ports, 5 RS232 serial ports, VGA+HDMI (support independent Dual display), 8 USBs, front 2 and rear 6 (2 USBs can be led out through the pins), 1 audio combination, 1 PS/2 2-in-1 mouse and keyboard interface, 1 LPT pin, 1 PCIE x16 . |
|
IPC-6042/H81M12/
G1820/4G/120G SSD/200W |
Compact wall-mounted machine/H81M12 motherboard/G1820/2.7G dual-core dual-thread/4G memory/120G solid state drive/standard ATX200W power supply/exposed interfaces: 2 network ports, 5 RS232 serial ports, VGA+HDMI (support independent Dual display), 8 USBs, front 2 and rear 6 (of which 2 USB3.0, 6 USB2.0, 4 USBs can be drawn out through pins), 1 audio combination, 1 PS/2 2-in-1 button Mouse interface, 1 LPT. |
