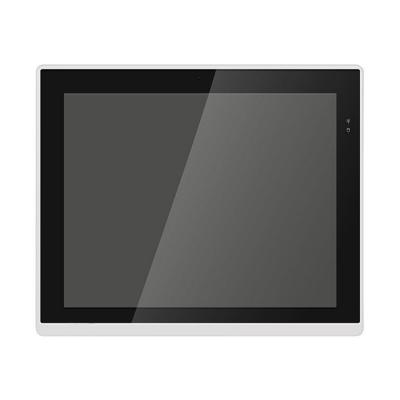

Product Overview: P15RW-J1 is a 15 inch fanless industrial tablet computer, which adopts galvanized sheet bending technology, independent mold opening, and the front panel is produced by large CNC precision machining; Ergonomic design, slim and beautiful, streamlined shape, and excellent craftsmanship. This product is designed based on the Intel Lingdong series 10nm processing platform Elkhart Lake and uses processors such as J6412/J6413/N95/N97; Industrial grade LCD display screen, with characteristics such as high brightness, high contrast, and long lifespan; The touch screen adopts a high-temperature process five wire capacitive type, which does not drift, responds quickly, has high accuracy, and ensures a high reliability operating environment. It has good dust prevention, heat dissipation, and anti vibration performance. Industrial tablets are widely used in industrial field environments such as intelligent transportation, industrial automation process control, intelligent power control, CNC equipment manufacturing, environmental monitoring, pharmaceutical equipment, food packaging machinery, machine vision inspection, wind power monitoring, solar crystal pulling furnaces, tire vulcanizing machines, etc.
Item No.:
P15RW-J1Product origin:
中国广州Lead Time:
14天| project |
describe
|
|
Display performance |
Display size 15 inches 4:3 front screen
Maximum resolution 1024 × 768 Brightness 350 cd/m2 Contrast ratio 1000:1 |
| touch screen | Capacitive touch screen |
|
system configuration |
Processor J6412/J6413/N95/N97
Chipset SOC Memory supports single DDR4-3200MT/s notebook memory, up to 32GB Store 1 M.2 2242/80 M-Key slot (SATA3.0) |
|
I/O interface |
4 x RJ45 Gigabit Ethernet ports LAN1-3 support POE and comply with 802.3af standard
(maximum single port 15.4W); |
| Expansion bus |
1 MINI-PCIE slot, supporting 4G
1 M.2 2230 E-Key, supporting WIFI |
| weight | 5.30kg |
| Installation method | Embedded, wall mounted, desktop, VESA |
| operating system | Windows 10/Linux |
| External dimensions | 395mm (length) * 91mm (height) * 312mm (width) |
| work environment |
Working temperature/humidity requirements: 0-60 ℃, 10% -90% without condensation
Non working temperature/humidity requirements: -25~75 ℃, 5%~95% non condensing |
