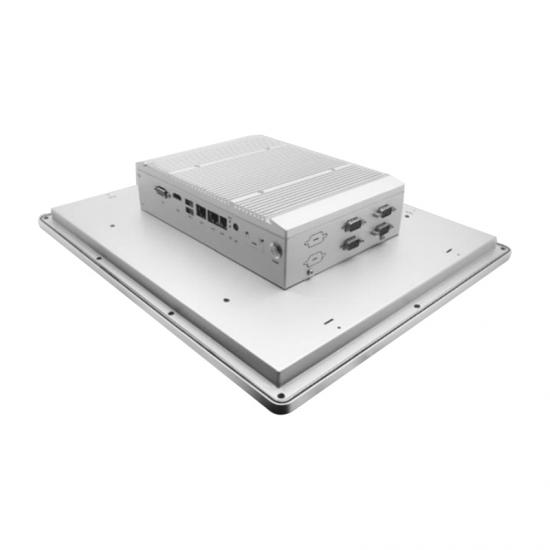

17' Industrial Tablet PC, All-in-one Board sticker Intel3965U/i5-7200U/i7-7500U CPU
Item No.:
PPC2020003Product origin:
ChinaColor:
WhiteShipping port:
guangzhouLead Time:
71.Board sticker Intel3965U/i5-7200U/i7-7500U CPU
2.One SODIMM supports up to 16GB DDR4 memory
3.The modular design of the display panel is easy to upgrade the system
4.The display panel supports capacitive screen or resistive touch screen (optional)
5.2 mini-PCIe (one default mSATA)
6.Front panel protection grade IP65
7.The front panel reserves the Wi-Fi/NFC module installation position
8.3 Intel Gigabit Ethernet ports
9.Customizable LOGO
Product number |
PPC-1701" |
product type |
17 inch industrial tablet |
processor |
The main control board adopts board sticker Intel3965U or i5-7200U or i7-7500U CPU |
chipset |
Intel® SKL/KBL-U SOC |
RAM |
Support 1 DDR4 SO-DIMM memory slot, maximum 16GB |
Display and touch control |
17" TFT LED screen, display resolution: 1280 x 1024 Brightness: 250cd/m2, contrast ratio: 1000:1 Support projected capacitive touch screen (optional 5-wire resistive touch screen) |
Display interface |
Scalable output to 1*VGA interface, 1*HDMI interface, maximum resolution 1920×2000 |
storage |
Support one 2.5" SATA HDD/SSD Bays, support one mSATA SSD expansion |
The internet |
3 Intel i211 Gigabit Ethernet ports |
Audio |
Support Mic-in, Spk-out |
USB |
2 USB3.0, 4 onboard USB2.0 pins |
Serial port |
COM1 supports RS232/422/485, COM2~4 supports full-function RS232 |
Wifi/NFC |
The front panel presets Wifi/4G/5G antenna installation position and NFC module expansion position |
camera |
The front panel reserves the AI camera installation position and supports artificial intelligence module expansion (optional) |
Digital I/O |
16-bit digital I/O, provide power and ground, +5V level |
LPC expansion interface |
Provide 1 LPC local bus interface, expandable serial port module, etc. |
SM bus/I²C interface |
1 SM bus expansion interface (integrated in LPC interface) |
power supply |
Support 12 ~ 24V DC wide voltage input, terminal block or DC-Jack input through DC power supply |
Expansion bus |
1 Mini-PCIe (with SIM card holder supporting 4G module), 1 Mini PCIe and mSATA Co-Lay (default mSATA) |
Operating temperature Humidity requirements |
0℃~55℃, 10%~90% non-condensing |
Non-operating temperature Humidity requirements |
-20℃~60℃, 5%~95% non-condensing |
