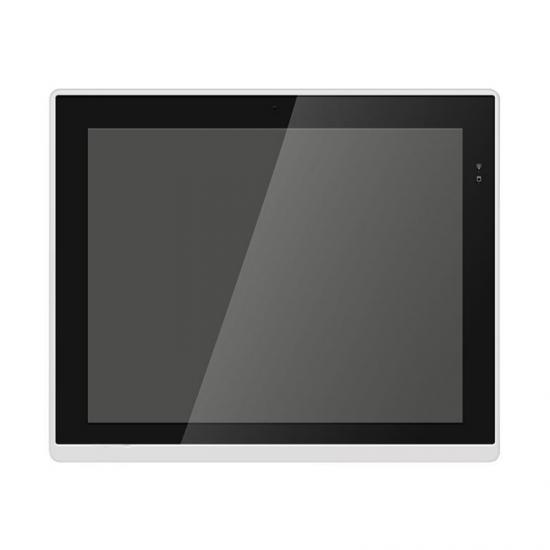

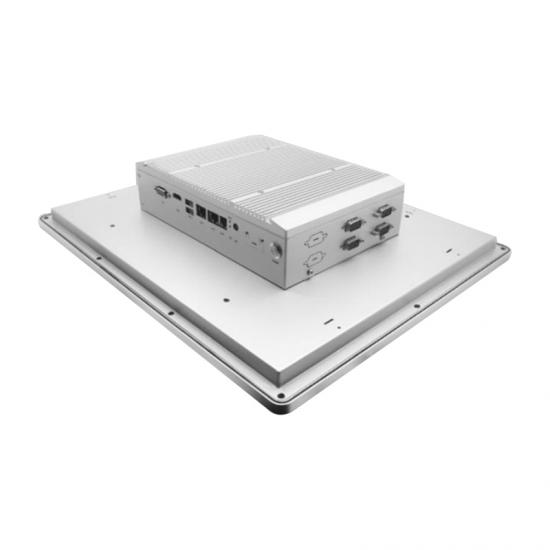

12' inch industrial touch screen panel PC PPC-1201

12' inch industrial touch screen panel PC PPC-1201

12' Industrial Tablet PC, All-in-one Board sticker Intel3965U/i5-7200U/i7-7500U CPU

  • Item No.:

    PPC2020001
  • Product origin:

    China
  • Color:

    White
  • Shipping port:

    guangzhou
  • Lead Time:

    7
  • Product Details

  • Product specifications

  • Ordering Information

1.Board sticker Intel3965U/i5-7200U/i7-7500U CPU

2.One SODIMM supports up to 16GB DDR4 memory

3.The modular design of the display panel is easy to upgrade the system

4.The display panel supports capacitive screen or resistive touch screen (optional)

5.2 mini-PCIe (one default mSATA)

6.Front panel protection grade IP65

7.The front panel reserves the Wi-Fi/NFC module installation position

8.3 Intel Gigabit Ethernet ports

9.Customizable LOGO

Product number
PPC-1201"
product type
12 inch industrial tablet
processor
The main control board adopts board sticker Intel3965U or i5-7200U or i7-7500U CPU
chipset
Intel® SKL/KBL-U SOC
RAM
Support 1 DDR4 SO-DIMM memory slot, maximum 16GB
Display and touch control
12" TFT LED screen, display resolution: 1280 x 1024
Brightness: 250cd/m2, contrast ratio: 1000:1
Support projected capacitive touch screen (optional 5-wire resistive touch screen)
Display interface
Scalable output to 1*VGA interface, 1*HDMI interface, maximum resolution 1920×2000
storage
Support one 2.5" SATA HDD/SSD Bays, support one mSATA SSD expansion
The internet
3 Intel i211 Gigabit Ethernet ports
Audio
Support Mic-in, Spk-out
USB
2 USB3.0, 4 onboard USB2.0 pins
Serial port
COM1 supports RS232/422/485, COM2~4 supports full-function RS232
Wifi/NFC
The front panel presets Wifi/4G/5G antenna installation position and NFC module expansion position
camera
The front panel reserves the AI camera installation position and supports artificial intelligence module expansion (optional)
Digital I/O
16-bit digital I/O, provide power and ground, +5V level
LPC expansion interface
Provide 1 LPC local bus interface, expandable serial port module, etc.
SM bus/I²C interface
1 SM bus expansion interface (integrated in LPC interface)
power supply
Support 12 ~ 24V DC wide voltage input, terminal block or DC-Jack input through DC power supply
Expansion bus
1 Mini-PCIe (with SIM card holder supporting 4G module),
1 Mini PCIe and mSATA Co-Lay (default mSATA)
Operating temperature
Humidity requirements
0℃~55℃, 10%~90% non-condensing
Non-operating temperature
  Humidity requirements
-20℃~60℃, 5%~95% non-condensing
