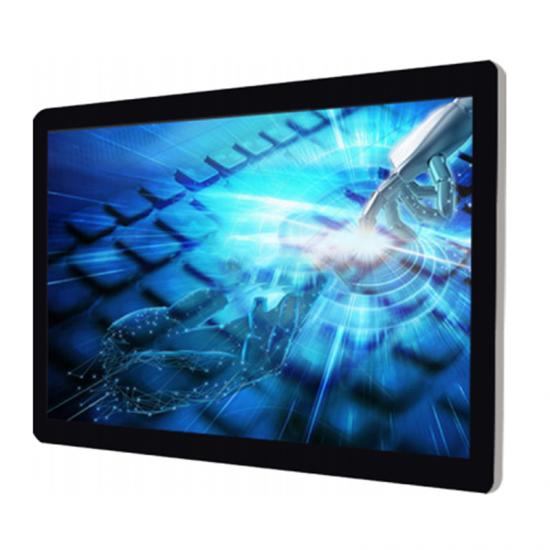

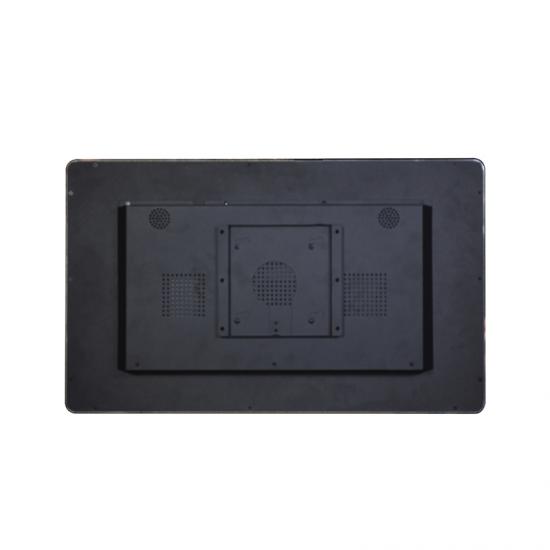

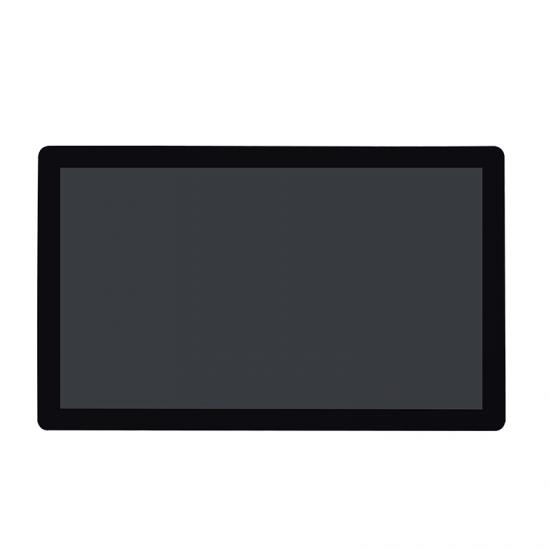

23.6 inch PPC industrial tablet Android system
Item No.:
PPC2020004Product origin:
ChinaColor:
BlackShipping port:
guangzhouLead Time:
71.24-hour operation capacity
2.Flat glass panel design
3.Highly sensitive capacitive touch screen
4.Compressive ability of metal body
5.1080P HD display
6.Rich interface expansion
|
project |
description |
|
Display performance |
Display size 23.6 inch 16:9 widescreen Maximum resolution 1920*1080 Brightness 250cd/m2 Contrast 1000:1 |
|
Capacitive touch screen |
Full plane multi-touch |
|
System Configuration |
processor ARM Cortex-A17 Quad Core SOC (RK3288/W)
Graphics card Mali-T764 GPU
RAM Onboard 2GB DDR3L, 4GB (optional)
store Onboard 16GB EMMC, 8GB/32GB/64GB (optional) wireless AP6236(802.11B/G/N+BT4.2) WIFI+BT module |
|
I/O interface |
1 x DCIN, 5.5/2.5mm, 12V 1 x RJ45, 100M 1 x Recover 1 x HDMI2.0 1 x TF, maximum support 64G 2 x USB2.0 Type-A 1 x LINE_OUT, 3.5mm |
|
Built-in interface |
1 x 4pin DC IN pin 1 x 6pin GPIO pin 1 x 6pin JLED pin 1 x ANT 1 x SIM card 6 x 4pin COM pins (RS232) 1 x 6pin COM pin (TTL) 1 x 20pin EDP pin 1 x 30pin LVDS pin 3 x 9pin USB pins 2 x 4pin USB pins 1 x 2pin Power ON pin 1 x 2pin MIC pin 1 x 4pin SPK pin 1 x 6pin JTP pin 1 x 4pin MICE pin 1 x 3pin MUART pin |
|
Audio |
I2S Audio IC |
|
The internet |
10/100M wired network |
|
operating system |
Android7.1 (standard) |
|
Dimensions |
575mm (width) *347mm (height) *66mm (depth) |
|
working environment |
Working temperature: -5 ～ 50℃ Storage temperature: -20 ～ 70℃ Working humidity: 10% to 90%, non-condensing |
