English

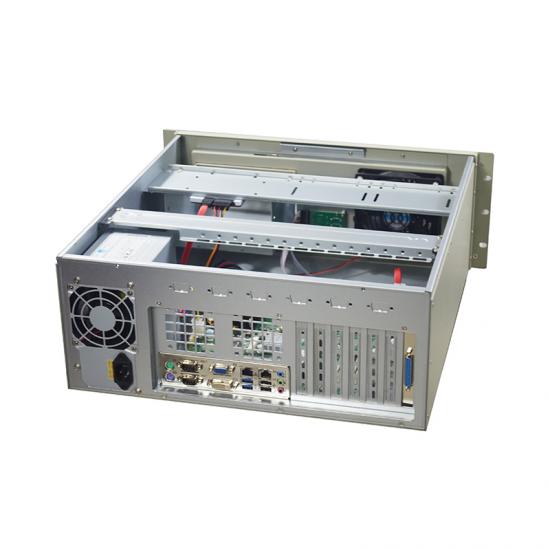

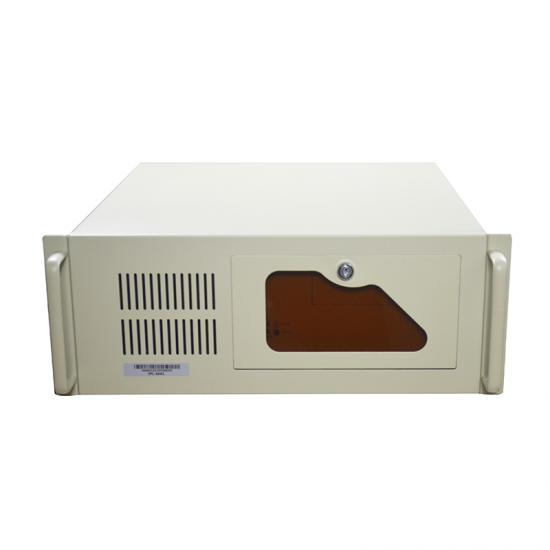

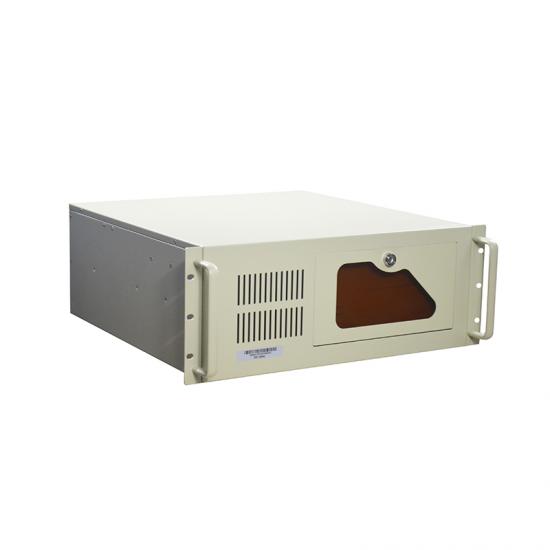

IPC-6041 is a 4U rackmount chassis. The chassis is made of high-quality steel plate. The height of the bead can be adjusted to meet the height of PCIE and PCI expansion cards. It is perfectly compatible with various industries such as ATX, Micro-ATX and MINI-ATX Motherboard; can install a 5.25' CD-ROM drive, 2-8 3.5-inch hard drives; reasonable structure, advanced design; broad market space, can be widely used in communications, networks, finance, electricity, transportation, military , Industrial automation and other fields.
Item No.:
IPC2020007Product origin:
ChinaColor:
WhiteShipping port:
guangzhouLead Time:
71.Perfectly compatible with ATX, Micro-ATX, Mini-ITX industrial motherboards
2.Using high-quality 1.2mm SGCC environmentally friendly steel, high temperature spraying is wear-resistant and does not drop the paint, sturdy and durable, corrosion-resistant, and the paint surface is stain-resistant and fingerprint-resistant
3.Compatible with 2 3.5" hard disk bays and 1 5.25" optical drive bay
4.Standard configuration with 1 12025 fan, good cooling effect, quiet and durable
5.Provides 7 full-height PCI/PCIE expansion slots with pressure strips and fixing frames
6.Provide optional COM port for knockout

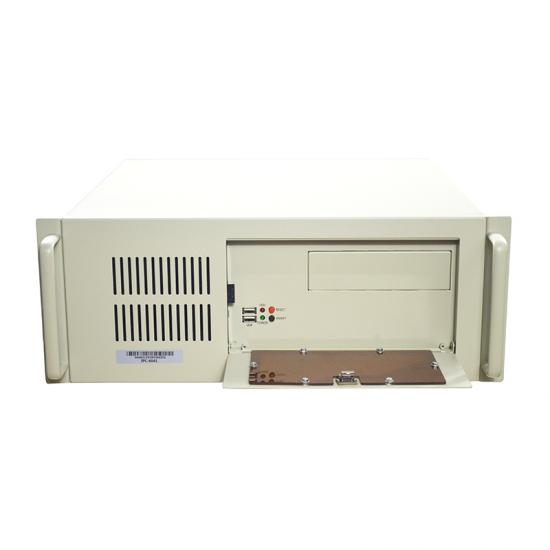

7.The power switch, reset switch, power indicator, and hard drive indicator are set in the lockable and see-through front door to effectively prevent unauthorized operations
8.Compatible with 250W, 300W, 400W AC and DC industrial power supplies
9.Can be widely used in industrial sites with a lot of dust, oil, and vibration
|
Project |
Description |
|
Adapter motherboard |
Compatible with standard size motherboards such as Zhaoxin.intel and other chip platforms |
|
With memory |
According to the motherboard chip platform, it is compatible with DDR3/DDR4 memory, supports a single memory with a maximum capacity of 8/16GB, and a total of 16/32GB |
|
Front panel I/O interface |
1 power switch .1 reset switch .1 power indicator light .1 hard disk indicator light .2 USB2.0 ports |
|
Rear panel I/O interface |
When matched with Zhaoxin motherboard EC9-1501-ZX, the rear IO interface is as follows: 2 USB2.0 ports, 2 USB3.0 ports (5 USB ports can be drawn out through the pins) 2 COM ports, COM1, COM2 support RS232\RS422\RS485 (8 more can be drawn through the pins COM) Display interface: VGA+DVI-D 2 network ports 1 PS/2 keyboard/mouse interface; 1 AUDIO: MIC-IN/LINE-IN/LINE-OUT
4 USB2.0 ports, 2 USB3.0 ports (4 USB ports can be drawn out through the pins) 1 COM port, COM1 supports RS232\RS422\RS485 (5 COM ports can be led out through the pins) Display interface: VGA+DVI-D+HDMI 2 network ports 1 PS/2 2-in-1 keyboard and mouse interface 1 AUDIO: MIC-IN/LINE-OUT |
|
Memory |
2 2.5/3.5" hard drive bays 1 5.25" optical drive bay |
|
Bus extension |
4-7 full-height PCI/PCIE expansion slots |
|
Operating temperature |
0℃～ +60℃, 5% ～ 90% (non-condensing state) |
|
Storage environment |
-20℃～ +60℃, 5%～90% (non-condensing state) |
|
Power supply |
Standard ATX power supply |
|
Dimensions |
450mm *177mm *430mm (excluding ears and handles) |
|
Model |
Description |
|
IPC-6041/EC9-1501- ZX/C4580/2G/120G SSD/250W |
4U, 19″standard rack-mounted machine/ EC9-1501-ZX motherboard/C4580/1.8G clocked quad-core processor/2G RAM/ 120G solid state drive/ATX 250W power supply/No optical drive/Exposed interfaces: 2 intel network ports, 8 serial ports (2 more serial ports can be led out through the pins), VGA+DVI-D (supporting independent dual display), 6 USB front 2 rear 4 (including 2 USB3.0, 4 USB2.0, through plug The pins can lead to 3 USB), 1 audio combination, 1 PS/2 keyboard and mouse interface, 1 LPT pin, 1 PCIE x16 (actual speed x8), 1 PCIE x4, 2 PCI. |
|
IPC-6041/H81-6COM/ I5-4570/4G/ 1T/250W |
4U, 19″ standard rack-mounted machine/H81-6COM motherboard/I5-4570/3.2G main frequency quad-core four-thread/ 4G memory/1T hard disk/ATX 250W power supply/no optical drive/exposed interface: 2 intel network ports, 6 Two serial ports (COM1 is RS-232/422/485 adjustable), VGA+DVI D+HDMI (supports independent dual display), 8 USB front 2 rear 6 (including 2 USB3.0, 6 USB2.0 , Through the pins can lead to 2 USB), 1 audio combination, 1 PS/2 two-in-one mouse and keyboard interface, 1 LPT pin, 1 PCIE x16, 1 PCIE x1, 5 PCI. |
|
IPC-6041/EC0-1817- 6COM/I5-4570/4G/1T /250W |
4U, 19″standard rack-mounted machine/ EC0-1817-6COM motherboard/I5-4570/3.2G clocked quad-core four-thread/4G memory/1T hard disk/ATX 250W power supply/no optical drive/exposed interface: 2 intel network ports , 6 serial ports (COM1/2 is RS-232/422/485 adjustable), VGA+DVI-D (supports independent dual display), 6 USB front 2 rear 6 (including 2 USB3.0, 4 USB2 .0, 4 USBs can be led out through the pins), 1 audio combination, 1 PS/2 keyboard and mouse interface, 1 LPT pin, 1 PCIE x16, 2 PCIE x4 (x1 signals), 4 PCI. |
|
IPC-6041/ H110-6COM/I5- 6500/4G/1T/250W |
4U, 19″ standard rack-mounted machine/H110-6COM motherboard/I5-6500/3.2G clocked quad-core four-thread/4G memory /1T hard disk/ATX 250W power supply/no optical drive/exposed interface: 2 intel network ports, 6 Two serial ports (COM1 is RS-232/485 adjustable), VGA+DVI-D+HDMI (supports independent dual display), 8 USB front 2 rear 6 (of which 4 USB3.0, 4 USB2.0, through The pins can lead to 2 USB), 1 audio combination, 1 PS/2 2-in-1 mouse and keyboard interface, 1 LPT pin, 1 PCIE x16, 2 PCIE x4 (x1 signal), 4 PCI . |
|
IPC-6041/ Q170-6COM/I5- 6500/4G/1T/300W |
4U, 19″ standard rack-mounted machine/ Q170-6COM motherboard/I7-7700/3.6G clocked quad-core and eight threads/4G memory/1T hard disk/ATX 300W power supply/ no optical drive/ exposed interface: 2 intel network ports, 6 Two serial ports (COM1 is RS-232/485 adjustable), VGA+DVI-D+HDMI (supports independent three displays), 8 USB front 2 rear 6 (including 4 USB3.0, 4 USB2.0, through The pins can lead to 2 USB), 1 audio combination, 1 PS/2 two-in-one mouse and keyboard interface, 1 LPT pin, 2 PCIE x16 (x8 signal), 2 PCIE x4, 1 PCIE x4 (x1 signal), 2 PCI. |
