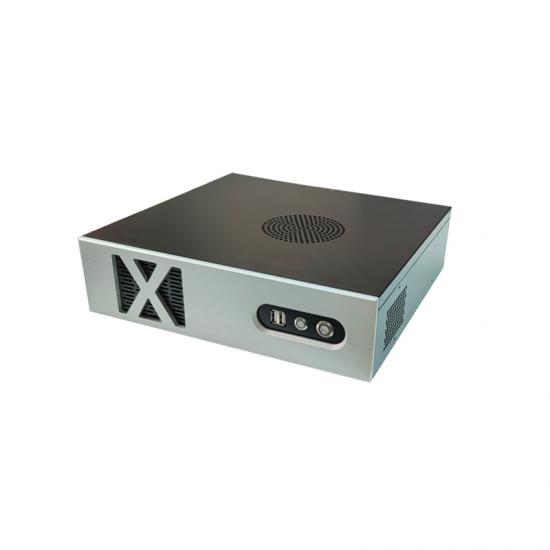

zhaoxin EC9-KX6000 motherboard, support zhaoxin KX-6000 series domestic processor CPU up to TDP 70W, default KX U6580 8 core, 2.5GHz CPU
Item No.:
IPC-6021Product origin:
ChinaColor:
white and blackShipping port:
guangzhouLead Time:
15|
Project |
Description |
|
Motherboard |
Domestic Zhaoxin EC9-KX6000 motherboard, supporting Zhaoxin KX-6000 series domestic processors CPU up to TDP 70W, the default uses KX U6580 8-core, 2.5GHz CPU |
|
RAM |
2× 288PIN DDR4 UDIMM memory slot, single 16GB maximum support 32GB according to the configured CPU support memory specifications DDR4-2133/2400/2666 |
|
Front panel I/O interface |

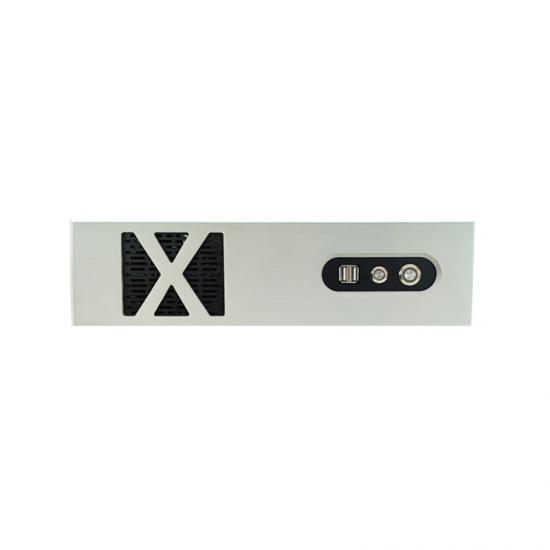

2 * USB2.0 interface 1 * Power switch button with LED light 1 * Reset switch button with LED light |
|
I/O interface |

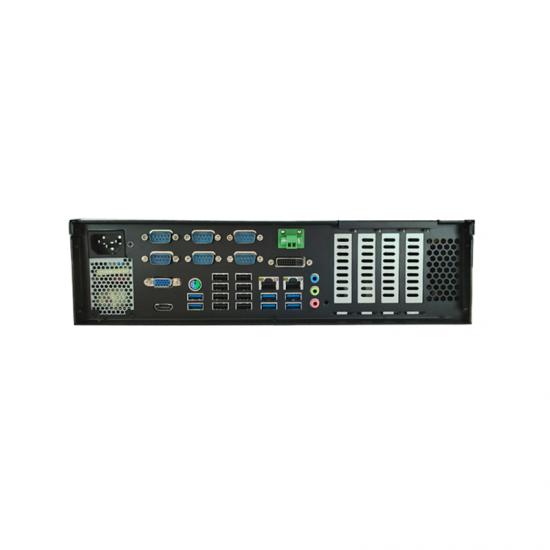

6 * COM interface 6 * USB 3.0 interface 8 * USB 2.0 interface 1 * VGA port 1 * HDMI high-definition interface 1 * DVI interface 2 * intel network port 1 * PS2 interface 1 * Audio 3 JACK port 1 * 2pin Phoenix terminal |
|
Expansion bus |
1 PCIe x16 slot (x8 signal), 1 PCIe x4, 2 PCI slots (32bit) |
|
storage |
3 SATA3.0 1 M.2 2242/2280 Key-M SSD socket supports SATA bus or Nvme SSD |
|
power supply |
1U ATX 24pin+4pin power supply, support ATX/AT switch mode |
|
Dimensions |
330mm *88mm *310mm |
|
Operating temperature |
0° C ~ 60° C (5%~90% non-condensing) |
|
storage temperature |
-20° C ~ 60° C Relative humidity: 5% ~ 90% non-condensing |
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
