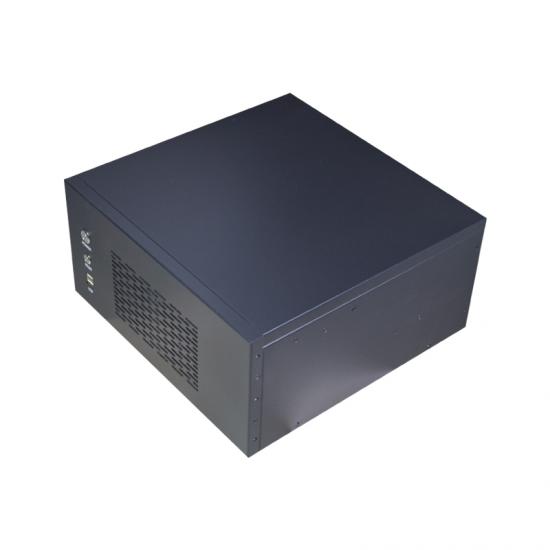

Compatible with EC0, EC9 motherboard H61/H81/H110 platform standard ATX series motherboard
Item No.:
IPC2020011Product origin:
ChinaColor:
BlackShipping port:
guangzhouLead Time:
71.All IO ports are located on the rear panel
2.Compatible with most graphics card installations on the market, the longest card size can reach 270MM
3.Compatible with ATX standard power supply, compatible with standard 2 2.5-inch hard drives 2 3.5-inch hard drives for installation
4.Small size, more expansion
5.Compatible with EC0, EC9 motherboard H61/H81/H110 platform standard ATX series motherboard
|
Project |
Description |
|
Adapter motherboard |
ECO, EC9 motherboard H61/H81/H110 platform Mini-ATX standard series motherboard |
|
Adapter CPU |
Support Ivy Bridge/Sandy Bridge core LGA1155 dual-core / quad-core processor |
|
With memory |
Provides 2 240Pin standard DDR III 1066/1333MHz DIMM memory slots, supports a single memory with a maximum capacity of 8GB, and a total of 16GB |
|
I/O interface |

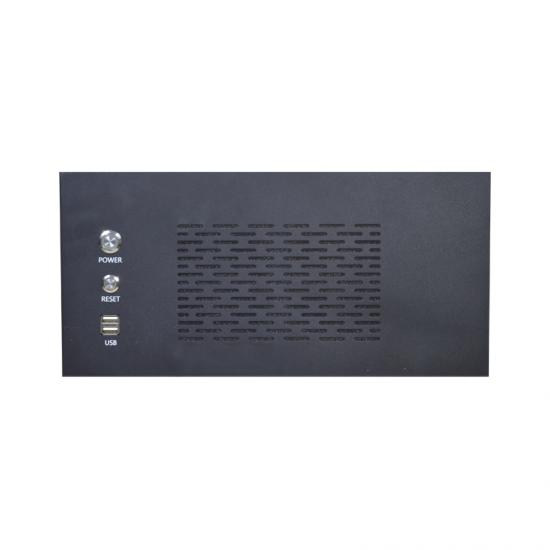

Front panel with power switch. Reset switch. Indicator light. 2 USB2.0 ports, other IO ports Rear When matched with EC0-1816V2NA(C) motherboard, the rear IO ports are as follows: 4 USB2.0 ports 6 COM ports, COM1, COM2 support RS232\RS422\RS485 Display interface: VGA+DVI-D 2 network ports 1 PS/2 keyboard/mouse interface; 1 AUDIO: MIC-IN/LINE-IN/LINE-OUT; |
|
Memory |
2 2.5-inch hard drive bays 2 3.5-inch hard drive |
|
Bus extension |
With H81-6COM, 5 PCI+1 PCIE×1+1 PCIE×16 |
|
Operating temperature |
0℃～+50℃，5%～90% (non-condensing state) |
|
Storage environment |
-20℃～ +60℃, 5%～90% (non-condensing state) |
|
Power supply |
Standard ATX power supply |
|
Dimensions |
(7 slots) 330×160×325mm(W*H*D) |
|
Model |
Description |
|
IPC-6056/EC9-1501-
ZX/C4580/2G/120G SSD/250W |
Compact wall-mounted machine/ EC9-1501-ZX motherboard/C4580/1.8G clocked quad-core processor/2G RAM/120G solid state hard drive/ATX 250W power supply/No optical drive/Exposed interfaces: 2 intel network ports, 6 Serial port (COM1/2 is RS-232/422/485 adjustable, 4 more serial ports can be drawn through the pins), VGA+DVI-D (supports independent dual display), 6 USB front 2 rear 4 (2 of them USB3.0, 4 USB2.0, 3 USBs can be led out through the pins), 1 audio combination, 1 PS/2 keyboard and mouse interface, 1 LPT pin, 1 PCIE x16 (actual speed x8) , 1 PCIE x4, 2 PCI.
|
|
IPC-6056/
Q170-6COM/I7- 7700/4G/1T/300W |
Compact wall-mounted machine/ Q170-6COM motherboard/I7-7700/3.6G clocked quad-core and eight threads/4G memory/1T hard disk/ATX 300W power supply/no optical drive/exposed interfaces: 2 intel network ports, 6 serial ports (COM1 is RS-232/485 adjustable), VGA+DVI-D+HDMI (supports independent three-display), 8 USB front 2 rear 6 (including 4 USB3.0, 4 USB2.0, through the pin Can lead out 2 USB), 1 audio combination, 1 PS/2 two-in-one mouse and keyboard interface, 1 LPT pin, 2 PCIE x16 (x8 signal), 2 PCIE x4, 1 PCIE x4 ( x1 signal), 2 PCI. |
