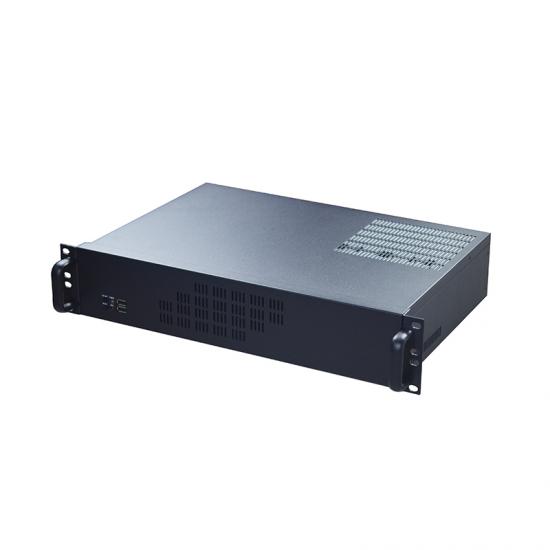

IPC-6020 is a 19″2U standard rack-mounted machine with compact structure and high integration. The length and width are the standard 2U rack size, and the depth does not exceed 300mm, which saves more space for users. It can be installed with MINI-ATX or The Micro-ATX series motherboards have the characteristics of high performance and cost-effectiveness, and still have good expansion performance in a small size; the chassis adopts a miniaturized design to meet the needs of installation in a small space. Mainly used in data transfer stations and central control equipment Or testing and recording equipment, etc.
Item No.:
IPC2020003Product origin:
ChinaColor:
BlackShipping port:
guangzhouLead Time:
71.2U Rackmount Industrial Computer
2.High performance, high scalability, high-end dual-channel rack
3.Alloy steel panel, strong reliability
4.Main applications: virtualization, medium-sized databases, HPC, hyper-converged computing
5.Standard 2U rack mount
6.It is suitable for industries that demand server performance, scalability and reliability, such as finance, transportation, telecommunications, and energy.
|
Project |
Description |
|
Adapter motherboard |
Can be used with EC9.ECS.Micro-ATX series motherboards |
|
Adapter CPU |
Matching motherboard one: EC9-1501-ZX, ZX-C4580 |
|
With memory |
With EC9-1501-ZX, support 2 DDR3 DIMM slots, 8G on a single slot, up to 16G |
|
I/O interface |

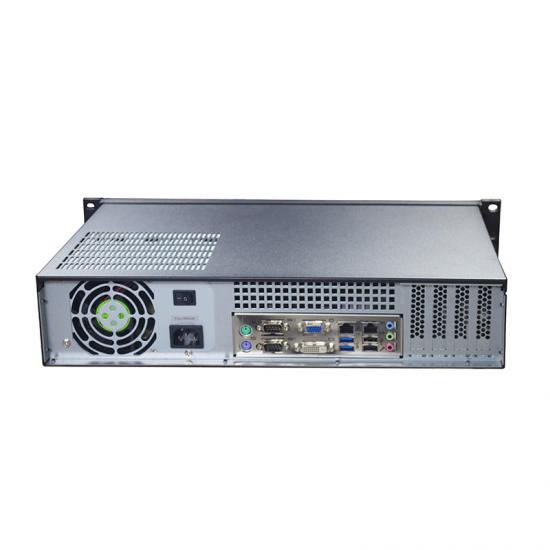

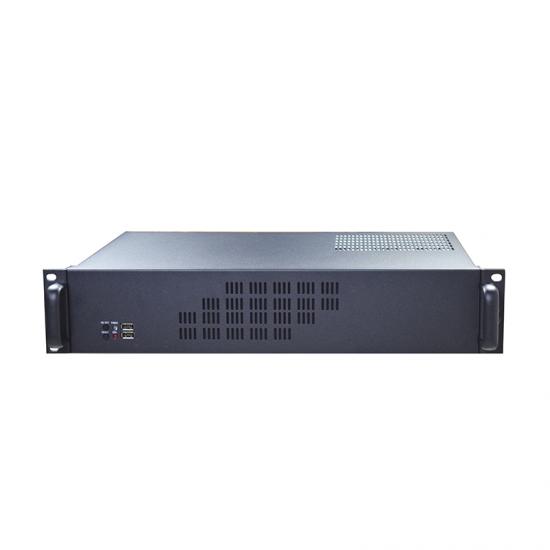

Front panel with power switch. Reset switch. Indicator light. 2 USB2.0 ports, other IO ports Rear When matched with EC9-1501-ZX, the rear IO interface is as follows: 2 USB2.0 ports, 2 USB3.0 ports 2 COM ports, COM1, COM2 support RS232\RS422\RS485 Display interface: VGA+DVI-D 2 network ports 1 PS/2 keyboard/mouse interface; 1 AUDIO: MIC-IN/LINE-IN/LINE-OUT; |
|
Memory |
2 2.5-inch hard disk vibration damping positions, 1 3.5-inch hard disk vibration damping position |
|
Bus extension |
With EC9-1501-ZX, 2 PCI+1 PCIE×4+1 PCIE×16 (actual speed×8) |
|
Operating temperature |
0℃～+50℃，5%～90% (non-condensing state) |
|
Storage environment |
-20℃～ +60℃, 5%～90% (non-condensing state) |
|
Power supply |
Standard ATX power supply |
|
Dimensions |
(4 slots) 482×89×300mm(W*H*D) |
|
Model |
Description |
|
EIS-2010/EC9-1501-
ZX/C4580/2G/120G SSD/250W |
2U rackmount machine/ EC9-1501-ZX motherboard/C4580/1.8G clocked quad-core processor/2G memory/120G solid state drive/ATX 250W power supply/Exposed interfaces: 2 intel network ports, 2 serial ports (COM1/ 2 is RS-232/422/485 adjustable), VGA+DVI-D (supports independent dual display), 6 USB front 2 rear 4 (of which 2 USB3.0, 4 USB2.0, through the pin can be Then lead out 3 USB), 1 audio combination, 1 PS/2 keyboard and mouse interface, 1 LPT pin, 1 PCIE x16 (actual speed x8), 1 PCIE x4, 2 PCI.
|
