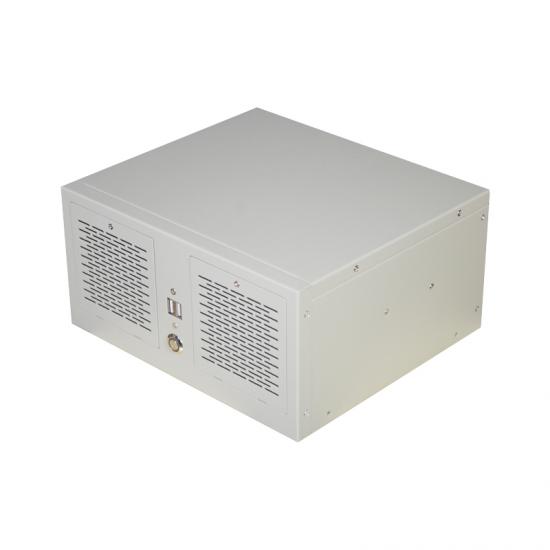

IPC-6030 is a small and compact wall hanging machine, which can be installed with MINI-ATX or Micro-ATX series motherboards. It has a compact size. High performance and cost-effective features. It can directly expand the full height and half length by using the expansion slot on the board. Application, no adapter board is needed, and it has good expansion performance in a small size; the chassis adopts a miniaturized design, which can meet the needs of installation in a small space. Main application areas: highways. Self-service terminals. Automated production and testing.
Item No.:
IPC2020004Product origin:
ChinaColor:
WhiteShipping port:
guangzhouLead Time:
71.Use GA-H110M-S2PH motherboard, support Intel 6th and 7th generation LGA 1151 platform Core i3/i5/i7 processors
2.Compatible with most graphics card installations on the market, the longest card size can reach 270MM
3.Compatible with ATX standard power supply, compatible with standard size hard disk installation
4.Small size, more expansion, can be configured with different function motherboards according to user needs
5.Compatible with motherboard H61/H81/H110 platform Micro-ATX/Mini-ATX series motherboard
|
Project |
Description |
|
Adapter motherboard |
Compatible with motherboard H61/H81/H110 platform Micro-ATX/Mini-ATX series motherboard |
|
Adapter CPU |
Matching motherboard one: GA-H110M-S2PH, CPU G3900 |
|
With memory |
Provides 2 standard DDR4 2400/2133 MHz DIMM memory slots, supports a single memory with a maximum capacity of 16GB, and a total of 32GB |
|
I/O interface |
Power switch on the front panel. Indicator light. 2 USB2.0 ports, other IO ports are located behind; When matched with GA-H110M-S2PH motherboard, the rear IO interface is as follows: 2 USB2.0 ports 2 USB3.0 ports 1 COM port (this board can expand 1 more COM port) Motherboard display interface: VGA+HDMI Expansion card interface: 4 intel gigabit network interfaces 1 network port 1 PS/2 keyboard/mouse interface; 1 AUDIO: MIC-IN/LINE-IN/LINE-OUT; |
|
Memory |
2 2.5-inch hard disk slots |
|
Bus extension |
The chassis has 4 slots. When matched with the motherboard GA-H110M-S2PH, 2 PCI+1 PCIE×1+1 PCIE×16 |
|
Operating temperature |
0℃～ +60℃, 5% ～ 90% (non-condensing state) |
|
Storage environment |
-20℃～ +60℃, 5%～90% (non-condensing state) |
|
Power supply |
Standard small 1U ATX industrial power supply |
|
Dimensions |
(4 slots) width 263mm× depth 232mm× height 130mm |
|
Model |
Description |
|
IPC-6030/H61M10/
G2120/4G/120G SSD/200W |
Compact wall-mounted machine/H61M10 motherboard/G2120/3.1G main frequency dual-core dual-thread/4G memory/120G solid state drive/small 1U ATX200W power supply/exposed interface: 2 network ports, 7 RS232 serial ports, VGA+HDMI (support Independent dual display), 8 USBs, front 2 and rear 6 (2 USBs can be led out through the pins), 1 audio combination, 1 PS/2 2-in-1 mouse and keyboard interface, 1 LPT pin, 1 PCIE x16.
|
|
IPC-6030/GA-H110M-
S2PH/G3900/4G/120G SSD/200W |
Compact wall-mounted machine/GA-H110M-S2PH mainboard/G3900/2.8G dual-core dual-threaded at main frequency/4G memory/120G solid state drive/small 1U ATX200W power supply/exposed interface: 1 network port, 1 RS232 serial port (via The pins can lead to 1 serial port), VGA+HDMI (supporting independent dual display), 6 USBs, front 2 and rear 4 (of which 2 USB3.0, 4 USB2.0, 4 USBs can be led out through the pins ), 1 audio combination, 1 PS/2 keyboard and mouse interface, 1 LPT, 1 PCIE x16, 1 PCIE x1, 2 PCI. |
