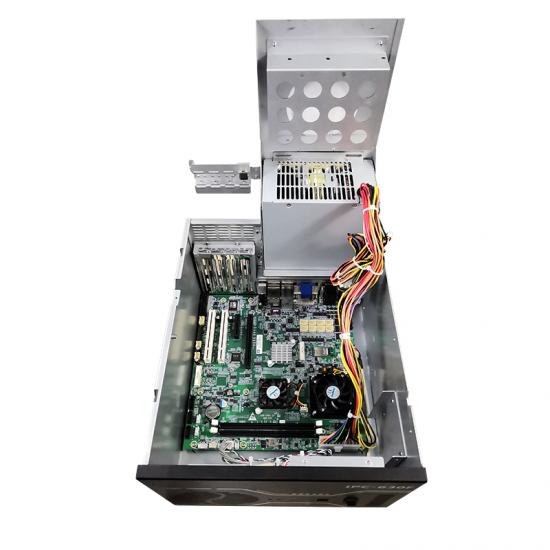

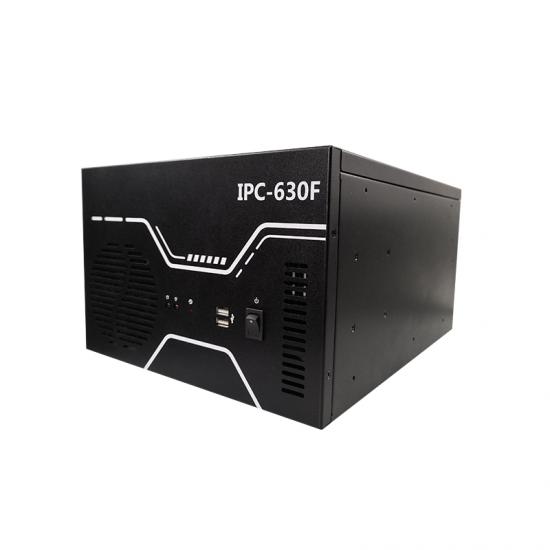

IPC-630F is a small and compact wall hanging machine, which can be installed with MINI-ATX or Micro-ATX series motherboards. It has a compact size. It has high performance and cost-effective features. It can directly expand the full height and half length by using the expansion slot on the board. Application, no adapter board is needed, and it still has good expansion performance in a small size; the chassis adopts a miniaturized design, which can meet the needs of installation in a small space. Main application areas: highways. Self-service terminals. Automated production and testing.
Item No.:
IPC2020001Product origin:
ChinaColor:
BlackShipping port:
guangzhouLead Time:
7
1.IPC-630F
2.Support EC9/ECS series motherboards to install Micro-ATX
3.Support standard ATX power supply
4.Support full-height, full-length graphics card installation
5.Small size, strong expansion performance
|
Project |
Description |
|
Adapter motherboard |
Can be used with EC9.ECS.Micro-ATX series motherboards |
|
Adapter CPU |
Matching motherboard one: EC9-1501-ZX, ZX-C4580 |
|
With memory |
With EC9-1501-ZX, support 2 DDR3 DIMM slots, 8G on a single slot, up to 16G |
|
I/O interface |

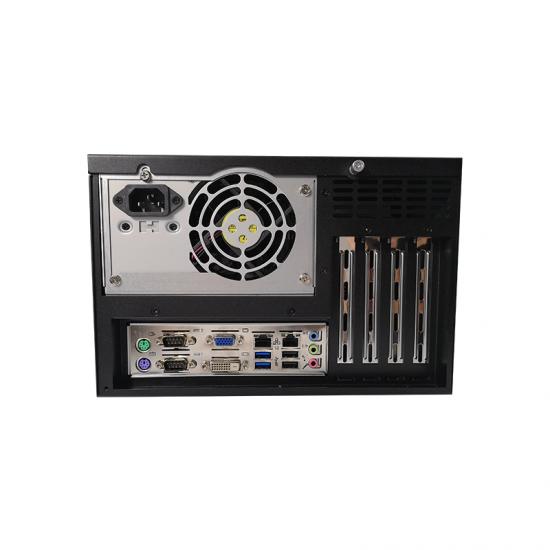

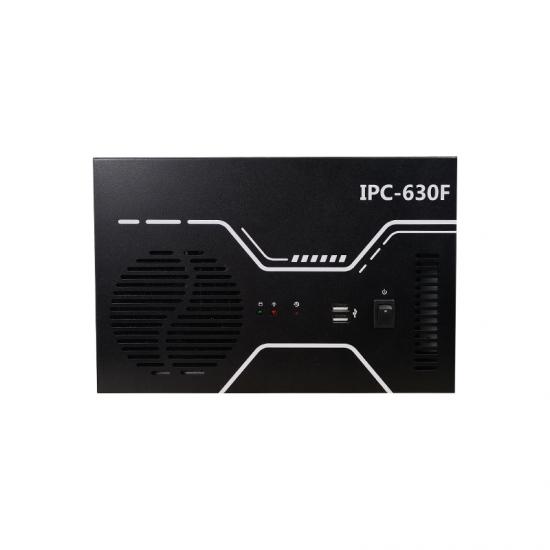

Front panel with power switch. Reset switch. Indicator light. 2 USB2.0 ports, other IO ports Rear When matched with EC9-1501-ZX, the rear IO interface is as follows: 2 USB2.0 ports, 2 USB3.0 ports 2 COM ports, COM1, COM2 support RS232\RS422\RS485 Display interface: VGA+DVI-D 2 network ports 1 PS/2 keyboard/mouse interface; 1 AUDIO: MIC-IN/LINE-IN/LINE-OUT; |
|
Memory |
1 2.5-inch hard disk vibration damping position, 1 3.5-inch hard disk vibration damping position |
|
Bus extension |
With EC9-1501-ZX, 2 PCI+1 PCIE×4+1 PCIE×16 (actual speed×8) |
|
Operating temperature |
0℃～+50℃，5%～90% (non-condensing state) |
|
Storage environment |
-20℃～ +60℃, 5%～90% (non-condensing state) |
|
Power supply |
Standard ATX power supply |
|
Dimensions |
(4 slots) 270×177×330mm(W*H*D) |
|
Model |
Description |
|
IPC-630F/
EC9-1501-ZX
C4580/2G/1T/250W
|
IPC-630F compact machine/EC9-1501-ZX motherboard/ZX-C4580CPU/2 memory/1T3.5-inch hard disk/ATX 250W power supply/ without keyboard and mouse, external IO interface: 2 front USB2.0 . Rear 2 USB2.0./2 USB3.0/2 COM, CON1, COM2 support RS232\RS422\RS485/VGA+DVI-D/2 Ethernet ports/1 PS/2/1 AUDIO :MIC IN/LINE-INLINE-OUT; Expansion: 2 PCI+1 PCIE×4+1 PCIE×16 |
|
IPC-630F/EC9-
1819V2NA/I5-
4570/4G/120G
SSD/250W
|
Compact wall-mounted complete machine/EC9-1819V2NA motherboard/I5-4570/3.2G clocked quad-core four-thread/4G memory/120 solid-state hard drive/ATX250W power supply/exposed interface: 2 intel network ports, 6 RS232 serial ports (COM1 /2 is RS-232/422/485 adjustable, and 4 more serial ports can be drawn through the pins), VGA+DVI-D (supporting independent dual display), 6 USBs, front 2 rear 4 (including 2 USB3.0 , 4 USB2.0, 4 USB can be led out through the pins), 1 audio combination, 1 PS/2 keyboard and mouse interface, 1 LPT pin, 1 PCIE x16, 1 PCIE x4 (x1 signal ), 2 PCI. |
