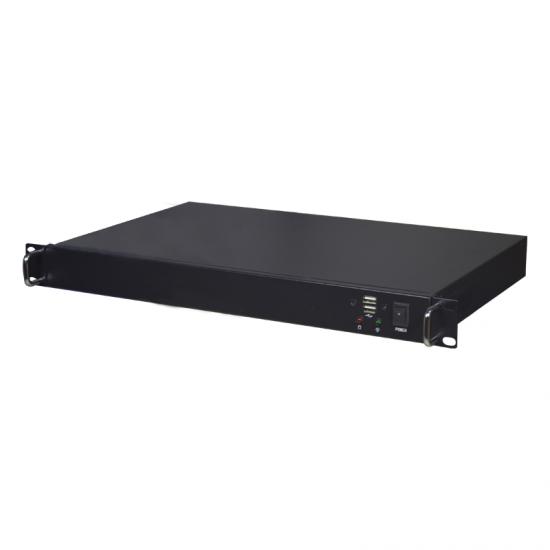

IPC-6010 is a 19″1U standard rack-mounted complete machine. The machine has a compact structure and high integration. The length and width are the standard 1U rack size, and the depth does not exceed 300mm, which saves more space for users. The industrial computer adopts integrated rear Window design, coordinated appearance, can be installed with MINI-ATX or Micro-ATX series motherboards, with high performance and cost-effective features, and still has good expansion performance in a small size; the chassis adopts a miniaturized design, which can meet the needs of installation in a small space Required. Mainly used in data transfer stations, central control equipment or testing and recording equipment, etc.
Item No.:
IPC2020002Product origin:
ChinaColor:
BlackShipping port:
guangzhouLead Time:
71.1U Rackmount Industrial Computer
2.Small size, strong expansion performance
3.High-strength alloy body design, excellent heat dissipation performance, suitable for use in small and complex industrial sites, safe and reliable
4.10 standard COM ports and 6 USB ports to meet multiple expansion needs
5.Lightweight, flexible integration, easy installation
6.It is suitable for industries with demanding reliability requirements such as highways, self-service terminals, automated production and testing.
|
Project |
Description |
|
Adapter motherboard |
Compatible with EC9.ECS.Micro-ATX.Mini-ATX series motherboards |
|
Adapter CPU |
Matching motherboard one: H61M10 motherboard, CPU G2120 |
|
With memory |
Provides 2 standard DDR III 1333/1600MHz DIMM memory slots, supports a single memory with a maximum capacity of 8GB, and a total of 16GB |
|
I/O interface |

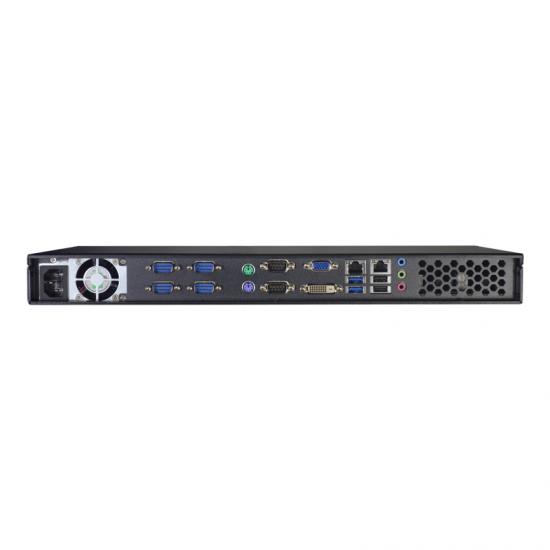

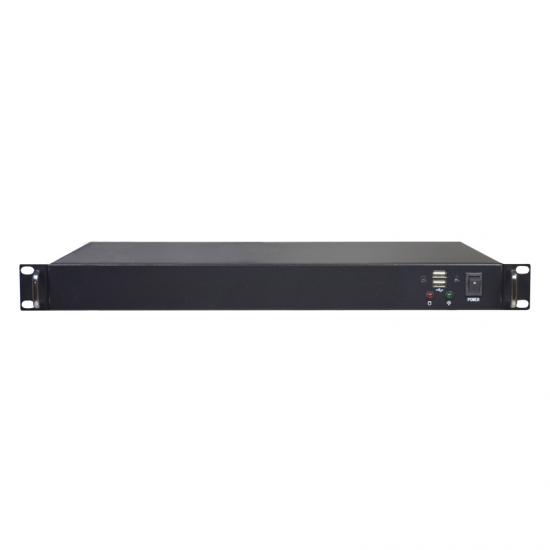

Power switch on the front panel. PWR indicator light .HDD indicator light .2 USB2.0 ports, other IO Rear interface; When matched with H61M10 motherboard, the rear IO interface is as follows: 6 USB2.0 ports 10 RS-232 COM ports Display interface: VGA+HDMI 2 network ports 1 2-in-1 PS/2 keyboard and mouse interface; 1 AUDIO: MIC-IN/LINE-IN/LINE-OUT; |
|
Memory |
2 2.5-inch hard disk slots |
|
Operating temperature |
0℃～+50℃，5%～90% (non-condensing state) |
|
Storage environment |
-20℃～ +60℃, 5%～90% (non-condensing state) |
|
Power supply |
Standard ATX small 1U industrial power supply |
|
Dimensions |
428×44×276.5mm(W*H*D) |
|
Model |
Description |
|
IPC-6010/EC9-1501-
ZX/C4580/2G/64G SSD/150W |
1U rackmount machine/ EC9-1501-ZX motherboard/C4580/1.8G clocked quad-core processor/2G memory/64G solid state drive/small 1U ATX 150W power supply/exposed interfaces: 2 intel network ports, 6 serial ports ( COM1/2 is RS-232/422 /485 adjustable), VGA+DVI-D (supports independent dual display), 6 USB front 2 rear 4 (of which 2 USB3.0, 4 USB2.0, hrough plug The pin can lead to 3 USB), 1 audio combination, 1 PS/2 keyboard and mouse interface.
|
|
IPC-6010/H61M10/
G2120/4G/120G SSD/150W |
1U rackmount machine/H61M10 motherboard/G2120/3.1G main frequency dual-core dual-thread/4G memory/120G solid state hard drive/small 1U ATX 150W power supply/exposed interfaces: 2 Ethernet ports, 10 RS232 serial ports, VGA+HDMI (support Independent dual display), 8 USBs, front 2 and rear 6 (2 USBs can be led out through the pins), 1 audio combination, 1 PS/2 two-in-one mouse and keyboard interface, 1 LPT pin, 1 PCIE x16. |
