Use motherboard H61M10 motherboard, support Intel second and third generation LGA 1155 platform Core i3/i5/i7 processors
Item No.:
BOX2020029Product origin:
ChinaColor:
WhiteShipping port:
guangzhouLead Time:
71.Use motherboard H61M10 motherboard, support Intel second and third generation LGA 1155 platform Core i3/i5/i7 processors
2.All-aluminum shell body design, excellent heat dissipation performance, suitable for use in small and complex industrial sites, safe and reliable
3.4 standard RS-232 interfaces, 8 USB2.0 interfaces to meet multiple expansion needs
4.Ultra-thin size, flexible integration
5.Aluminum chassis design with fan
|
Motherboard |
Use motherboard H61M10 motherboard, support Intel second and third generation LGA 1155 platform Core i3/i5/i7 processors |
|
RAM |
2 * DDR3 slots, support up to 16 GB DDR3 1066/1333 /1600 SDRAM storage mode |
|

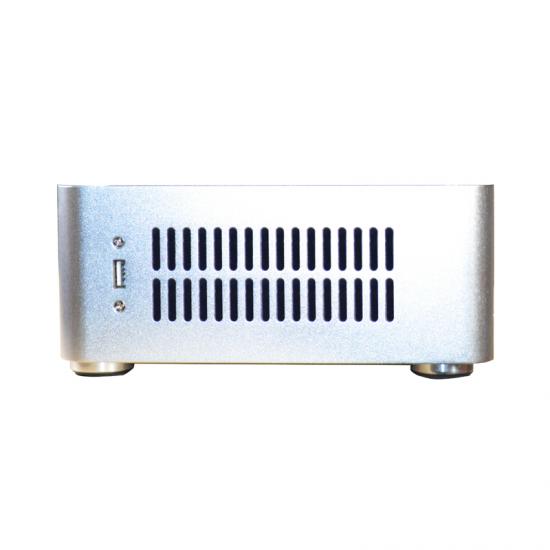

Front panel I/O interface |
1 * Power switch button |
|

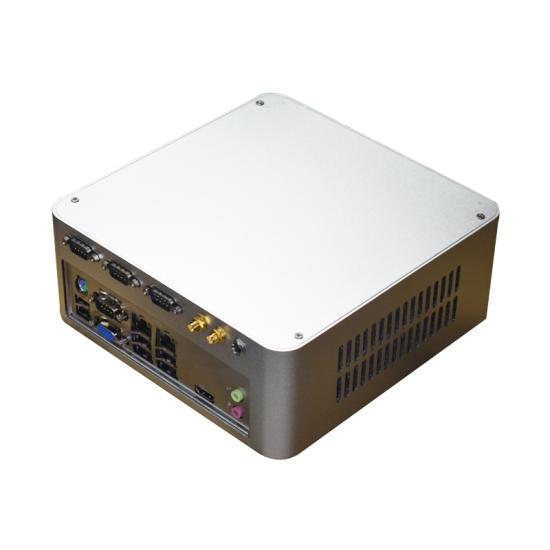

Rear I/O interface |
1 * 12V DC input 4 * COM interface 1 * VGA port 1 * HDMI port 1 * PS2 interface 8 * USB 2.0 interface 2 * RJ-45 network card interface 2 * WIFI antenna terminal 1 * Audio 3JACK port Line_in/Line_out/MIC |
|
storage |
1 x 2.5" SATA HDD bracket 1 built-in MSATA card slot |
|
Power mode |
Onboard DC power supply design, DC12V, 60W power adapter optional |
|
Dimensions |
202mm(depth)x200mm(width)X88mm(height) |
|
structure |
Fan aluminum chassis design |
|
Ambient temperature |
Ambient air circulation: -20° C ~ 70° C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) |
|
storage temperature |
-20° C ~ 80° C Relative humidity: 10% ~ 93% (no condensation) |
|
Model |
Description |
|
BOX-6220/H61M10/
I5-4570T/4G/128G SSD/WIFI module /ATX Power module /12V 60W adapter |
Small BOX industrial control machine/H61M10 mainboard/I5-4570T/2.9G main frequency dual-core four-thread/ 4G memory/128G solid state drive/intel WIFI module/ATX power module/12V 60W adapter/exposed interfaces: 2 network ports, 4 RS232 serial port, VGA+HDMI (supports independent dual display), 7 USB (front 1 and rear 6), 1 audio combination, 1 PS/2 2-in-1 mouse and keyboard interface
|
