GA-H110TN motherboard, INTEL H110 supports Intel 6th generation i3/i5/i7 processors
Item No.:
BOX2020021Product origin:
ChinaColor:
WhiteShipping port:
guangzhouLead Time:
71.GA-H110TN motherboard, INTEL H110 supports Intel 6th generation i3/i5/i7 processors

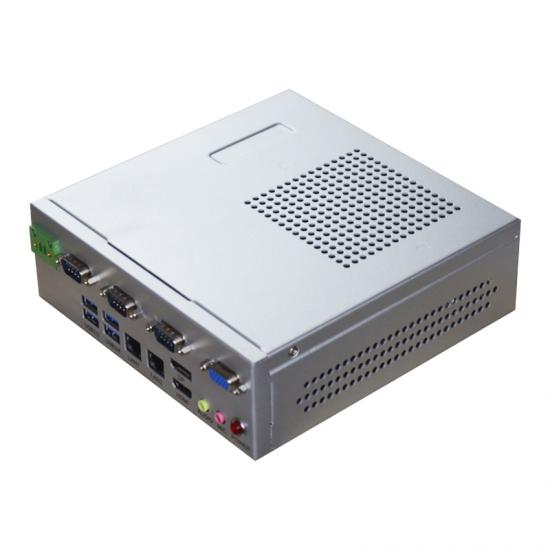

2.Iron metal body design, excellent heat dissipation performance, suitable for use in small and complex industrial sites, safe and reliable
3.4-channel standard RS-232 interface, COM3, COM4 support RS485, 422 adjustable, 6-channel USB interface, to meet multiple expansion needs
4.Ultra-thin size, flexible integration
5.Iron chassis design with fan (with dust screen)
|
Motherboard |
GA-H110TN motherboard, INTEL H110 supports Intel 6th generation i3/i5/i7 processors |
|
RAM |
2 * DDR4 slot, support up to 32 GB DDR3 1066/1333 /1600 SDRAM storage mode |
|
Front panel I/O interface |
2 * USB2.0 interface 1 * COM interface |
|

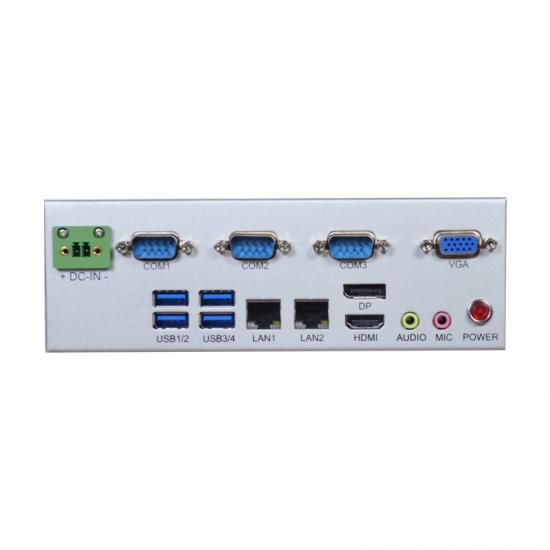

Rear I/O interface |
1 * DC input (2PIN Phoenix terminal) 3 * COM interface 4 * USB 3.0 interface 1 * VGA port 1 * HDMI interface 1 * DP interface 2 * intel network port 1 * POWER switch 1 * Audio 2 JACK port Line_in/Line_out |
|
storage |
1 x 2.5" SATA HDD bracket 1 built-in MSATA card slot |
|
Power mode |
Onboard DC wide voltage power supply design, DC12V-24V, power adapter optional |
|
Dimensions |
180mm(D)x180mm(w)X60mm(H) body size 190mm(D)x190mm(w)X65mm(H) wall hole size |
|
structure |
Iron case design with fan |
|
Ambient temperature |
Ambient air circulation: -20° C ~ 70° C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) |
|
storage temperature |
-20° C ~ 80° C Relative humidity: 10% ~ 93% (no condensation) |
|
Model |
Description |
|
BOX-6010/GA-H110TN/I5-
6500/4G/128G SSD/12-24V 90W adapter Device |
Small BOX industrial control machine/GA-H110TN motherboard/I5-6500/3.2G clocked quad-core four-thread/4G memory/128G solid state hard drive/12-24V 90W adapter power supply/Exposed interfaces: 2 network ports, 4 RS232 serial ports (COM3/4 is RS-232/422/485 adjustable), VGA+HDMI+DP (supports independent dual display), 6 USB front 2 rear 4 (including 4 USB3.0 and 2 USB2.0), 1 audio combination.
|
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
