6 USB ports, 2 RS232 ports can be expanded out of the chassis, and 4 PCI or PCIE expansion slots are added to meet multiple expansion needs
Item No.:
BOX2020022Product origin:
ChinaColor:
WhiteShipping port:
guangzhouLead Time:

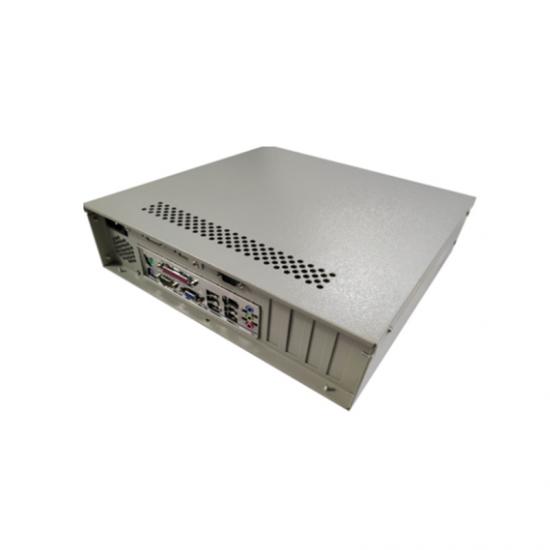

71.2U industrial BOX, select GA-H61M-S2PH motherboard
2.High-strength steel galvanized sheet body design, excellent heat dissipation performance, suitable for use in small and complex industrial sites, safe and reliable
3.6 USB ports, 2 RS232 ports can be expanded out of the chassis, and 4 PCI or PCIE expansion slots are added to meet multiple expansion needs
4.Flexible integration, compact structure
5.High-strength galvanized sheet body design with fan
|
Motherboard |
GA-H61M-S2PH motherboard, intel H61 chipset, support LGA 1155 second and third generation CPU |
|
RAM |
2 * DDR3 slots, support 1600/1333/1066MHz DDR3 memory, the maximum memory capacity can reach 16GB |
|
Front panel I/O interface |
1 * Power switch button 1 * POWER LED indicator 1 * HDD LED indicator |
|

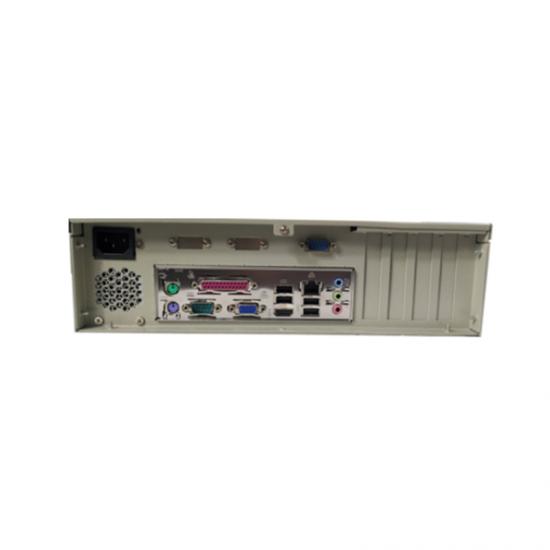

Rear I/O interface |
1 * Standard ATX power supply interface 2 * COM port 1 * VGA port 1 * PS/KB interface 4 * USB 2.0 interface 1 * LPT interface 1 * HDMI interface 1 * RJ45 network interface 4 * PCI, PCIE expansion slot interface |
|
storage |
1 x 2.5" SATA HDD bracket |
|
Power mode |
Adopt standard ATX power supply, ATX power (W) is optional |
|
Dimensions |
310mm(depth)*315mm(width)*88mm(height) |
|
structure |
Body design of high-strength steel galvanized sheet with fan |
|
Ambient temperature |
Ambient air circulation: -20° C ~ 70° C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) |
|
storage temperature |
-20° C ~ 80° C Relative humidity: 10% ~ 93% (non-condensing) |
|
Model |
Description |
|
BOX-6020/EC9-1501-
ZX/C4580/2G/120G SSD/150W |
2U BOX industrial control machine/ EC9-1501-ZX motherboard/C4580/1.8G main frequency quad-core processor/2G memory/120G solid state hard drive/small 1U ATX150W power supply/exposed interface: 2 intel network ports, 5 serial ports (COM1 /2 is RS-232/422/485 adjustable), VGA+DVI-D (supports independent dual display), 6 USB front 2 rear 4 (of which 2 USB3.0, 4 USB2.0, through the pin It can lead to 3 USB), 1 audio combination, 1 PS/2 keyboard and mouse interface, 1 PCIE x16 (actual speed x8), 1 PCIE x4, 2 PCI. |
|
BOX-6020/GA-H61M-
S2PH/G2120/4G/120G SSD/180W |
Compact wall-mounted machine/GA-H61M-S2PH motherboard/G2120/3.1G main frequency dual-core dual-thread/4G memory/120G solid state drive/small 1U ATX180W power supply/exposed interfaces: 1 network port, 2 RS232 serial ports, VGA +HDMI (supports independent dual display), 6 USBs, front 2 and rear 4 (4 USBs can be drawn out through pins), 1 audio combination, 1 PS/2 keyboard and mouse interface, 1 LPT, 1 PCIE x16 , 1 PCIE x1, 2 PCI. |
