6 standard RS-232 interfaces and 14 USB interfaces to meet multiple expansion needs
Item No.:
BOX2020025Product origin:
ChinaColor:
BlackShipping port:
guangzhouLead Time:
71.INTEL H81 (optional B85) supports Intel's fourth-generation Haswell platform Core i3/i5/i7 processors
2.All aluminum alloy shell body design, excellent heat dissipation performance, suitable for use in small and complex industrial sites, safe and reliable
3.6 standard RS-232 interfaces and 14 USB interfaces to meet multiple expansion needs
4.Ultra-thin size, flexible integration
5.Aluminum alloy case design with fan
|
Motherboard |
INTEL H81 (optional B85) supports Intel's fourth-generation Haswell platform Core i3/i5/i7 processors |
|
RAM |
2 * DDR3 slots, support up to 16 GB DDR3 1066/1333 /1600 SDRAM storage mode |
|
Front panel I/O interface |

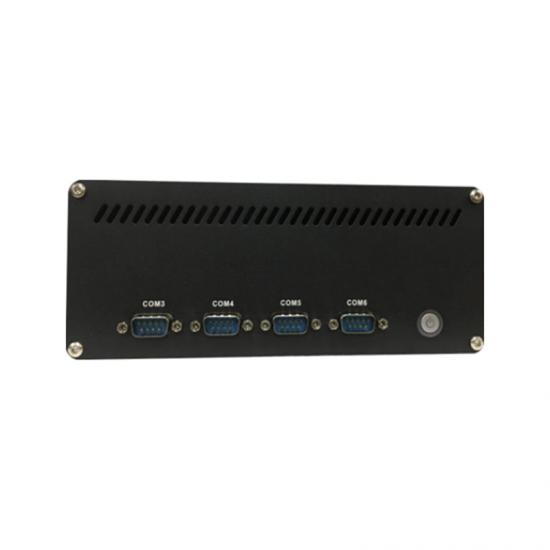

1 * Power switch button 1 * POWER LED indicator 4 * COM interface (support up to 12 COM) |
|
Rear I/O interface |

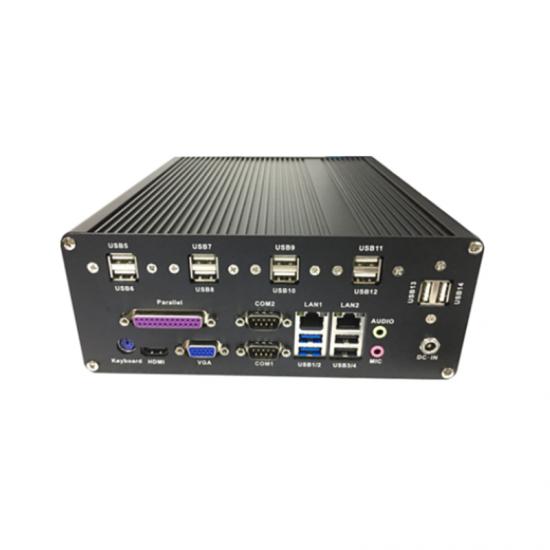

1 * 12V DC input 2 * COM interface 2 * USB 3.0 interface 12 * USB 2.0 interface 1 * VGA port 1 * HDMI interface 1 * LPT interface 1 * PS/KB interface 2 * RJ-45 Realtek8111E network card interface 1 * Audio 2 JACK port Line_in/Line_out |
|
storage |
1 x 2.5" SATA HDD bracket 1 built-in MSATA card slot |
|
Power mode |
Onboard DC power supply design, DC12V, 60W power adapter optional |
|
Dimensions |
255mm(D)x210mm(w)X85mm(H) |
|
structure |
Fan aluminum chassis design |
|
Ambient temperature |
Ambient air circulation: -20° C ~ 70° C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) |
|
storage temperature |
-20° C ~ 80° C Relative humidity: 10% ~ 93% (no condensation) |
|
Model |
Description |
|
BOX-6027/H81M12/
I5-4670T/4G/64G SSD/ATX power module /12V 60W adapter |
Compact wall-mounted machine/H81M12 motherboard/I5-4670T/2.3G clocked quad-core four-thread/4G memory/ 64G solid state drive/ATX power module/12V 60W adapter/exposed interfaces: 2 network ports, 6 RS232 serial ports , VGA+HDMI (supports independent dual display), 14 USBs (including 2 USB3.0, 12 USB2.0), 1 audio combination, 1 PS/2 2-in-1 mouse and keyboard interface, 1 LPT port . |
