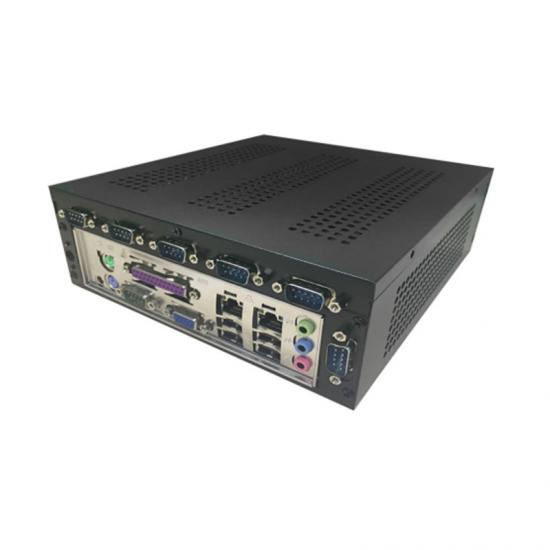

7-channel standard RS-232 interface, 6-channel USB2.0 interface, to meet multiple expansion needs
Item No.:
BOX2020023Product origin:
ChinaColor:
blackShipping port:
guangzhouLead Time:
71.INTEL 1037U can be equipped with I3-3217U/I3-3110M/I5-3317U/I5-3390M low-power processor,
2.All-round ventilation design of the chassis, excellent heat dissipation performance, high cost performance
3.7-channel standard RS-232 interface, 6-channel USB2.0 interface, to meet multiple expansion needs
4.Ultra-thin size, flexible integration
5.Aluminum alloy case design with fan
|
Motherboard |
INTEL 1037U Optional I3-3217U/I3-3110M/I5-3317U/I5-3390M low-power processor |
|
RAM |
1 * DDR3 SO-DIMM slot, support up to 8 GB DDR3 1066/1333/1600 SDRAM storage mode |
|
Front panel I/O interface |
1 * Power switch button 1 * POWER LED indicator 2 * USB interface |
|
Rear I/O interface |

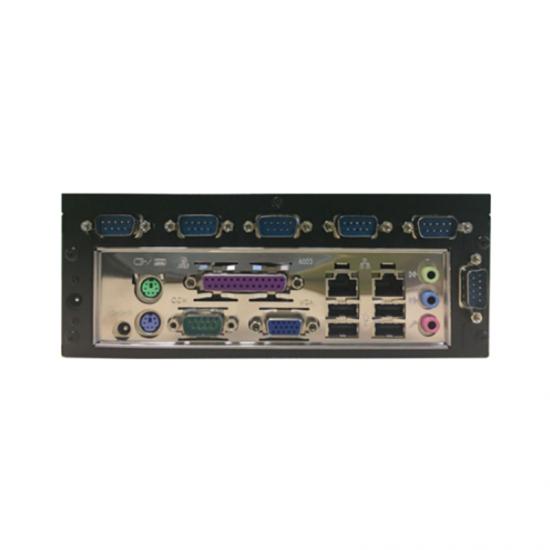

1 * 12V DC input 7 * COM interface 1 * LPT interface 1 * VGA port 1 * PS2 interface 4 * USB 2.0 interface 2 * RJ-45 Intel82583V network card interface (Intel82574L) 1 * Audio 3JACK port Line_in/Line_out/MIC |
|
storage |
1 x 2.5" SATA HDD bracket 1 built-in MSATA card slot |
|
Power mode |
Onboard DC power supply design, DC12V, 60W power adapter optional |
|
Dimensions |
205mm(D)x190mm(W)X72mm(H) |
|
structure |
Fan aluminum chassis design |
|
Ambient temperature |
Ambient air circulation: -20° C ~ 70° C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) |
|
storage temperature |
-20° C ~ 80° C Relative humidity: 10% ~ 93% (no condensation) |
|
Model |
Description |
|
BOX-6021/H61M10/
G2120/4G/120G SSD/ ATX power module /12V 90W adapter |
Small BOX industrial control machine/H61M10 motherboard/G2120/3.1G main frequency dual-core dual-thread/ 4G memory/120G solid state drive/ATX power module/12V 90W adapter/exposed interface: 2 network ports, 7 RS232 serial ports, VGA+HDMI (Supports independent dual display), 8 USB front 2 rear 6, 1 audio combination, 1 PS/2 combo keyboard and mouse interface. |
