4 standard RS-232 interfaces, 6 USB interfaces, 1 PCIE expansion slot to meet multiple expansion needs
Item No.:
BOX2020024Product origin:
ChinaColor:
BlackShipping port:
guangzhouLead Time:
71.The product is GA-H110TN motherboard

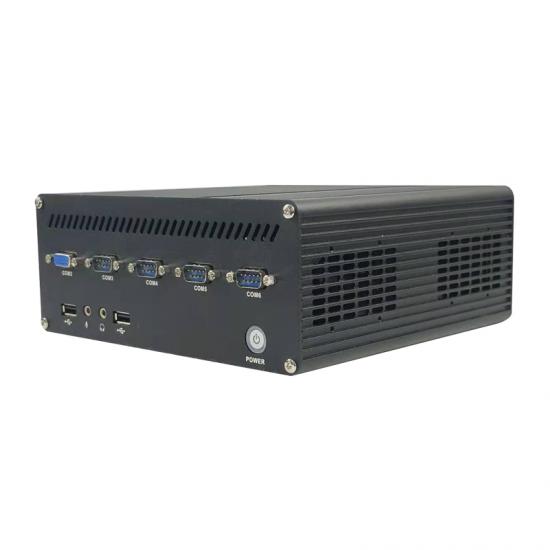

2.All-aluminum shell body design, excellent heat dissipation performance, suitable for use in small and complex industrial sites, safe and reliable
3.4 standard RS-232 interfaces, 6 USB interfaces, 1 PCIE expansion slot to meet multiple expansion needs
4.Ultra-thin size, flexible integration
5.Aluminum alloy case design with fan
|
Motherboard |
The product is GA-H110TN motherboard |
|
RAM |
2 * DDR4 slots, support up to 32 GB DDR4 |
|

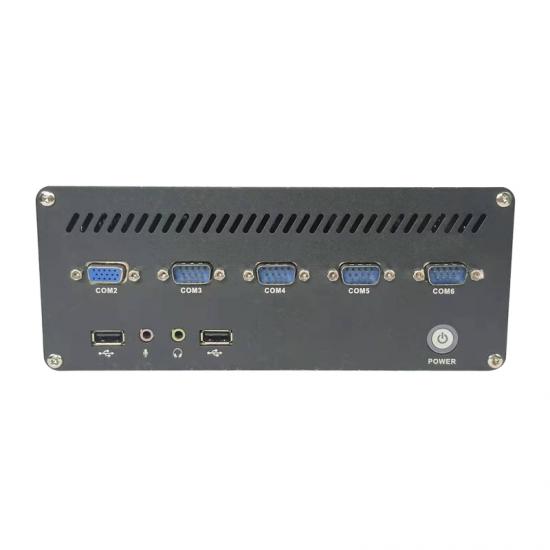

Front panel I/O interface |
1 * Power switch button 1 * POWER LED indicator 4 * COM interface (through PCI_E slot, COM can be expanded to 8-12) 2 * USB interface 1 * MIC_IN 1 * LINE_OUT |
|

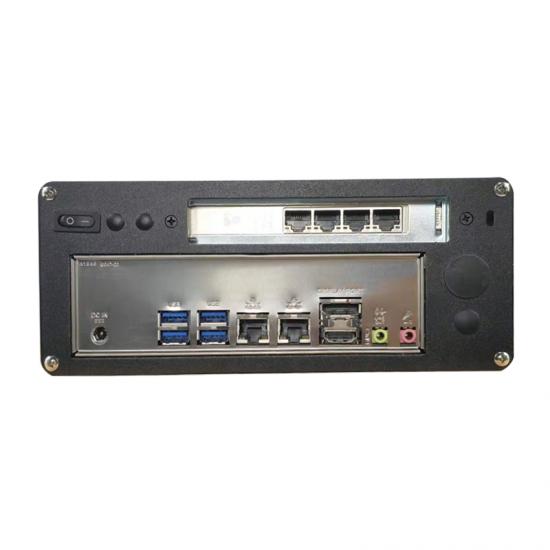

Rear I/O interface |
1 * DC input port 4 * USB 3.0 port 2 * RJ-45 network card port 1 * MIC_IN 1 * LINE_OUT 1 * Display PORT 1 * HDMI 1 * PCI_E expansion slot |
|
storage |
1 x 2.5" SATA HDD bracket 1 built-in MSATA card slot |
|
Power mode |
On-board DC power supply wide voltage design, DC12V, 19V, 24V power adapter optional |
|
Dimensions |
205mm(D)x210mm(W)X85mm(H) |
|
structure |
Fan aluminum chassis design |
|
Ambient temperature |
Ambient air circulation: -20° C ~ 70° C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) |
|
storage temperature |
-20° C ~ 80° C Relative humidity: 10% ~ 93% (non-condensing) |
|
Model |
Description |
|
BOX-6026/GA-
H110TN/I5-6500/4G/128G SSD/12-24V 90W adapter Device |
Small BOX industrial control machine/GA-H110TN motherboard/I5-6500/3.2G clocked quad-core four-thread/ 4G memory/128G solid state hard drive/12-24V 90W adapter power supply/Exposed interfaces: 2 network ports, 4 RS232 serial ports (COM3/4 is RS-232/422/485 adjustable), VGA+HDMI+DP (supports independent dual display), 6 USB front 2 rear 4 (including 4 USB3.0 and 2 USB2.0), 1 audio combination, 1 PCIE x4 slot (expandable) |
