10 standard RS-232 interfaces, 10 USB interfaces to meet multiple expansion needs
Item No.:
BOX2020026Product origin:
ChinaColor:
BlackShipping port:
guangzhouLead Time:
71.Use motherboard H61M10 motherboard, support Intel second and third generation LGA 1155 platform Core i3/i5/i7 processors
2.High-strength steel sheet metal body design, excellent heat dissipation performance, suitable for use in small and complex industrial sites, safe and reliable
3.10 standard RS-232 interfaces, 10 USB interfaces to meet multiple expansion needs
4.Ultra-thin size, flexible integration
5.High-strength steel sheet metal body design with fan (with dust screen)
|
Motherboard |
H61M10 motherboard, supporting Intel's second and third generation LGA 1155 platform Core i3/i5/i7 processors |
|
RAM |
2 * DDR3 slots, support up to 16 GB DDR3 1066/1333 /1600 SDRAM storage mode |
|
Front panel I/O interface |

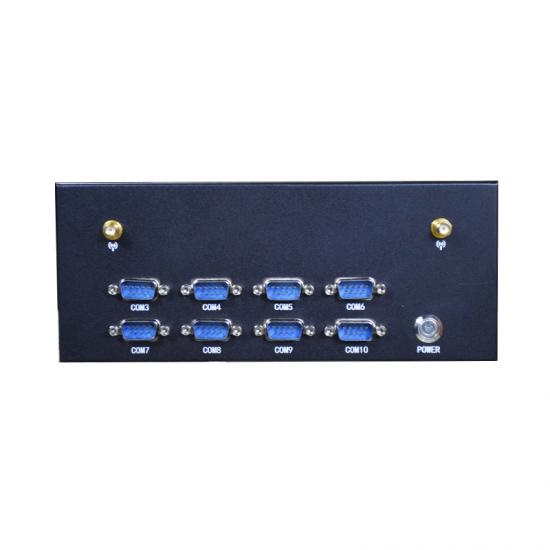

1 * Power switch button (with POWER LED indicator) 8 * COM interface 2 * WIFI antenna terminal |
|
Rear I/O interface |
1 * 12V DC input 2 * COM interface 10 * USB 2.0 interface 1 * VGA port 1 * HDMI interface 1 * PS/KB interface 2 * RJ-45 Realtek8111E network card interface 1 * PCIE half-length card expansion slot 1 * Audio 2 JACK port Line_in/Line_out |
|
storage |
1 x 2.5" SATA HDD bracket 1 built-in MSATA card slot |
|
Power mode |
Onboard DC power supply design, DC12V, 60W power adapter optional |
|
Dimensions |
231mm(D)x215mm(w)X88mm(H) body size 231mm(D)x243mm(w)X93mm(H) wall hole size |
|
structure |
High-strength steel sheet metal body design with fan |
|
Ambient temperature |
Ambient air circulation: -20° C ~ 70° C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) |
|
storage temperature |
-20° C ~ 80° C Relative humidity: 10% ~ 93% (no condensation) |
|
Model |
Description |
|
BOX-6040/H61M10/ G2120/4G/128G SSD/ WIFI module/ATX power supplyModule/12V 60W adapter
|
Small BOX industrial control machine/H61M10 mainboard/I5-4570T/2.9G main frequency dual-core four-thread/ 4G memory/128G solid state drive/intel WIFI module/ATX power module/12V 60W adapter/exposed interface: 2 network ports, 10 RS232 serial port, VGA+HDMI (supports independent dual display), 10 USBs, 1 audio combination, 1 PS/2 2-in-1 mouse and keyboard interface, 1 PCIE x16 slot (expandable half-height card)
|
