Ultra-thin size, small and classic appearance, compact structure, sturdy, as the first choice for commercial office and home, convenient to carry
Item No.:
BOX2020028Product origin:
ChinaColor:
WhiteShipping port:
guangzhouLead Time:
71.GA-H110TN-D motherboard
2.Ultra-thin fan design with turbine side blowing, excellent heat dissipation and enhanced high reliability
3.Using GIGABYTE motherboard, first-line brand, stable quality
4.The motherboard is an intel H110 chipset, which can support LGA 1151 6th and 7th generation CPUs with powerful performance
5.Ultra-thin size, small and classic appearance, compact structure, sturdy, as the first choice for commercial office and home, convenient to carry
|
Motherboard |
GA-H110TN-D motherboard |
|
RAM |
2 * DDR4 SO-DIMM slot, support up to 16 GB DDR4 |
|
Front panel I/O interface |

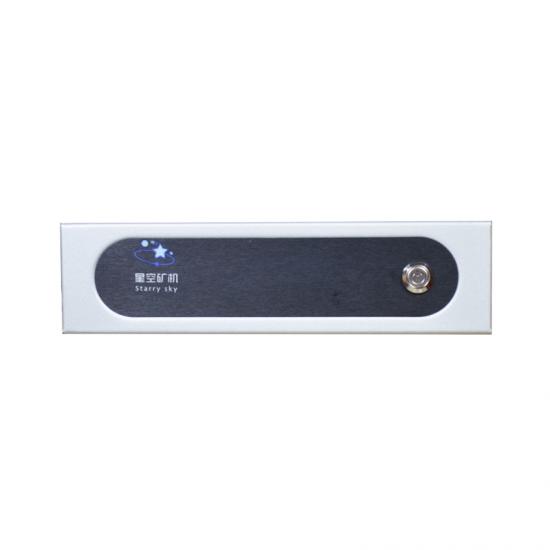

1 * Power switch button (with power light) |
|
Rear I/O interface |
1 * DC IN (supports wide voltage 12-24V power adapter) 4 * USB 3.0 interface 1 * RJ-45 Ethernet port 1 * HDMI interface 2 * WIFI antenna terminal 2 * Audio JACK port Line-out/Line-in |
|
storage |
1 built-in MSATA card slot |
|
Power mode |
On-board DC power supply design, support wide voltage DC12V-24V, above 60W power adapter optional |
|
Dimensions |
190mm(length)*190mm(width)*40mm(height) |
|
structure |
Turbine side blowing fan case design, horizontal HTPC small case |
|
Ambient temperature |
Ambient air circulation: 0° C ~ 60° C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) |
|
storage temperature |
0° C ~ 60° C Relative humidity: 10% ~ 93% (no condensation) |
|
Model |
Description |
|
BOX-6110/GA-H110TN-D/
G3900/4G/64G SSD/ wifi/12-24V 90W adapter |
Small BOX industrial computer/GA-H110TN-D motherboard/G3900/2.8G dual-core dual-thread/4G memory/ 64G solid state hard drive/12-24V 90W adapter power supply/exposed interface: 1 network port, 1 HDMI
interface, With wifi function, 4 USB3.0, 1 audio combination |
