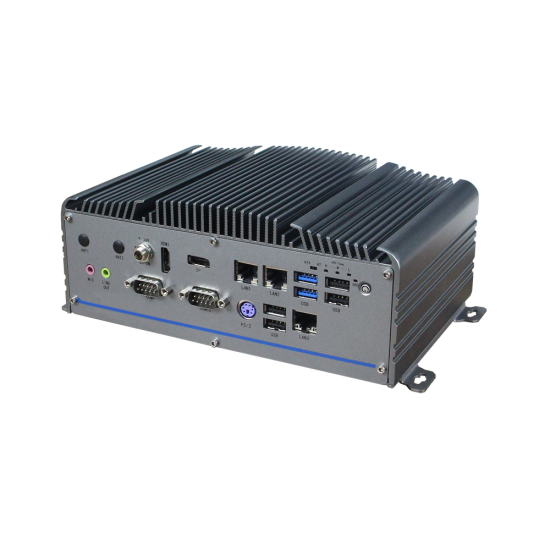

Intel® Apollolake Soc CPU CPU, 3*LAN, 7*USB, 10*COM, dual 4K display, DC-IN 9~36V, LED temperature control display, audio Line out & Mic, 16-bit DIO.
Item No.:
BOX20201101Product origin:
ChinaColor:
Silver grayShipping port:
guangzhouLead Time:
71.Universal aluminum rectangular profile housing, fanless heat dissipation design
2.Intel® Apollolake Soc CPU
3.1*DDR3L 1866 MHz SODIMM memory, maximum 8GB
4.3*Intel I211-AT PCIe Gig LAN
5.1*HDMI and 1*DP dual 4K display, audio Line out and Mic
6.2*USB3.0, 5*USB2.0,10*COM, 1*PS2, 16-bit DIO
7.1*M.2 2242 B-Key
8.1*2.5" SATA3 drive bay, 1*mSATA
9.DC 9~36V wide voltage DC power supply
|
CPU |
Intel® Apollolake Soc CPU |
|
System memory |
1*DDR3L 1866MHz SODIMM, maximum 8GB |
|
extension port |
1*M.2 2242 B-key with PCIeX1 and USB signal, with SIM card slot, support 4G LTE, Wifi/BT and other functions; 1*Full length mSATA with USB+SATA3 letter |
|
display |
Gen. 9th Intel HD Graphics, the highest resolution DP: 4096*2160@60Hz HDMI: 3840*2160@30Hz, support OpenGL 4.3, DirectX 11, OpenCL 2.0, MPGE2, H.265 |
|
Audio |
Realtek ALC662 HD audio, external Line out and Mic interface, support 5.1 channel |
|
Ethernet |
3*Intel I211-AT PCIe Gigabit Ethernet, 10/100/1000M adaptive |
|
Keyboard&mouse |
Ps2&USB type keyboard and mouse |
|
storage |
1*2.5" HDD SATA3 drive frame, rate 6.0Gbps, drive frame fits aluminum heat dissipation; 1*mSATA full-height card, supports AHCI |
|
DIO |
16-bit TTL signal, programmable input and output |
|
I/O interface |
3*RJ45 LAN with LED (front panel); 1*PS2 keyboard & mouse (front panel) 2*USB3.0 Type A and 4*USB2.0 Type A (front panel), 1*USB2.0 Type A built-in 2*5Pin Phoenix terminal, 8-bit DIO (front panel); 2*5Pin Phoenix terminal, 8-bit DIO (rear panel) 6*RS232/422/485 DB9 and 2*RS232 DB9 (rear panel), 2*RS232/422/485 DB9 (front panel) 1*HDMI and 1*DP (front panel); 1*Line-out and 1*Mic dual 3.5mm audio interface (front panel) 1*2pin terminal, remote switch signal interface (rear panel) |
|
Indicator light |
1*Power indicator, 1*Hard disk indicator, 3*CPU temperature level indicator (Red is warning, Yellow is high temperature, Green is normal temperature) |
|
Control switch |
1*Power switch (front panel), 1*2pin terminal switch signal (rear panel), 1*AT/ATX selector switch (front panel) |
|
Power requirements |
DC IN 9~36V, D-Jack with M8 nut interface (front panel), with short circuit, overvoltage and overcurrent protection, power consumption: TBD |
|
Watchdog timer |
Programmable timeout interrupt or system reset, 1 to 255 seconds |
|
operating system |
Windows 7, Windows 8.1, Windows 10, Linux Fedora Ubuntu |
|
structure |
U-shaped aluminum rectangular heat dissipation profile, SGCC paint front and rear panels |
|
colour |
silver gray |
|
Installation method |
Desktop |
|
size |
(W*H*D): 210*144*82.7 mm |
|
net weight |
2.60kg |
|
Operating temperature |
-20°C～70°C-no fan, wide temperature SSD; -10°C～55°C-No fan, HDD at room temperature; |
|
storage temperature |
-40°C~85°C |
|
Storage humidity |
10~90%@40°C, non-condensing |
|
vibration |
5 grms/5~500Hz/random/working state (SSD); 1 grms/5~500Hz/random/working state (HDD)
|
|
Shock |
50g peak acceleration (11ms duration) (SSD); 20g peak acceleration (11ms duration) (HDD)
|
|
EMC |
CE/FCC Class A |
