6th generation Intel® Skylake-S/ 7th generation Intel® Kabylake-S Celeron/Pentium/Core I3/I5/I7 CPULGA 1151 socket
Item No.:
BOX2020008Product origin:
ChinaColor:
Silver whiteShipping port:
guangzhouLead Time:
71.Aluminum rectangular profile shell, fanless heat dissipation design
2.Intel® Kabylake-S/Skylake-S CPU
3.2*DDR4 2400/2133MHz SODIMM memory, maximum 32GB
4.1*DP, 1*HDMI and 1*VGA, optional three independent displays (Intel Q170)
5.2*LAN, 4*USB3.0, 3*USB2.0, 4*COM, (8+16) bit DIO
6.1*Mini PCIe(PCIe+USB), 1*M.2 2242 B-Key
7.1*mSATA, 2*2.5" SATA3, support Raid0,1(Intel Q170)
8.TPM2.0 security encryption, support Intel iVpro technology (Intel Q170)
9.DC 12~24V wide voltage power supply
|
CPU |
6th generation Intel® Skylake-S/ 7th generation Intel® Kabylake-S Celeron/Pentium/Core I3/I5/I7 CPULGA 1151 socket |
|
chipset |
Intel H110 Chipset/Intel Q170 Chipset |
|
System memory |
2*260-Pin SODIMM, dual channel DDR4 2400/2133MHz, maximum 32GB |
|
extension port |
1* Full length Mini PCIe with PCIe X1+USB signal with SIM card slot, support 4G card wireless network and Wifi/BT communication module |
|
GPU& display |
Intel Gen. 9 HD Graphics, HEVC/H265 HW HD codec, DP maximum resolution is 4096*2304@60Hz, HDMI maximum resolution is 3840*2160@30Hz, VGA maximum resolution is 1920*1200@60Hz, supports 3 independent displays (Intel Q170) |
|
Audio |
Realtek ALC662VD Audio, Audioout and MIC |
|
Ethernet |
1*Intel I211AT+1*Intel I219LM PCIe Gig. Ethernet, support Intel iVpro advanced technology (Intel Q170) |
|
storage |
2*2.5" HDD SATA3 shock-absorbing drive frame, support RAID0,1 (Intel Q170); 1*mSATA full height card (SATA); 1*M.2 2242 B-key(SATA&USB) |
|
DIO |
8-bit DIO (Phoenix terminal) + 16-bit DIO (DB25), TTL signal, programmable input and output |
|
I/O interface |

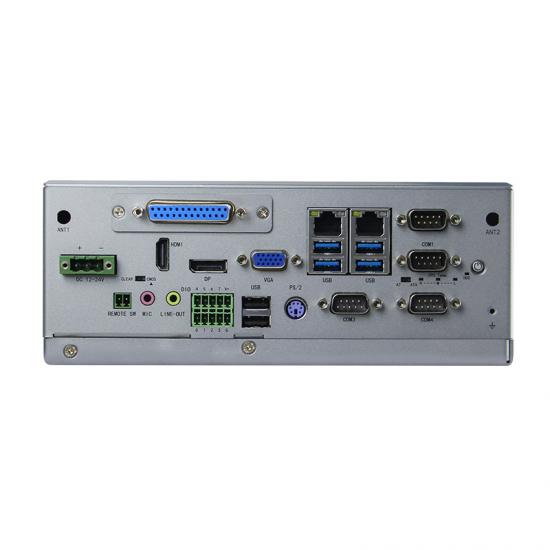

2*RJ45 Gig-LAN (front panel) 4*USB3.0 Type A (front panel); 2*USB2.0 Type A (front panel); 1*USB2.0 (built-in) 8-bit +16-bit DIO, 1*PS/2 (front panel); 2*RS232/422/485 DB9 male (front panel), 2*RS232 DB9 male (front panel) 1*Audio-out and 1*MIC 3.5 audio interface (front panel) 1*HDMI +1*DP+1*VGA (front panel) |
|
Indicator light |
1*power indicator light, 1*hard disk indicator light, 3*CPU temperature level indicator light (Red means alarm, Yellow means high temperature, Green means normal temperature) |
|
Control switch |
1* Power switch, 1*2pin terminal, remote switch signal, 1*AT/ATX selector switch, 1*Clear CMOS switch |
|
Power requirements |
DC 12~24V input, 3-pin terminal interface (front panel), power consumption: TBD |
|
Watchdog timer |
Programmable timeout interrupt or system reset, 1 to 255 seconds |
|
operating system |
Windows 7, Windows 10, Linux Fedora, Ubuntu |
|
structure |
Aluminum rectangular profile heat dissipation shell, SGCC box |
|
colour |
Silver gray |
|
Installation method |
Desktop installation |
|
size |

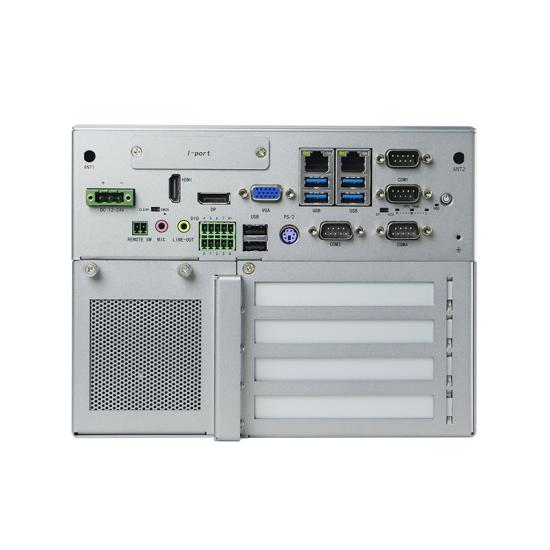

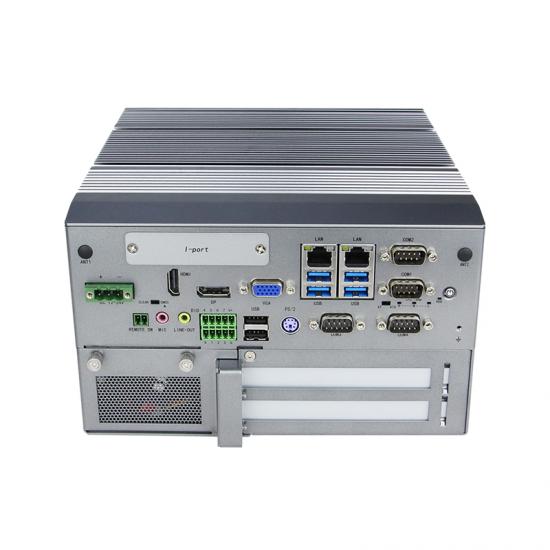

(W*H*D): 221*251*88mm (W*H*D): 220*250*131mm (2P) (W*H*D): 220*250*172.3mm(4P) |
|
net weight |
TBD 5.27Kg 5.58kg |
|
Operating temperature |
-20 ～65℃, wide temperature SSD, air flow -10 ～ 55° C, normal temperature HDD, air flow |
|
storage temperature |
-40° C~85° C |
|
Storage humidity |
10~90%@40° C, non-condensing |
|
vibration |
5grms/5~500Hz/random/working state (SSD); 1grms/5~500Hz/random/working state (HDD) |
|
Shock |
50g peak acceleration (11ms duration) (SSD); 20g peak acceleration (11ms duration) (HDD) |
|
EMC/ Certification |
CE/FCC Class B |
