Fanless aluminum alloy chassis design, high expandability, suitable for complex industrial environments
Item No.:
BOX2020004Product origin:
ChinaColor:
WhiteShipping port:
guangzhouLead Time:
71.INTEL J1800/J1900
2.Fanless design, enhanced high reliability performance
3.6 standard RS-232 interfaces and 8 USB interfaces to meet multiple expansion needs
4.Ultra-thin size, flexible integration, excellent sealing, dustproof, heat dissipation and vibration resistance. Compact and robust
5.Fanless aluminum alloy chassis design, high expandability, suitable for complex industrial environments
|
Motherboard |
INTEL J1800 /J1900 |
|
RAM |
1 * DDR3 SO-DIMM slot, support up to 8 GB DDR3 1066/1333/1600 SDRAM storage mode |
|
Front panel I/O interface |

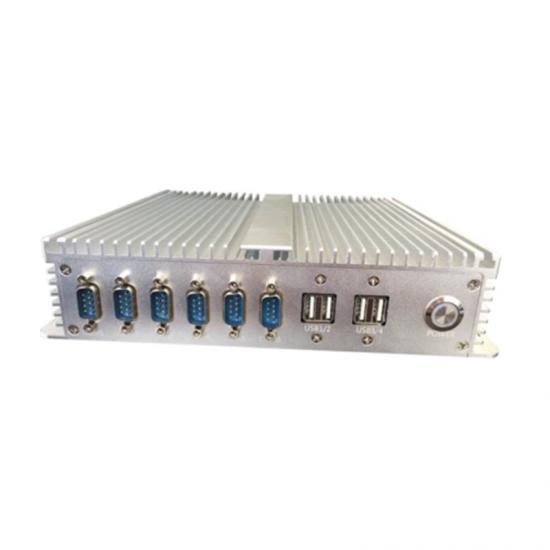

1 * Power switch button 1 * POWER LED indicator 6 * COM interface 4 * USB interface |
|
Rear I/O interface |

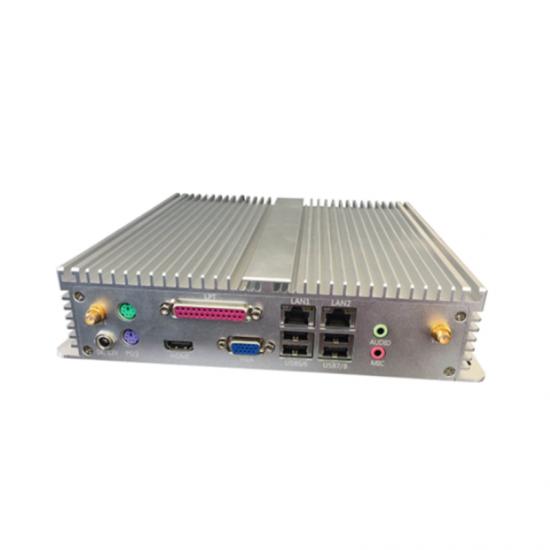

1 * 12V DC input 4 * USB 2.0 interface 1 * LPT interface 1 * PS2 KB/MS interface 2 * RJ-45 Ethernet port 1 * VGA port 1 * HDMI interface 2 * WIFI antenna terminal 1 * Audio 2 JACK port Line-in /Line-out |
|
storage |
1 built-in MSATA card slot |
|
Power mode |
Onboard DC power supply design, DC12V, 60W power adapter optional |
|
Dimensions |
220mm(depth)*210mm(width)*52mm(height) 220mm(depth)*230mm(width)*52mm(height) with wall mount on both sides |
|
structure |
Fanless aluminum alloy case design |
|
Ambient temperature |
Ambient air circulation: -20° C ~ 70° C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) |
|
storage temperature |
-20° C ~ 80° C Relative humidity: 10% ~ 93% (no condensation) |
|
Model |
Description |
|
BOX-5018-F
|
Embedded fanless machine/ J19002.00 GHz processor/4G memory/128G SSD/DC12V power supply/12V adapter/6 COM/ 2 Gigabit Ethernet ports/8 USB (6 USB2.0 2 USB3. 0)/VGA+HDMI/1 LPT/1 pair PS2/ Line-in+Line-out /WIFI |
