Fanless aluminum alloy chassis design, high expandability, suitable for complex industrial environments
Item No.:
BOX2020007Product origin:
ChinaColor:
WhiteLead Time:
71.INTEL J1900
2.Fanless design, enhanced high reliability performance
3.6-channel standard RS-232 interface, of which COM1, COM2, adjustable RS-232.RS-485, 6-channel USB interface, to meet multiple expansion needs
4.Ultra-thin size, flexible integration, excellent sealing, dustproof, heat dissipation and vibration resistance. Compact and robust
5.Fanless aluminum alloy chassis design, high expandability, suitable for complex industrial environments
Motherboard |
Intel J1900 motherboard |
RAM |
1 * DDR3 SO-DIMM slot, support up to 8 GB DDR3 1066/1333/1600 SDRAM storage mode |

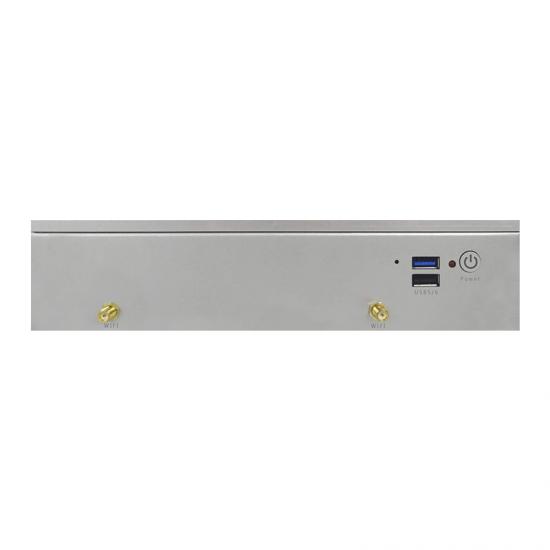

Front panel I/O interface |
1 * Power switch button (with power light) 1 * HDD LED indicator 2 * USB interface 2 * WIFI antenna terminal |

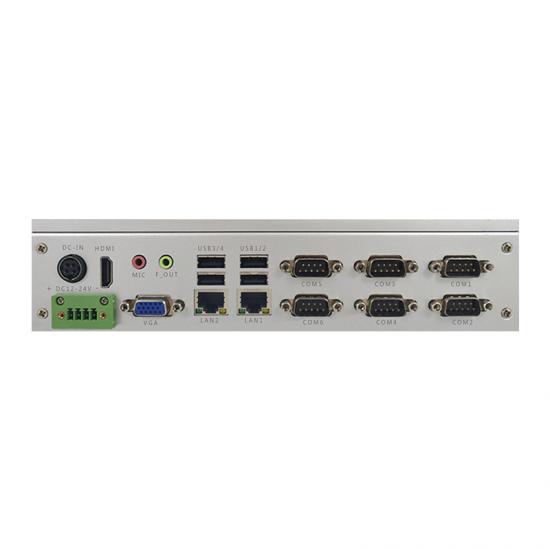

Rear I/O interface |
1 * 12V DC input 4 hole circular input interface 1 * 12V DC input 4 hole Phoenix terminal 4 * USB 2.0 interface 2 * RJ-45 Ethernet port 1 * VGA port 1 * HDMI interface 6 * COM port (COM1, COM2 adjustable RS-232, RS-485) 1 * Audio 2 JACK port Line-in /Line-out |
storage |
1 x 2.5" SATA HDD bracket 1 built-in MSATA card slot |
Power mode |
Onboard DC power supply design, DC12V, 60W or more power adapter optional |
Dimensions |
240mm(length)*155mm(width)*55mm(height) 253mm(length)*95mm(width)*60mm(height) with wall-mounted hole size |
structure |
Fanless aluminum alloy case design |
Ambient temperature |
Ambient air circulation: -20° C ~ 70° C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) |
storage temperature |
-20° C ~ 80° C Relative humidity: 10% ~ 93% (no condensation) |
Model |
Description |
BOX-5031
|
Embedded fanless machine/J19002.00 GHz processor/4G memory/128G SSD/DC12V power supply/12V adapter/ 6 COM (including COM1 COM2 RS422 RS485 adjustable)/2 Gigabit Ethernet ports/6 USB( 4 USB2.0 2 USB3.0)/ VGA+HDMI/PS/2*1 / Line-in+Line-out /WIFI
|
Previous :
The fanless embedded industrial computer motherboard is GA-H110TN motherboard BOX-5028Next :
The sixth generation fanless embedded industrial computer. 7th generation Intel CPUIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
