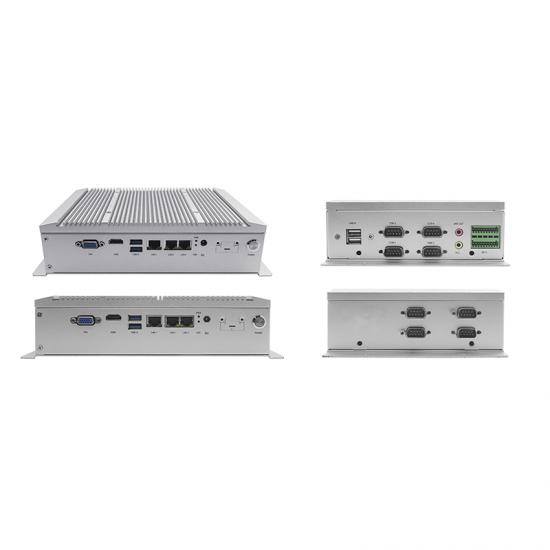

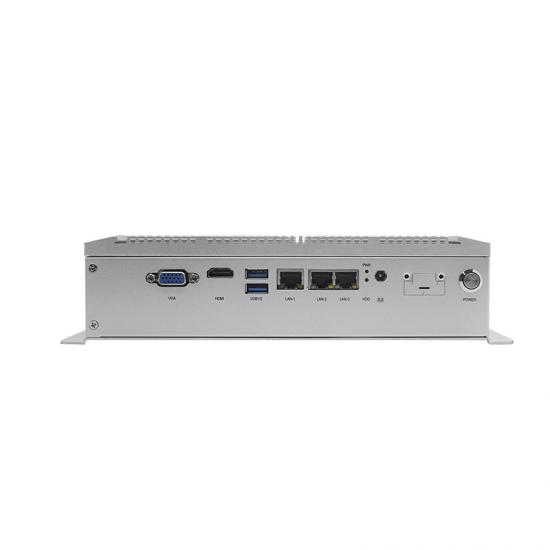

Seventh Generation Intel ® Core™ i5 i7 Celeron ® Processor 3000 Series
Item No.:
BOX2020001Product origin:
ChinaColor:
WhiteShipping port:
guangzhouLead Time:
71.7th Generation Intel ® Core™ i5 i7 Celeron ® Processor 3000 Series
2.Three Intel Gigabit Ethernet ports
3.1 DDR4 SO-DIMM slot supports up to 16GB
4.8 COM, up to 5 RS485
5.Industrial-grade port protection blocks static electricity and surges
6.Using high Tg wide temperature PCB material to ensure wide temperature stability
|
Ordering Information |
BOX-5008-65 CPU: 3965U BOX-5008-I5 CPU: I5-7200U BOX-5008-I7 CPU: I7-7500U |
|
processor |
Kaby Lake Intel ® Celeron ® processor 3000 series: 3965U Kaby Lake 7th Generation Intel ® Core™ i5 Processor: I5-7200U Kaby Lake 7th Generation Intel ® Core™ i7 Processor: I7-7500U |
|
RAM |
Type DDR4 Socket 1 x SO-DIMM Max Size 16GB |
|
display |
GPU 3650U: Intel ® HD Graphics Card 610; I5-7200U, I7-7500U: Intel ® HD Graphics 620 HDMI 1 x HDMI 1.4 out, Max.4096x2304@24Hz VGA 1 x VGA out, Max.1920*1080@60Hz |
|
The internet |
Chip 3 x Intel I211AT (RJ45) |
|
USB |
Conventional I/O: 2 x USB3.0 Type-A + 2 x USB2.0 Type-A |
|
storage |
SATA 1 x SATA3.0 maximum data transfer rate 600 MB/s MSATA 1 x MSATA Maximum data transfer rate 600 MB/s |
|
Audio |
Audio I/O: 1 x Mic-in, 1 x Line-out |
|
Serial port |
COM1 I/O: 1 x RS232/422/485 COM2-4 I/O: 3 x RS232 COM5-8 I/O: 4 x RS232/485 (expanded by LPC) |
|
LPC expansion interface |
LPC 1 x LPC local bus interface (expandable security encryption module, serial port module) |
|
Expansion bus |
Mini-PCIe 1 x Mini-PCIe (with SIM card holder supporting 4G module) |
|
Digital I/O |
GPIO I/O: 16Bit x GPIO, provide power and ground, +5V level |
|
Watchdog |
Watch Dog 255 level programmable second/minute, support timeout interrupt or system reset |
|
power supply |
DC/4Pin ATX 1 x DC Aviation plug with lock 12-24V 5.5mm X 2.5mm |
|
working environment |
Humidity 10%~90% non-condensing Optional wide temperature range -40℃ ~85℃ can be used in harsh environments |
|
OS |
Windows windows10/windows7/WES7 Linux Supported |
|
PCB size |
LxWxH 146mm X 102mm |
|
Parts List |
Driver CD with electronic file manual (1 CD per box for industrial packaging) Power adapter 12V |
