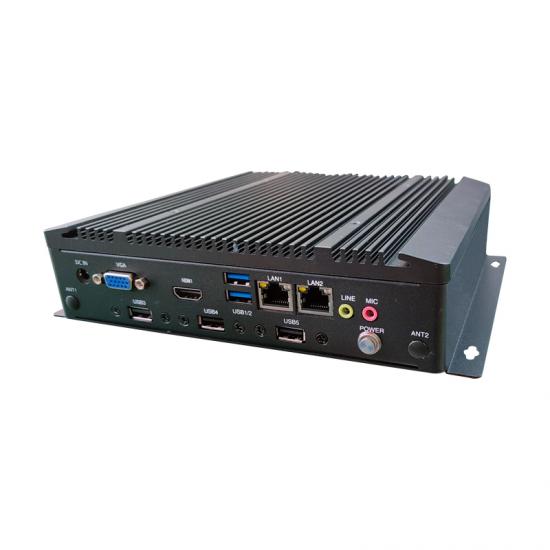

M51 is a fanless, low-power, high-performance embedded machine. The product casing is made of aluminum alloy casting, with small dimensions; compact structure and fanless design. It has excellent sealing, dustproof, heat dissipation and anti-vibration performance. It can be used in harsh environments such as heavy pollution, dust, and serious electromagnetic interference. Onboard the sixth and seventh generation Intel® Celeron® J4105, J4125 processor Gemini Lake series solutions, support WIN10, LINUX and other operating systems; the main market applications are mechanical testing equipment, industrial automation control, robot controllers and other embedded intelligent fields.
Item No.:
BOXyh0055Product origin:
ChinaColor:
BlackShipping port:
guangzhouLead Time:
71.Fanless chassis heat dissipation design
2.Fully sealed, dust-proof and anti-interference
3.7*24 hours continuous operation
4.Small size, strong expansion performance
|
processor |
Intel® Celeron® J4105 Processor 4M Cache, 1.5G quad-core
Intel® Celeron® J4125 Processor 4M Cache, 2.0G quad core |
|
chipset |
Intel Gemini Lake |
|
RAM |
Provide a 260Pin DDR4 SO-DIMM memory slot, the slot supports a maximum of 8GB |
|
I/O interface |
Network port: 2 RJ45 10/100/1000 network ports |
|
Expansion bus |
Motherboard integration:1 MiniPCIE expansion slot (with SIM card holder supporting 4G module), 1 M.2 |
|
hard disk |
M.2:1 M.2 supports 2242/2280 SSD capacity optional |
|
working environment |
0℃~60℃℃, 5%~90% (non-condensing state) |
|
Storage environment |
-40℃～70℃; humidity: 5%～90% (non-condensing state) |
|
Product Size |
M51: 200×53×180mm(W*H*D) M51-6C: 200×72×180mm(W*H*D) |
| power supply |
DC12V input, external AC 220V adapter power supply |
|
Model |
Description |
|
M51/EC7-GML/J4105/4G/120G/DC-12V5A |

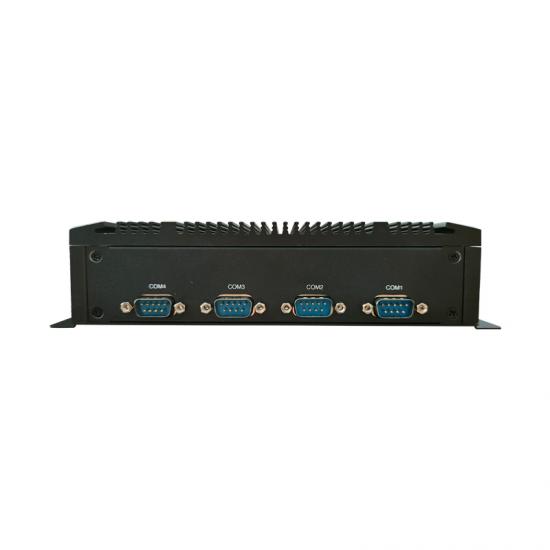

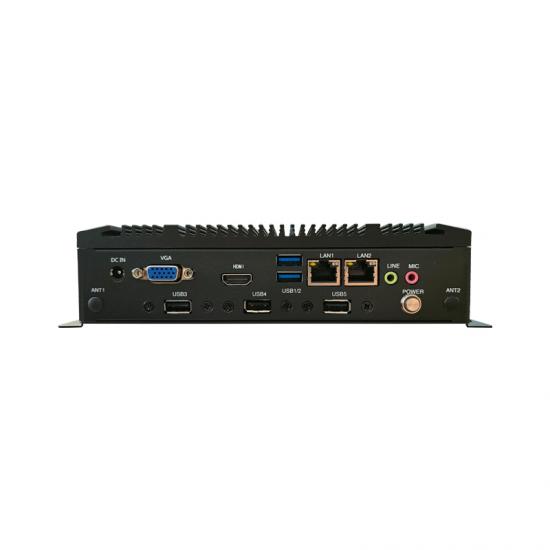

M51 fanless embedded machine/EC7-GML motherboard/J4105/4G memory/120G SSD/DC12V 5A power supply/exposed interface: 2 Gigabit Ethernet ports, 4 serial ports, VGA+HDMI (support independent dual display), 5 One USB, of which 2 USB3.0, 3 USB2.0, 1 set of Audio interface |
|
M51/EC7-GML/J4125/4G/120G/DC-12V5A |
M51 fanless embedded machine/EC7-GML motherboard/J4125/4G memory/120G SSD/DC12V 5A power supply/exposed interface: 2 Gigabit Ethernet ports, 4 serial ports, VGA+HDMI (support independent dual display), 5 USB (including 2 USB3.0, 3 USB2.0, 1 set of Audio interface |
|
M51-6C/EC7-GML/J4105/4G/120G/DC-12V5A |
M51-6C fanless embedded machine/EC7-GML motherboard/J4105/4G memory/120G SSD/DC12V 5A power supply/exposed interface: 2 Gigabit Ethernet ports, 6 serial ports, VGA+HDMI (support independent dual display) , 8 USB (including 2 USB3.0, 6 USB2.0), 1 set of Audio interface |
|
IPC-6041/ H110-6COM/I5- 6500/4G/1T/250W |
M51-6C fanless embedded machine/EC7-GML motherboard/J4125/4G memory/120G SSD/DC12V 5A power supply/exposed interface: 2 Gigabit Ethernet ports, 6 serial ports, VGA+HDMI (support independent dual display) , 8 USB (including 2 USB3.0, 6 USB2.0), 1 set of Audio interface |
