A brand new 10th generation Intel fanless mini industrial computer
Item No.:
BOX2020002Product origin:
ChinaColor:
WhiteShipping port:
guangzhouLead Time:
79.Support MSATA
|
Processor
|
Intel® Whiskylake U SOC，TDP 15W
|
|
Memory
|
1 x SO-DIMM DDR4，MAX 16GB
|
|
Storage
|
1 x MSATA
1 x SATA3.0+PWR 4pin XH2.54
|
| Graphics |
Intel® HD Graphics
|
|
Wireless
|
1 x MiniPCIE，PCIE+USB2.0 Signal，Support 4G module
|
|
Network
|
2 x Intel® i211AT 1000M
|
|
SIM
|
1 x SIM(NANO)
|
|
Audio
|
Realtek ALC662 HD Audio IC
|
|

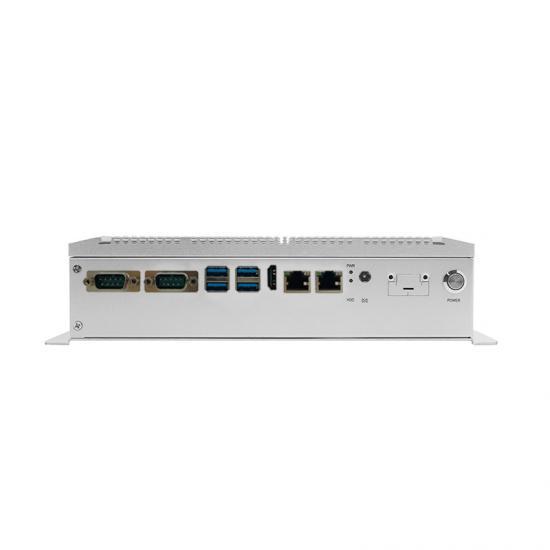

Rear I/O
|
RJ45 2 COM 2, DB9, RS232/RS422/RS485 USB 4, USB3.0 Type-A HDMI 1, HDMI1.4 OUT |
|

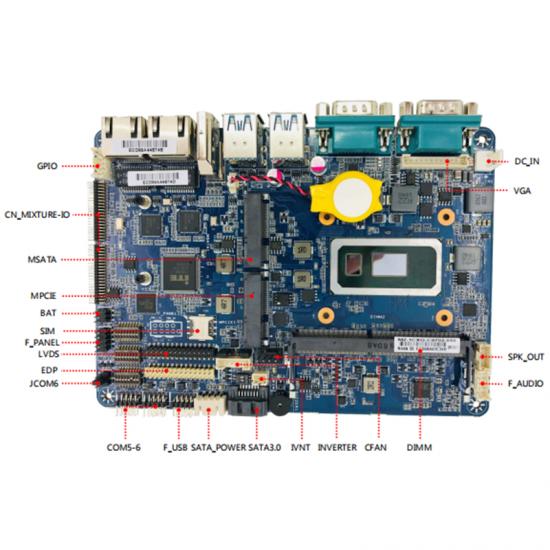

Side I/O
|
MIX-IO 2, 2x20 pin (GPIO/2xUart/3xUSB2.0/PS2/PCIe/1 x/SW/LPC/Smbus) |
|
Internal Interfaces |
GPIO 1, 2 x 5 pin GPIO interface, 2.0mm FPANEL 1, 2 x 5-1 pin, 2.0mm COM COM5, RS232/TTL, 2 x 5 pin, 90°, 2.0mm COM6, RS232, 2 x 5 pin, 90°, 2.0mm USB2.0 2, 2x5-1 pin, 90°, 2.0mm (2*USB2.0) LVDS 1, 2 x 15 pin, 2.0mm EDP 1, 2 x 15 pin, 2.0mm INVERTER 1, 6 pin, 2.0mm SATA3.0 1 SATA Power 1, 4 pin, XH2.54mm, 90° CPU FAN 1, 4 pin, 2.54mm F_AUDIO 1, 2 x 5 pin, 2.0mm SPK_OUT 1, 1 x 4 pin, 2.0mm DC IN 1, 2 pin, VH3.96 VGA_OUT 1, 12 pin, PH2.0 IVNT 1, 2 pin, PH2.0 |
|
Power input
|
10~24V DC IN
|
|
Watchdog
|
Support
|
|
Dimension
|
168x 120 mm
|
|
Working environment |
Working temperture : -10℃ ~60℃
Storage temperture: -20℃ ~70℃
|
|
Relative humidity |
10%~90% （non-condensing）
|
