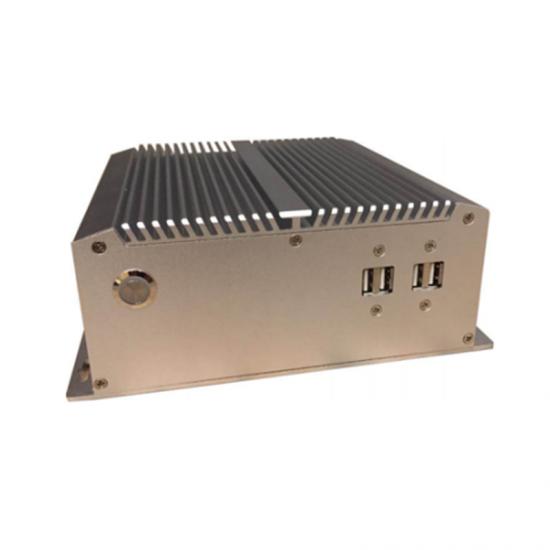

All-aluminum shell body design, excellent heat dissipation performance, suitable for use in small and complex industrial sites, safe and reliable
Item No.:
BOX2020006Product origin:
ChinaColor:
WhiteShipping port:
guangzhouLead Time:
71.The product is GA-H110TN motherboard
2.All-aluminum shell body design, excellent heat dissipation performance, suitable for use in small and complex industrial sites, safe and reliable
3.2 standard RS-232 interfaces, 2 RS485.RS422 mode adjustable, 8 USB interfaces (4 USB3.0)
4.Ultra-thin size, flexible integration
5.Fanless aluminum alloy case design
|
Motherboard |
The product is GA-H110TN motherboard |
|
CPU processor |
Support LGA1151 socket processor: Intel® Core ™ i7 processor / Intel® Core ™ i5 processor / Intel® Core ™ i3 processor / Intel® Pentium® processor / Intel® Celeron® processor |
|
RAM |
2 * DDR4 slots, support up to 32 GB DDR4 |
|
Front panel I/O interface |
1 * Power switch button 1 * POWER LED indicator 4 * USB interface |
|
Rear I/O interface |

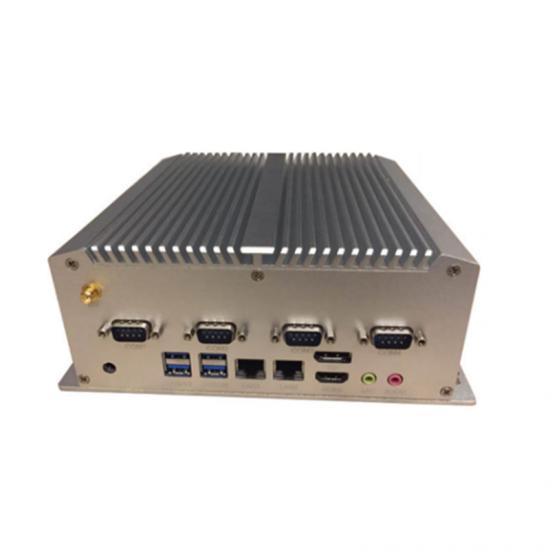

1 * DC input port 4 * USB 3.0 port 2 * RJ-45 network card port 1 * MIC_IN 1 * LINE_OUT 1 * Display PORT 1 * HDMI 4 * COM ports (2 COM adjustable RS485.RS422) 1 * WIFI antenna terminal |
|
storage |
1 built-in MSATA card slot |
|
Power mode |
On-board DC power supply wide voltage design, DC12V, 19V, 24V power adapter optional |
|
Dimensions |
210mm(width)x199mm(depth)X80mm(height) |
|
structure |
Fanless aluminum chassis design |
|
Ambient temperature |
Ambient air circulation: -20° C ~ 70° C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) |
|
storage temperature |
-20° C ~ 80° C Relative humidity: 10% ~ 93% (no condensation) |
|
Model |
Description |
|
BOX-5028
|
Embedded fanless machine/G4600T3.00 GHz processor/4G memory/128G SSD/DC12V-24V power supply/12V adapter/4 COM/2 Gigabit Ethernet ports/8 USB (4 USB2.0 4 USB3.0)/HDMI+DP/ Line-in+Line-out/WIFI
|
