Fanless high-strength steel plate metal body design, high expandability, suitable for complex industrial environments
Item No.:
BOX2020005Product origin:
ChinaColor:
WhiteShipping port:
guangzhouLead Time:
71.N3350 motherboard
2.Fanless design, enhanced high reliability performance
3.4 standard RS-232 interfaces, of which COM1, COM2, adjustable RS-422.RS-485, 2 USB interfaces to meet multiple expansion needs
4.Ultra-thin size, flexible integration, excellent sealing, dustproof, heat dissipation and vibration resistance. Compact and robust
5.Fanless high-strength steel plate metal body design, high expandability, suitable for complex industrial environments
|
Motherboard |
N3350 motherboard |
|
RAM |
1 * DDR3 SO-DIMM slot, support up to 8 GB DDR3 1066/1333/1600 SDRAM storage mode |
|
Front panel I/O interface |

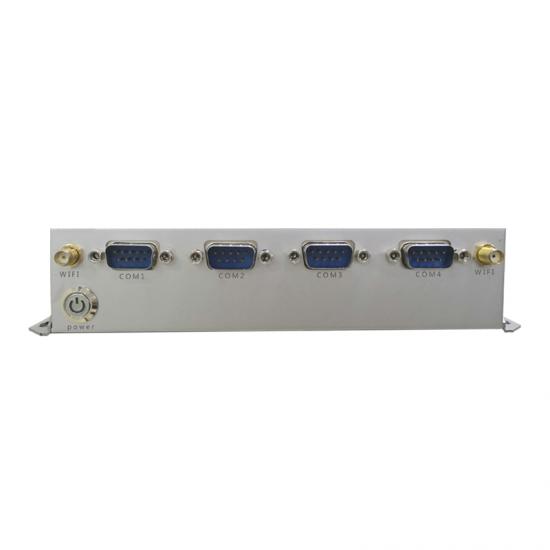

1 * Power switch button (with power light) 4 * COM port (COM1, COM2 adjustable RS-485, RS-422) 2 * WIFI antenna terminal (support 4G SIM card) |
|
Rear I/O interface |

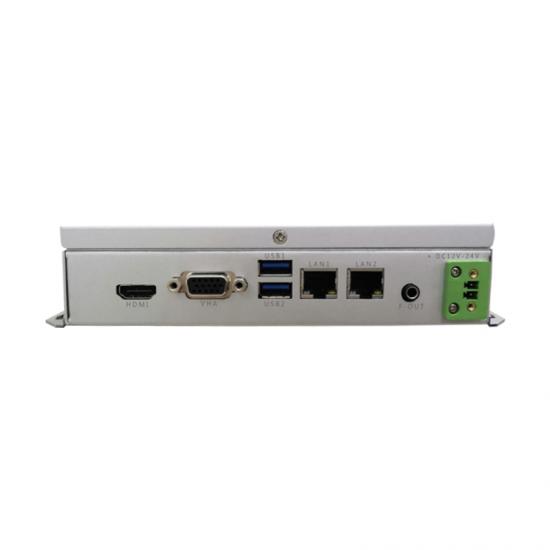

1 * 12V-24V DC input 2 hole Phoenix terminal 2 * USB 2.0 interface 2 * RJ-45 Ethernet port 1 * VGA port 1 * HDMI interface 1 * Audio JACK port Line-out |
|
storage |
1 built-in MSATA card slot |
|
Power mode |
On-board DC power supply design, support wide voltage DC12V-24V, above 60W power adapter optional |
|
Dimensions |
170mm(length)*120mm(width)*40mm(height) 184mm(length)*90mm(width)*40mm(height) with wall-mounted hole size |
|
structure |
Fanless high-strength steel sheet metal body design |
|
Ambient temperature |
Ambient air circulation: -20° C ~ 70° C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) |
|
storage temperature |
-20° C ~ 80° C Relative humidity: 10% ~ 93% (no condensation) |
|
Model |
Description |
|
BOX-5021
|
Embedded fanless machine/N3350 1.10 GHz processor/4G memory/128G SSD/DC12V power supply/12V adapter/4 COM (of which COM1 COM2 RS422 RS485 is adjustable)/2 Gigabit Ethernet ports/2 USB3.0 /VGA+HDMI/Line-out
|
