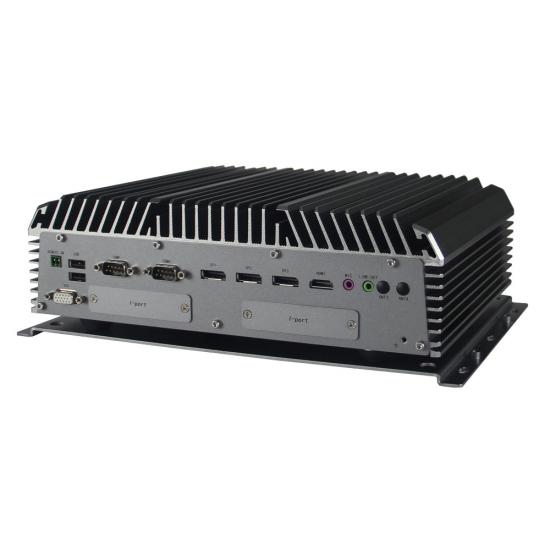

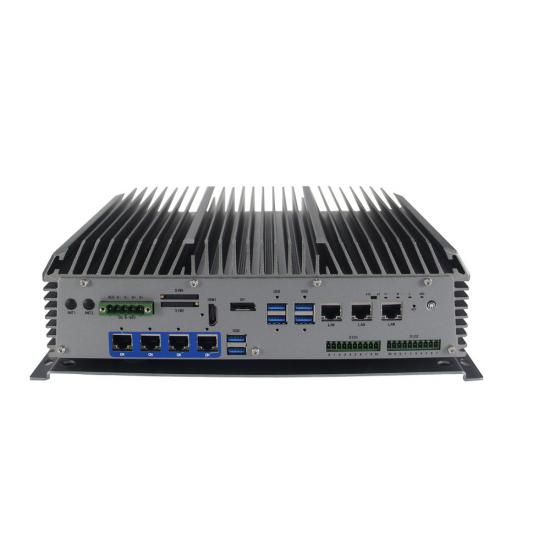

Intel Skylake-S/Kabylake-S Core I3/I5/I7 CPU, 3*LAN, 4*POE, 6*USB3.0, MXM3.1 GPU 6*4K display, 16-bit isolated DIO, ITPS car power supply
Item No.:
BOX20201102Product origin:
ChinaColor:
Silver grayShipping port:
guangzhouLead Time:
71.Aluminum rectangular profile shell, CPU fanless cooling design
2.Intel Kabylake-S/Skylake-S Core I3/I5/I7 CPU
3.2*DDR4 2133/ 2400MHz SODIMM memory, maximum 32GB
4.MXM3.1 NVIDIA/AMD GPU module
5.1*DP, 1*HDMI and 1*VGA three-core display, 3*DP and 1*HDMI four-single display
6.3*Gig LAN, 4*POE, 6*USB3.0, 3*USB2.0
7.2*COM, 16-bit isolated DIO, Audio out and Mic
8.2*Mini PCIe(PCIe+USB), 1*M.2 2242 B-Key
9.1*2.5" SATA3 drive frame, 1*mSATA; shock-absorbing mounting frame for the whole machine
10.DC 6~48V wide voltage power supply, ITPS vehicle management function
|
CPU |
The sixth-generation Intel Skylak e-S/the seventh-generation Intel Kabylake-S Celeron/Pentium/Core I3/I5/I7 CPU, LGA 1151 slot T(TE) power optimized version, TDP 35W fanless cooling |
|
System memory |
2*260-Pin SODIMM, dual channel DDR4 1866/2133MHz, max 32GB |
|
I/0 interface |
2*RJ45 Gig-LAN, 4*RJ45 Gig-POE anti-trip fastener screw hole (front panel) 6*USB3.0 Type A (front panel); 2*USB2.0 T ype A (rear panel), 1*USB2.0 Type A built-in 8-bit isolated output 1*10-pin terminal and 8-bit isolated input 1*10-pin terminal; optional 16-bit DIO 2*10-pin terminal (front panel); 2*RS232/422/485 DB9 male (rear) Panel) 1*Audio-out and 1*MIC 3.5 audio interface (rear panel)CPU core display 1*HDMI +1*DP+1*VGA (front panel); GPU independent display 3*DP+1*HDMI (rear panel) |
|
GPU & display |
Intel Gen. 9 HD Graphics, HEVC/H265 HW HD codec, nuclear display DP and HDMI are dual 4K UHD displays
GPU, 3*DP and 1*HDMI four 4K display |
|
I-port |
Optional 1*LPT or 2*USB2.0 or 2*Mini PCIe and M.2 function card interface, such as CAN BUS |
|
Ethernet |
2*Intel I210AT PCIe Gigabit Ethernet, 10/100/1000Mbps adaptive 4*Intel I210AT PCIe Gigabit Ethernet, full bandwidth POE, single TDP 15.4W power output |
|
storage |
1*2.5" HDD SATA3 shock-absorbing drive frame; 1*mSATA full-height card; 1*M.2 2242 B-key |
|
DIO |
16-bit TTL signal programmable input and output; optional 8-bit 2.5KV optically isolated input
(H:5-24V, L:0-1.5V), 8-bit 2.5KV optically isolated output (100mA) |
|
Audio |
Realtek ALC662VD audio, Audio out and MIC |
|
extension port |
1*Full-length Mini PCIe with PCIe X1+USB signal and SIM card slot, 1*Half-length Mini PCIe with PCIe X1+USB signal, 1*M.2 2242 B-key with SIM card slot, 1*Full-length Mini PCIe (SATA3+USB ), simultaneously supports dual 4G card wireless network, Wifi/BT communication and GPS/BDS navigation |
|
Indicator light |
1*Power indicator, 1*Hard disk indicator, 3*CPU temperature level indicator
(Red is alarm, Yellow is high temperature, Green is normal temperature) |
|
System control |
1*Power switch, 1*Reset switch (front panel); 1*2pin terminal switch signal (rear panel), 1*AT/ATX selector switch (front panel) |
|
Power requirements |
DC 6~48V input, with ACC signal, 5-pin terminal interface (front panel),
with 24V/9.17A power adapter Power consumption: TBD |
|
Watchdog timer |
Programmable timeout interrupt or system reset, 1 to 255 seconds |
|
operating system |
Windows 7, Windows 10, Linux Fedora Ubuntu |
|
structure |
Aluminum rectangular profile heat dissipation shell, SGCC front and rear painted panels, SGCC bottom cover and shock-absorbing bracket |
|
Operating temperature |
-20°C～65°C-CPU without fan, 35W CPU without GPU; -10°C ~ 45°C-CPU without fan, with fan GPU |
|
Storage temperature |
-40°C～85°C (-40°F～185°F) |
|
Storage humidity |
10~90%@40°C, non-condensing |
|
vibration |
5grms/5～500Hz/random/operation status (SSD); 1grms/5～500Hz/random/operation status (HDD) |
|
Shock |
50g peak acceleration (11ms duration) (SSD); 20g peak acceleration (11ms duration) (HDD) |
|
Installation method |
Desktop installation, cushion rubber feet for shock absorption installation |
|
size |
(W*H*D): 284*222*81.2mm |
|
net weight |
TBD
|
|
EMC |
CE/FCC Class A, E-Mark
|
