English
2U rackmount servers are suitable for industries that require server performance, scalability, and reliability, such as finance, transportation, telecommunications, and energy.
Item No.:
EIS2020001Product origin:
ChinaColor:
BlackShipping port:
guangzhouLead Time:

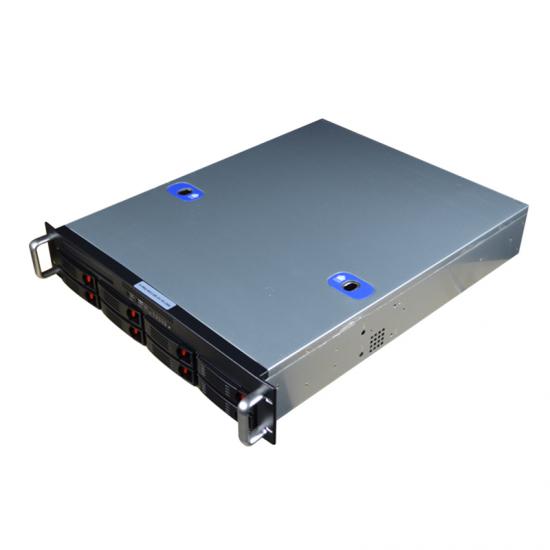

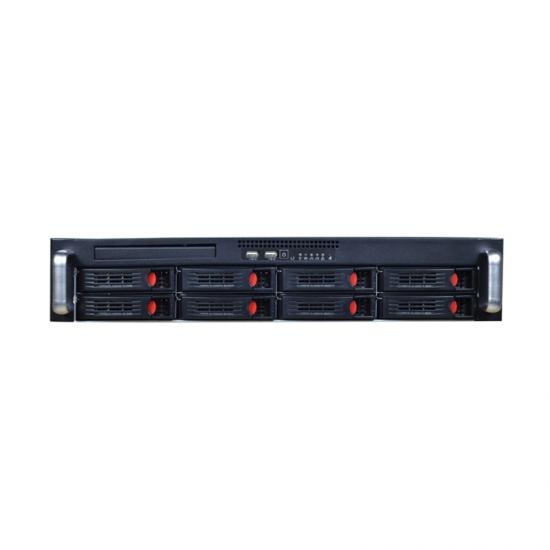

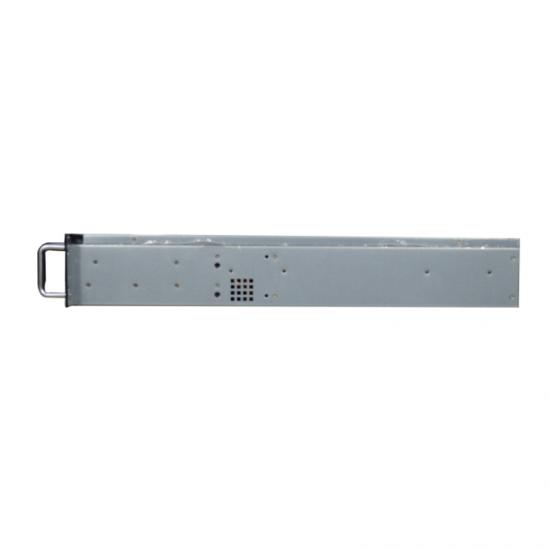

71.2U rackmount server
2.High performance, high scalability, high-end dual-channel rack
3.Alloy steel panel, strong reliability
4.Main applications: virtualization, medium-sized databases, HPC, hyper-converged computing
5.Standard 2U rack mount
6.It is suitable for industries that demand server performance, scalability and reliability, such as finance, transportation, telecommunications, and energy.
|
Appearance |
2U rack mount |
|
Adapter motherboard |
Compatible with motherboard H61/H81/H110 platform Micro-ATX/Mini-ATX series motherboard |
|
processor |
Matching motherboard one: GA-H81M-S2PH motherboard, CPU G1820 |
|
RAM |
Provides 2 standard DDR III 1333/1600MHz DIMM memory slots, supports a single memory with a maximum capacity of 8GB, and a total of 16GB |
|
I/O interface |

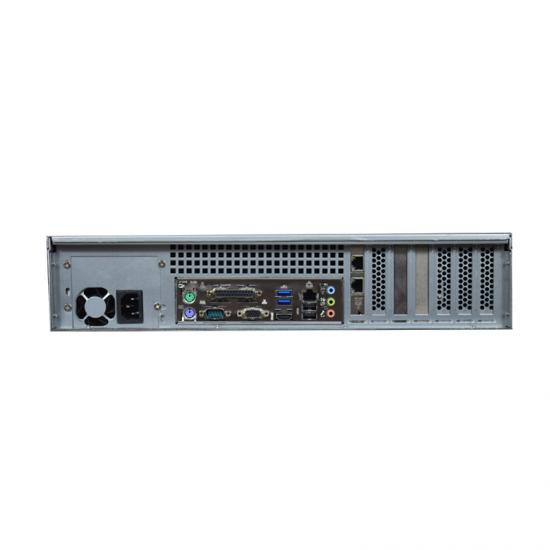

Power switch on the front panel. Indicator light. 2 USB2.0 ports, other IO ports are located behind; When matched with GA-H110M-S2PH motherboard, the rear IO interface is as follows: 2 USB2.0 ports 2 USB3.0 ports 1 COM port (this board can expand 1 more COM port) Motherboard display interface: VGA+HDMI 1 network port 1 PS/2 keyboard/mouse interface; 1 AUDIO: MIC-IN/LINE-IN/LINE-OUT; |
|
Memory |
Built-in 1 2.5-inch hard disk bay, front 8 3.5-inch hot-swappable hard disk bays (SATA hard disk) |
|
Bus extension |
The chassis has 7 slots. When matched with the motherboard GA-H81M-S2PH, 2 PCI+1 PCIE×1+1 PCIE×16 |
|
Operating temperature |
0℃～+50℃，5%～90% (non-condensing state) |
|
Storage environment |
-20℃～ +60℃, 5%～90% (non-condensing state) |
| Power supply |
Standard 2U ATX industrial power supply |
|
Chassis size |
Length 430* Depth 390* Height 88mm |
|
Model |
Description |
|
EIS-2080/GA-H81M-
S2PH/G1820/4G/120G SSD/510W |
2U rack-mounted server machine/GA-H81M-S2PH motherboard/2.8G dual-core dual-threaded at 2.8G frequency/4G memory/120G solid-state hard drive/8 3.5-inch hard drives (expandable)/ATX server 510W power supply/exposed interface: 1 Ethernet port, 1 RS232 serial port (1 serial port can be led out through the pin), VGA+HDMI (supports independent dual display), 6 USB front 2 rear 4 (including 2 USB3.0, 4 USB2.0) , 1 audio combination, 1 PS/2 keyboard and mouse interface, 1 LPT, 1 PCIE x16, 1 PCIE x1, 2 PCI.
|
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
