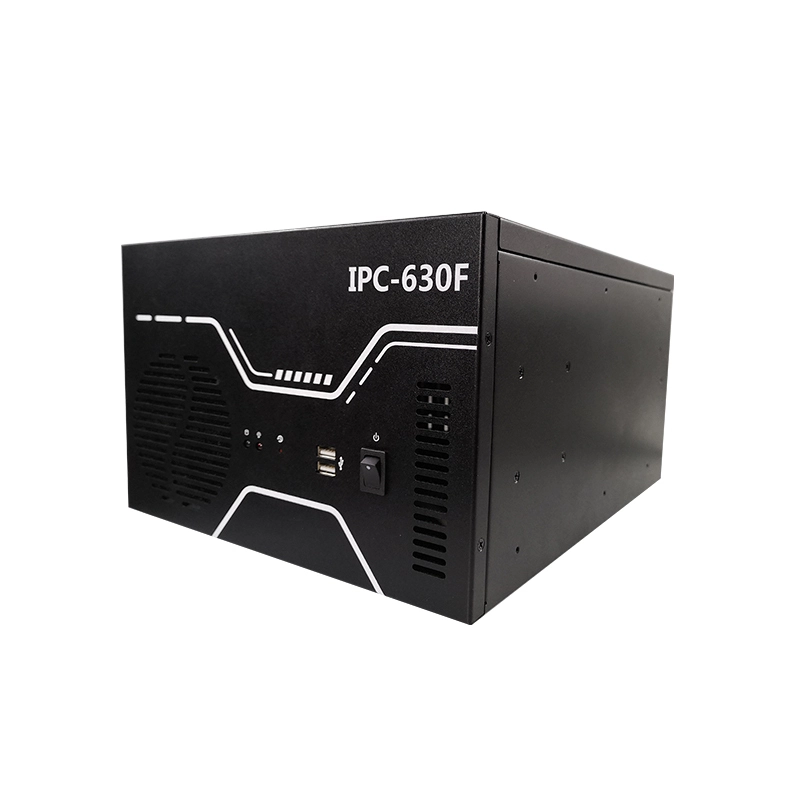

industrial control computer IPC-630F
◆Can install one 3.5-inch and one 2.5-inch hard drive at the same time
◆Can install up to 1 8025 fan, and is designed with dust filter cotton
◆Small size, strong scalability
◆Support 4 full-height expansion slots
◆Support standard Zhaoxin platform, MINI-ITX or Micro-ATX series industrial motherboards
◆Support standard ATX power supply
IPC-610H
◆The chassis is industrial gray (environmentally friendly, fingerprint-resistant 1.2mm SGCC)
◆Can install three 3.5-inch and two 2.5-inch hard drives at the same time
◆Two front 12025 silent fans + dust filter
◆Sufficient space inside the chassis for strong heat dissipation and expandability
◆Support 7 full-height expansion slots
◆Can be used with ATX, MicroATX or MINI-ITX series industrial motherboards
◆Standard ATX power supply
product size
|
Product Model |
IPC-610H |
|
|
Chassis type |
4U standard rackmount chassis |
|
|
System Configuration |
processor |
Supports Intel LGA1151 Gen6/7/8/9 i3/i5/i7/i9/G series CPUs |
|
chipset |
Intel® H110 |
|
|
Memory |
2 * DDR4 U-DIMM memory slots, support up to 64GB Different CPUs support memory specifications DDR4-2133/2400/2666 |
|
|
I/O Interface |
network |
H110-1, LAN1: i219V, LAN2: RTL8111H H110-2, LAN1: i219V, LAN2: Intel i226V |
|
USB |
6 rear IO USB (4 x USB 3.0 Type-A and 2 USB 2.0 Type-A) 3 internal USB (2 x USB 2.0 via header, 1 x USB 2.0 Type-A) |
|
|
Display Interface |
Triple display output DVI-D+VGA+HDMI, support independent dual display |
|
|
parallel port |
1 parallel port |
|
|
Serial Port |
COM1 supports RS232/422/485, COM2-6 support RS232 (expandable to 10 serials) |
|
|
Keyboard and mouse interface |
1 PS/2 keyboard and mouse via 2-in-1 connector on rear IO |
|
|
Memory |
2 x 2.5-inch hard drives |
|
|
Three 3.5” HDD spaces |
||
|
Expansion slot |
Provides 7 full-height expansion slots |
|
|
Work Environment |
Working temperature/humidity requirements: 0℃~+50℃; 5%~90% (non-condensing state) |
|
|
Non-operating temperature/humidity requirements: -20℃~+60℃; 5%~90% (non-condensing) |
||
|
power supply |
Standard ATX power supply |
|
|
shape |
482mm *172mm *482mm (excluding mounting ears) |
|
order information
|
IPC-610H |
IPC-610H 4U Rackmount/H110/I5-6500/8G/128G/8USB/6 Serial/2LAN 8111H,I219V,I225V/VGA+DVI+HDMI/1PCIE X16,1PCIEX4,2PCI /300W |
