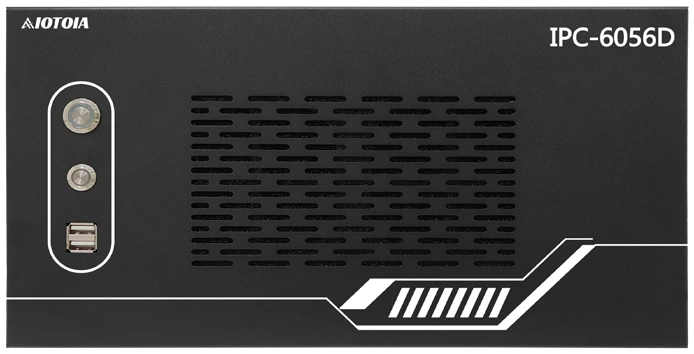

industrial control computer IPC-6056D
◆ Made of high-quality 1.2mm SGCC environmentally friendly steel, high-temperature spraying, wear-resistant and non-degradable, durable and corrosion-resistant, and the paint surface is resistant to stains and fingerprints
◆Can install two 2.5 and one 3.5 hard disk installation positions at the same time
◆Standard 2 8020 fans, good cooling effect, quiet and durable
◆Provide 7 full-height PCI/PCIE expansion slots to support full-length graphics cards
◆Perfectly compatible with ATX, Micro-ATX, Mini-ITX industrial motherboards
◆Standard 1U power supply
IPC-6056D
◆ Made of high-quality 1.2mm SGCC environmentally friendly steel, high-temperature spraying, wear-resistant and non-degradable, durable and corrosion-resistant, and the paint surface is resistant to stains and fingerprints
◆Can install two 2.5 and one 3.5 hard disk installation positions at the same time
◆Standard 2 8020 fans, good cooling effect, quiet and durable
◆Provide 7 full-height PCI/PCIE expansion slots to support full-length graphics cards
◆Perfectly compatible with ATX, Micro-ATX, Mini-ITX industrial motherboards
◆Standard 1U power supply
product size
|
Product Model |
IPC-6056D |
|
Chassis type |
Seven-slot compact wall-mounted unit |
|
Compatible motherboard |
Compatible with Intel H81/H110/C236/H510/W580/H610 and Zhaoxin platform ATX, MicroATX or MINI-ITX series industrial motherboards |
|
Front panel |
4 USB 2.0 |
|
6 COM |
|
|
1 illuminated power switch |
|
|
1 illuminated reset switch |
|
|
Memory |
2 built-in 2.5mm pre-installed positions |
|
1 3.5” hard drive installation position |
|
|
Expansion slot |
Provides 7 full-height PCI/PCIE expansion slots with pressure strips and fixing brackets to support full-length graphics cards |
|
Work Environment |
Working temperature/humidity requirements: 0℃~+50℃; 5%~90% (non-condensing state) |
|
Non-operating temperature/humidity requirements: -20℃~+60℃; 5%~90% (non-condensing) |
|
|
power supply |
FLEX-ATX Power Supplies |
|
shape |
330×180×325mm(W*H*D) |
order information
|
IPC-6056D-01 |
IPC-6056D Wall-mount/H81/I5-4570/8G/128G/8USB/6 serial/2LAN 8111H,I218,I225V/VGA+DVI+HDMI/1PCIE x16,1PCIE x4 (signal x1), 5PCI/1U ATX 300W power supply |
|
IPC-6056D-02 |
IPC-6056D Wall-mount/H110/I5-6500/8G/128G/8USB/6 serial/2LAN 8111H,I219V,I225V/VGA+DVI+HDMI/1PCIE x16,2PCIE x4 (signal x1), 4PCI/1U ATX 300W power supply |
|
IPC-6056D-03 |
IPC-6056D Wall-mounted/C236/I7-7700/8G/128G/8USB/6 serial/2LAN 8111H, I219V, I225V/VGA+DVI+HDMI/2PCIE x16 (8 signal ports), 2PCIE x4, 1PCIE x4 (1 signal port), 2PCI/1U ATX 300W power supply |
|
IPC-6056D-04 |
IPC-6056D Wall-mount/H510/I5-10400/8G/128G/10USB/6 serial/2LAN I219V, I225V/VGA+DP+HDMI+DVI/1PCIE x16, 1PCIE x4, 5PCI/1U ATX 300W power supply |
|
IPC-6056D-05 |
IPC-6056D Wall-mounted/W580/I7-11700/8G/128G/12USB/6 serial/2LAN I219V, I225V/DP+DP+HDMI/2PCIE x16 (x8 when card inserted), 3PCIE x4, 1PCIE x4 (signal x1), 1PCI/1U Power Supply ATX 400W |
|
IPC-6056D-06 |
IPC-6056D Wall-mounted/H610/I5-12400/8G/128G/10USB/6 serial/2LAN I219V, I226V/VGA+DP+HDMI/1PCIE x16, 2PCIE x4 (signal x2), 4PCI/1U ATX 400W power supply |
|
IPC-6056D-07 |
IPC-6056D Wall-mount / Zhaoxin KX6000 / KX-U6580 / 8G / 128G / 16USB / 6 serial / 2LAN I210AT / VGA + HDMI / 1PCIE x16 (signal x8), 1PCIE x4, 2PCI / 1U ATX 300W power supply |
