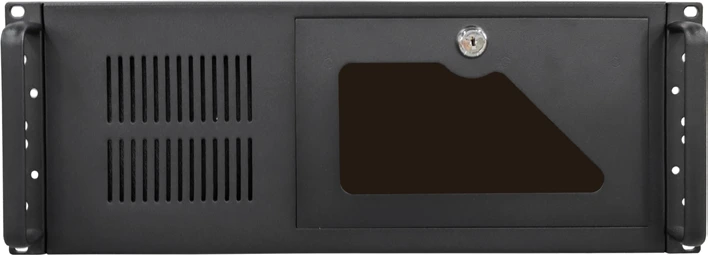

industrial control computer IPC-6041
◆The chassis is industrial black, Ma steel (environmentally friendly, fingerprint resistant 1.0mm SGCC)
◆Can install 8 3.5-inch hard disks and 1 2.5-inch hard disk at the same time
◆Support 5.25-inch optical drive
◆Standard configuration: 1 12cm fan and 1 8cm fan
◆Support 7 full-height expansion slots
◆The chassis can be installed with standard ATX/Micro-ATX motherboard
◆Support standard ATX power supply
IPC-6041
◆The chassis is industrial black, Ma steel (environmentally friendly, fingerprint resistant 1.0mm SGCC)
◆Can install 8 3.5-inch hard disks and 1 2.5-inch hard disk at the same time
◆Support 5.25-inch optical drive
◆Standard configuration: 1 12cm fan and 1 8cm fan
◆Support 7 full-height expansion slots
◆The chassis can be installed with standard ATX/Micro-ATX motherboard
◆Support standard ATX power supply
product size
|
Product Model |
IPC-6041 |
|
Chassis type |
4U standard rackmount chassis |
|
Compatible motherboard |
Compatible with Intel H81/H110/C236/H510/W580/H610/W680/W680D and Zhaoxin platform ATX, MicroATX or MINI ITX series Industrial motherboard |
|
Front panel |
1 power on/off button |
|
1 reset switch button |
|
|
1 LED power light |
|
|
1 LED hard drive light |
|
|
2 USB2.0 |
|
|
Memory |
One 5.25" CD-ROM space |
|
8 3.5” HDD spaces |
|
|
Expansion slot |
Provides 7 full-height expansion slots |
|
Work Environment |
Working temperature/humidity requirements: 0℃~+50℃; 5%~90% (non-condensing state) |
|
Non-operating temperature/humidity requirements: -20℃~+60℃; 5%~90% (non-condensing) |
|
|
power supply |
Standard ATX power supply |
|
shape |
482×177×430mm(W*H*D) |
order information
|
IPC-6041-01 |
IPC-6041 4U Rackmount/H81/I5-4570/8G/128G/8USB/6 Serial/2LAN 8111H,I218,I225V/VGA+DVI+HDMI/1PCIE x16,1PCIE x4 (signal x1),5PCI/ATX 300W |
|
IPC-6041-02 |
IPC-6041 4U Rackmount/H110/I5-6500/8G/128G/8USB/6 Serial/2LAN 8111H,I219V,I225V/VGA+DVI+HDMI/1PCIE x16,2PCIE x4 (signal x1),4PCI/ATX 300W |
|
IPC-6041-03 |
IPC-6041 4U rackmount/C236/I7-7700/8G/128G/8USB/6 serial/2LAN 8111H,I219V,I225V/VGA+DVI+HDMI/2PCIE x16 (8 signal ports), 2PCIE x4, 1PCIE x4 (1 signal port), 2PCI/ATX 300W |
|
IPC-6041-04 |
IPC-6041 4U Rackmount/H510/I5-10400/16G/128G/10USB/6 Serial/2LAN I219V,I225V/VGA+DP+HDMI+DVI/1PCIE X16,1PCIE X4,5PCI/ATX 300W |
|
IPC-6041-05 |
IPC-6041 4U rackmount/W580/I7-11700/16G/128G/12USB/6 serial/2LAN I219V, I225V/DP+DP+HDMI/2PCIE x16 (x8 when card inserted), 3PCIE x4, 1PCIE x4 (signal x1), 1PCI/ATX 500W |
|
IPC-6041-06 |
IPC-6041 4U Rackmount/H610/I5-12400/16G/128G/10USB/6 Serial/2LAN I219V, I226V/VGA+DP+HDMI/1PCIE x16, 2PCIE x4 (Signal x2), 4PCI/ATX 500W |
|
IPC-6041-07 |
IPC-6041 4U rackmount/W680/I7-13700/16G/128G/10USB/6 serial/2LAN I219V, I226V/DP+DP+HDMI/1PCIE X16, 1PCIE X16 (signal x4), 3PCIE X4, 2PCI/ATX 500W |
|
IPC-6041-08 |
IPC-6041 4U rackmount/W680D/I9-13900/16G/128G/10USB/6 serial/2LAN I219V, I226V/DP+DP+HDMI/2PCIE x16 (signal x8), 4PCIE x4, 1PCI/ATX 500W |
|
IPC-6041-09 |
IPC-6041 4U rackmount / Zhaoxin KX6000 / KX-U6580 / 8G / 128G / 16USB / 6 serial / 2LAN I210AT / VGA + HDMI / 1PCIE x16 (signal x8), 1PCIE x4, 2PCI / ATX 300W |
