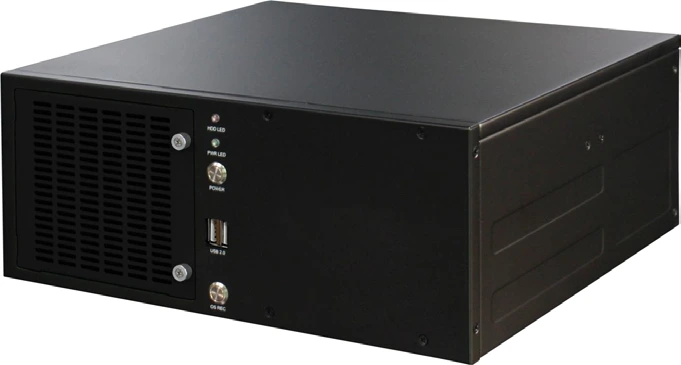

industrial control computer IPC-6037
◆The chassis is industrial black, Ma steel (environmentally friendly, fingerprint resistant 1.0mm SGCC)
◆Can install one 3.5-inch and one 2.5-inch hard drive at the same time
◆1 front 12025B fan
◆Small size, strong scalability
◆Support 7 full-height expansion slots
◆ Standard 12"×9.6" and below motherboard size
◆ FLEX 1U power supply
IPC-6037
◆The chassis is industrial black, Ma steel (environmentally friendly, fingerprint resistant 1.0mm SGCC)
◆Can install one 3.5-inch and one 2.5-inch hard drive at the same time
◆1 front 12025B fan
◆Small size, strong scalability
◆Support 7 full-height expansion slots
◆ Standard 12"×9.6" and below motherboard size
◆ FLEX 1U power supply
product size
|
Product Model |
IPC-6037 |
|
Chassis type |
Seven-slot compact wall-mounted unit |
|
Compatible motherboard |
Compatible with H81/H110/C236/H510/H610/Micro-ATX/MINI-ITX series industrial motherboards |
|
Front panel |
1 power on/off button |
|
1 reset switch button |
|
|
1 LED power light |
|
|
1 LED hard drive light |
|
|
2 USB2.0 |
|
|
Memory |
1 2.5-inch hard drive |
|
1 3.5-inch hard drive |
|
|
Expansion slot |
Provides 7 full-height expansion slots |
|
Work Environment |
Working temperature/humidity requirements: 0℃~+50℃; 5%~90% (non-condensing state) |
|
Non-operating temperature/humidity requirements: -20℃~+60℃; 5%~90% (non-condensing) |
|
|
power supply |
FLEX 1U Power Supply |
|
shape |
330×135×300mm(W*H*D) |
order information
|
IPC-6037-01 |
IPC-6037 Wall-mounted/H81/I5-4570/8G/128G/8USB/6 serial/2LAN 8111H,I218,I225V/VGA+DVI+HDMI/1PCIE x16,1PCIE x4 (signal x2), 2PCI/1U 300W |
|
IPC-6037-02 |
IPC-6037 Wall-mount/H110/I5-6500/8G/128G/8USB/6 serial/2LAN 8111H,I219V，I225V/VGA+DVI+HDMI/1PCIE X16,1PCIE X4,2PCI/1U 300W |
|
IPC-6037-03 |
IPC-6037 Wall-mount/H510/I5-10400/8G/128G/10USB/6 serial/2LAN I219V,I226V/VGA+DP+HDMI/1PCIE X16,1PCIE X4,2PCI/1U 300W |
|
IPC-6037-04 |
IPC-6037 Wall-mount/H610/I5-12400/8G/128G/10USB/6 serial/2LAN I219V,I226V/VGA+DP+HDMI/1PCIE X16,1PCIE X4,2PCI/1U 500W |
|
IPC-6037-05 |
IPC-6037 Wall-mounted / Zhaoxin KX6000 / KX-U6580 / 8G / 128G / 16USB / 6 serial / 2LAN I210AT / VGA + HDMI / 1PCIE x16 (signal x8), 1PCIE x4, 2PCI / 1U 300W |
