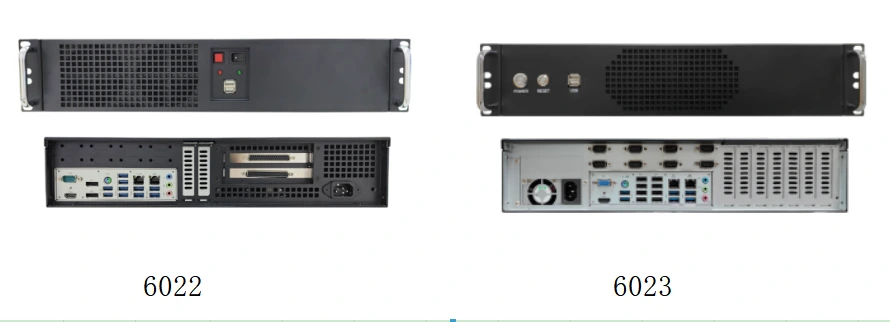

industrial control computer IPC-6023
◆Can install two 3.5-inch and one 2.5-inch hard drives at the same time
◆Can be installed with up to 2 cooling fans, and is designed with dust filter cotton
◆Rich interfaces, multiple USB and multiple strings, strong scalability
◆Support 7 half-height expansion slots
◆Support standard Zhaoxin platform, MINI-ITX or Micro-ATX series industrial motherboards
◆ FLEX-ATX power supply
IPC-6023
◆The chassis is industrial black, and the inner surface and contact surface are anti-bake
◆Can install two 3.5-inch and one 2.5-inch hard drives at the same time
◆Can be installed with up to 2 cooling fans, and is designed with dust filter cotton
◆Rich interfaces, multiple USB and multiple strings, strong scalability
◆Support 7 half-height expansion slots
◆Support standard Zhaoxin platform, MINI-ITX or Micro-ATX series industrial motherboards
◆ FLEX-ATX power supply
product size
|
Product Model |
IPC-6023 |
|
Chassis type |
2U standard rackmount chassis |
|
Compatible motherboard |
Compatible with Intel H81/H110/Zhaoxin platform MINI-ITX or Micro-ATX series industrial motherboards |
|
Front panel |
2 USB 2.0 |
|
Illuminated power switch |
|
|
Illuminated reset switch |
|
|
Memory |
2 2.5-inch hard drive vibration damping positions |
|
1 3.5-inch hard drive vibration damper |
|
|
Expansion slot |
Provides 7 half-height expansion slots |
|
Work Environment |
Working temperature/humidity requirements: 0℃~+50℃; 5%~90% (non-condensing state) |
|
Non-operating temperature/humidity requirements: -20℃~+60℃; 5%~90% (non-condensing) |
|
|
power supply |
FLEX-ATX Power Supplies |
|
shape |
482×88×420mm(W*H*D) (Depth 300/420mm (optional) (Including ears and handles) |
order information
|
IPC-6023-01 |
IPC-6023 2U rackmount / Zhaoxin KX6000 / KX-U6580 / 8G / 128G / 16USB / 6 serial / 2LAN I210AT / VGA + HDMI / 1PCIE x16 (signal x8), 1PCIEX4, 2PCI / FLEX-ATX power supply |
|
IPC-6023-02 |
IPC-6023 2U rackmount/H81/I5-4570/8G/128G/8USB/6 serial/2LAN 8111H,I218,I225V/VGA+DVI+HDMI/1PCIE x16,1PCIE x4 (signal x2),2PCI/FLEX-ATX power supply |
|
IPC-6023-03 |
IPC-6023 2U Rackmount/H110/I5-6500/8G/128G/8USB/6 Serial/2LAN 8111H,I219V,I225V/VGA+DVI+HDMI/1PCIE X16,1PCIE X4,2PCI/FLEX-ATX Power Supply |
