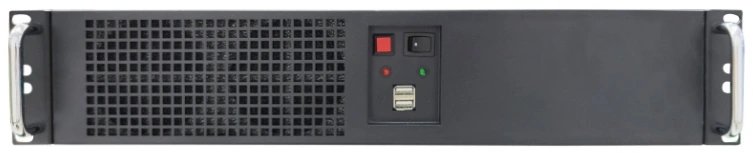

industrial control computer IPC-6022
◆Can install 3 3.5-inch hard disks at the same time
◆Can be installed with up to 2 cooling fans, and is designed with dust filter cotton
◆Rich interfaces, multiple USB and multiple strings, strong scalability
◆Support 2 half-height slots and 2 full-height slots
◆Support various ATX industrial motherboards, Micro-ATX industrial motherboards
◆Standard 2U ATX power supply
IPC-6022
◆The chassis is industrial black, and the inner surface and contact surface are anti-bake
◆Can install 3 3.5-inch hard disks at the same time
◆Can be installed with up to 2 cooling fans, and is designed with dust filter cotton
◆Rich interfaces, multiple USB and multiple strings, strong scalability
◆Support 2 half-height slots and 2 full-height slots
◆Support various ATX industrial motherboards, Micro-ATX industrial motherboards
◆Standard 2U ATX power supply
product size
|
Product Model |
IPC-6022 |
|
Chassis type |
2U standard rackmount chassis |
|
Compatible motherboard |
Supports various ATX industrial motherboards and Micro-ATX industrial motherboards. The specific model depends on the motherboard model. |
|
Front panel |
2 USB 2.0 |
|
Power switch button |
|
|
Reset switch button |
|
|
LED power light |
|
|
LED hard drive light |
|
|
Memory |
3 3.5-inch hard drive vibration damping positions |
|
Expansion slot |
PCIE+PCI (2 half-height slots, 2 full-height slots) expansion depends on the motherboard model |
|
Work Environment |
Working temperature/humidity requirements: 0℃~+50℃; 5%~90% (non-condensing state) |
|
Non-operating temperature/humidity requirements: -20℃~+60℃; 5%~90% (non-condensing) |
|
|
power supply |
Standard 2U ATX power supply |
|
shape |
482×88×428mm(W*H*D) (Including ears and handles) |
order information
|
IPC-6022-01 |
IPC-6022 2U rackmount / Zhaoxin KX6000 / KX-U6580 / 8G / 128G / 16USB / 6 serial / 2LAN I210AT / VGA + HDMI / support for 2 PCI full-height expansion cards / ATX 300W |
|
IPC-6022-02 |
IPC-6022 2U rackmount/H81/I5-4570/8G/128G/8USB/6 serial/2LAN 8111H,I218,I225V/VGA+DVI+HDMI/supports expansion of 2 full-height PCI cards/ATX 300W |
|
IPC-6022-03 |
IPC-6022 2U rackmount/H110/I5-6500/8G/128G/8USB/6 serial/2LAN 8111H,I219V,I225V/VGA+DVI+HDMI/supports expansion of 2 full-height PCI cards/ ATX 300W |
