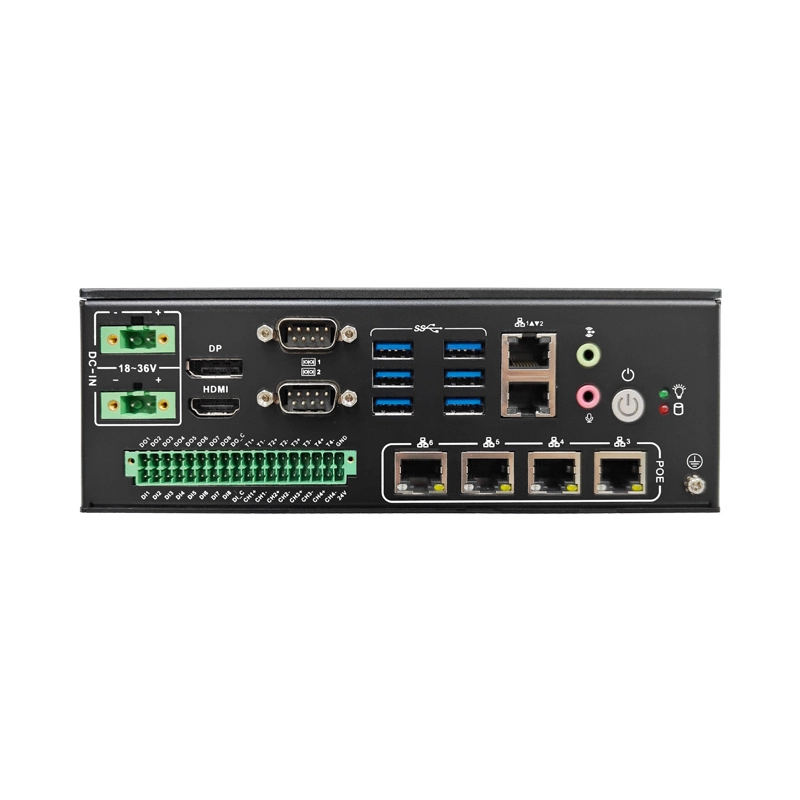

Fanless embedded complete machine M58-H610
Independent fan heater design, with IP5X dust-proof rating inside the main unit
Fully sealed, dust-proof, and anti-interference, fanless design
6*G-LAN/6*USB/2*COM/1*HDMI/1*DP
16-channel isolated DIO
4-channel light source output
7*24 hours continuous operation
M58-H610
Supports Intel 12th/13th generation Core i3/i5/i7 series, or Pentium and Celeron series
Independent fan heater design, with IP5X dust-proof rating inside the main unit
Fully sealed, dust-proof, and anti-interference, fanless design
6*G-LAN/6*USB/2*COM/1*HDMI/1*DP
16-channel isolated DIO
4-channel light source output
7*24 hours continuous operation
product size
| Product model |
M58-H610 |
||
|
System configuration |
Processor: Intel 12th/13th Core i3/i5/i7 Pentium/Celeron LGA1700 processor, TDP 65W
Chipset H610/Q670
Memory: 2 DDR4-3200MT/s SO-DIMM slots, supporting up to 64GB
|
||
|
I/O interface |
Network ports: 6 RJ45 Gigabit network ports, of which LAN3~6 support POE 802.3AF protocol standard
1 HDMI port, 1 DP port
1 VGA and 1 HDMI
USB 6 USB3.0 interfaces
COM 2 RS232 serial ports (both serial ports support RS232/485/422)
DI/DO: 1 composite IO interface (8-channel isolated DI & 8-channel isolated DO, 4-channel light source output, 4-channel external trigger input)
Antenna 3 SMA antenna expansion holes
Switch: 1 POWER switch button
Power interface 5.08-2*2PIN plug-in wiring terminal
|
||
|
expansion bus |
1 x M.2 3042/52 B-Key (support for expansion of 4G/5G modules) 1 x M.2 2230 E-Key (supports WIFI+ Bluetooth) |
|
|
| memory |
1 x M.2 2280 M-Key (supports NVME/SATA3.0)
1x 2.5-inch SATA3.0 hard drive expansion slot
|
||
| Installation method | Wall-mounted installation / Book-style installation | ||
| Operating system |
Win10/Win11/Linux | ||
| Chassis size |
200×164×69mm(D*W*H) | ||
| Working environment |
Operating temperature/humidity requirements: 0℃ to 60℃ Celsius, 5% to 90% (non-condensing)
Non-operating temperature/humidity requirements: -40℃ to 70℃; humidity: 5% to 90% (non-condensing)
|
||
| Power Supply |
18 ~ 36V DC input |
order information
| M58-H610-01 | Fanless embedded computer /I5-12400/8G/512G/6USB/2 serial ports /6 LAN ports/HDMI/DP/16-channel DIO/4-channel light source output /DC 24V 6.25A adapter |
