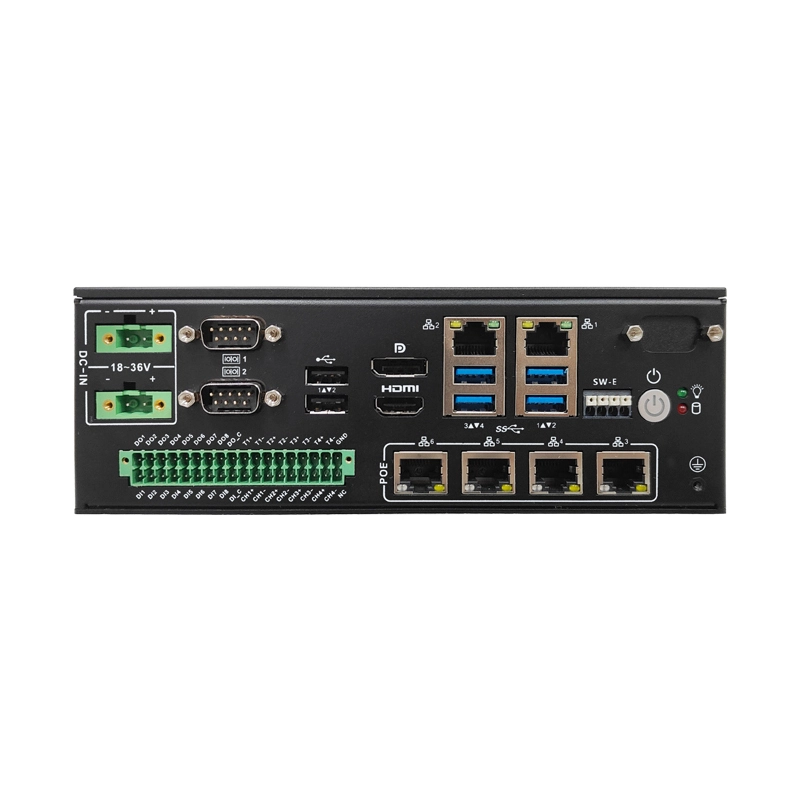

Fanless embedded complete machine M58-H110
Independent fan heater design, with IP5X dust-proof rating inside the main unit
Fully sealed, dust-proof, and anti-interference, fanless design
6*G-LAN/6*USB/2*COM/1*HDMI/1*DP
16-way isolation DIO
4-channel PWM regulated light source
7*24 hours continuous operation
M58-H110
Intel 6th/7th/8th/9th generation Core desktop high-performance processors
Independent fan heater design, with IP5X dust-proof rating inside the main unit
Fully sealed, dust-proof, and anti-interference, fanless design
6*G-LAN/6*USB/2*COM/1*HDMI/1*DP
16-way isolation DIO
4-channel PWM regulated light source
7*24 hours continuous operation
product size
| Product model |
M58-H110 |
||
|
System configuration |
Processor Optional core board series J6412/N97/I5-4210U/I5-7200U/I5-7500U/I5-8250U/I5-1135G7/I5-1235U
Chipset SOC
Memory: DDR4-3200, 1 * SO-DIMM, supporting up to 64 GB
|
||
|
I/O interface |
Network ports: 6 Gigabit RJ45 interfaces (LAN1: I219LV, LAN2 ~ 6: Intel I210AT network card)
HDMI 1 x DP
1 VGA and 1 HDMI
USB: 4 USB3.0 ports, 2 USB2.0 ports
COM 2 serial ports (BOM optional RS232/485, default RS232)
DI/DO: 8 digital inputs (NPN or PNP type), 8 digital outputs (NPN type, supporting 300mA current)
Light source: 4 light source channels (24V/75W total output) + 4 external trigger inputs
Antenna: 3 SMA antenna expansion holes
Switch: 1 POWER switch button
Power interface 5.08-2*2PIN plug-in wiring terminal
|
||
|
expansion bus |
1 Mini-PCIe full-length expansion slot (supporting 4G/WIFI module expansion) 1 SW-E remote power on/off button expansion interface (with power indicator light) |
||
| memory |
Supports M.2 2280 SATA3.0 SSD, and supports 1x 2.5-inch SATA hard drive expansion
|
||
| Installation method | Wall-mounted installation / Book-style installation | ||
| Operating system |
Win10/Win11/Linux | ||
| Chassis size |
200×164×69mm(D*W*H) | ||
| Working environment |
Operating temperature/humidity requirements: 0℃ to 60℃ Celsius, 5% to 90% (non-condensing)
Non-operating temperature/humidity requirements: -40℃ to 70℃; humidity: 5% to 90% (non-condensing)
|
||
| Power Supply |
18 ~ 36V DC input (default 24V/180W adapter) |
order information
| M58-H110-01 | Fanless embedded computer / I5-6500 / 8G / 128G / 6USB / 2 serial ports / 6 LAN ports / HDMI / DP / 16-channel DIO / 4-channel light source / DC 24V 6.25A adapter |
