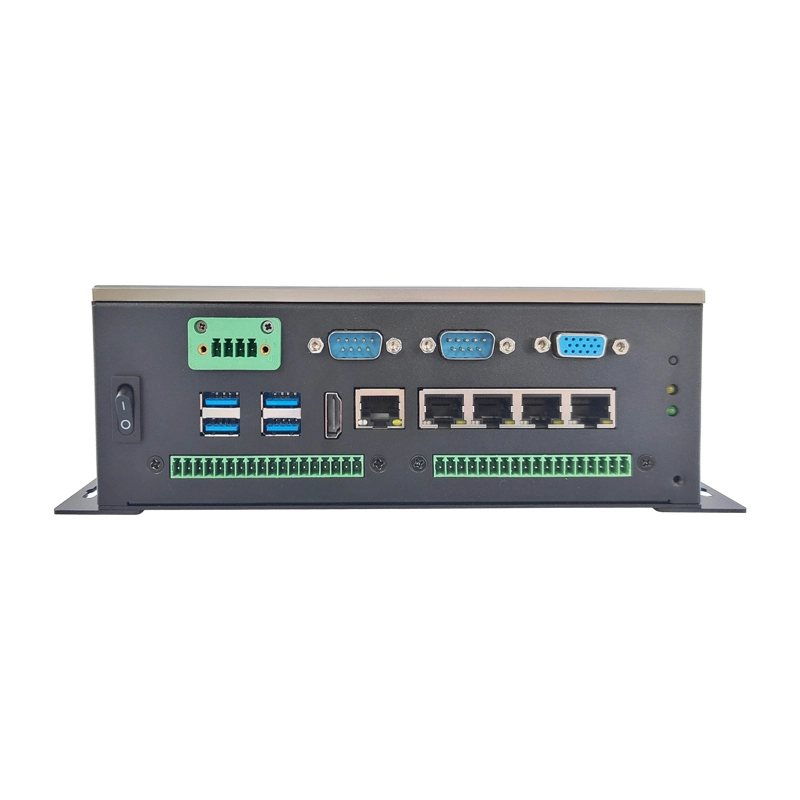

Fanless embedded complete machine M56
M56
Designed based on the Intel Core 11th generation processor platform Tiger Lake UP3
The heat dissipation components of the product primarily utilize aluminum profiles with excellent heat dissipation performance
Fully sealed, dust-proof, and anti-interference, fanless design
Supports 2 COM ports, 4 USB ports, and 5 LAN ports
16 DI and 16 DO: DIO interfaces with optocoupler isolation, with an isolation voltage of DC 5KV;
Small size, strong expansion capability
7*24 hours continuous operation
product size
| Product model |
M56 |
|
System configuration |
Processor: Integrated Intel® Tiger Lake 11th Core i5-1155G7 2.4GHz quad-core eight-thread processor, TDP 28W is compatible with Intel® Tiger Lake-U Celeron/Pentium/Core i3/i5/i7 processors Chipset SOC Memory: 1*DDR4-3200MT/s laptop memory, Max 32GB |
|
I/O interface |
There are 5 RJ45 Gigabit Ethernet ports, LAN1 to LAN5, all of which use Intel I211AT. LAN1 to LAN4 support POE,
Compliant with 802.3af standard (single port maximum 15.4W), with a total POE power not exceeding 45W
HDMI: 1 HDMI port
1x VGA port
USB 4 USB3.0 interfaces
COM 2 COM interfaces: Serial port 1 is RS232, and Serial port 2 supports BOM switching between RS232/485, with RS232 as the default
DI/DO: 16 digital inputs (DI) and 16 digital outputs (DO): The DIO interface is equipped with optocoupler isolation, with an isolation voltage of DC 5KV;
Antennas: 2 WIFI antennas
Switch: 1 rocker switch
1 Reset button
Power Supply Interface: 1 DC IN Interface (DC Power Supply Interface 4pin Phoenix Connector)
|
|
Expansion bus |
1*MINI-PCIE slot, supporting 4G/WIFI |
|
memory |
1*M.2 2280 M-Key slot
1*SATA3.0 interface 2.5-inch hard drive expansion slot
|
| Installation methods | Wall Mount, VESA Mount |
| Weight |
* |
| Operating system |
Win10/Linux,64bit
|
| Chassis size |
200×150×72mm(W*H*D)
|
| work environment |
Operating temperature/humidity requirements: 0℃～ 60℃ Celsius, 5% ～ 90% (non-condensing)
Non-operating temperature/humidity requirements: -40℃ to 70℃; humidity: 5% to 90% (non-condensing) |
| Power supply |
9 ~ 36V DC input |
order information
| M56-01 | Embedded system / Cooling fin (with fan) / I5-1155G7 / 8GB / 128GB / 4 USB ports / 2 serial ports / 5 LAN ports (I211AT) / VGA + HDMI / 32-channel DIO / DC12V 7A adapter |
