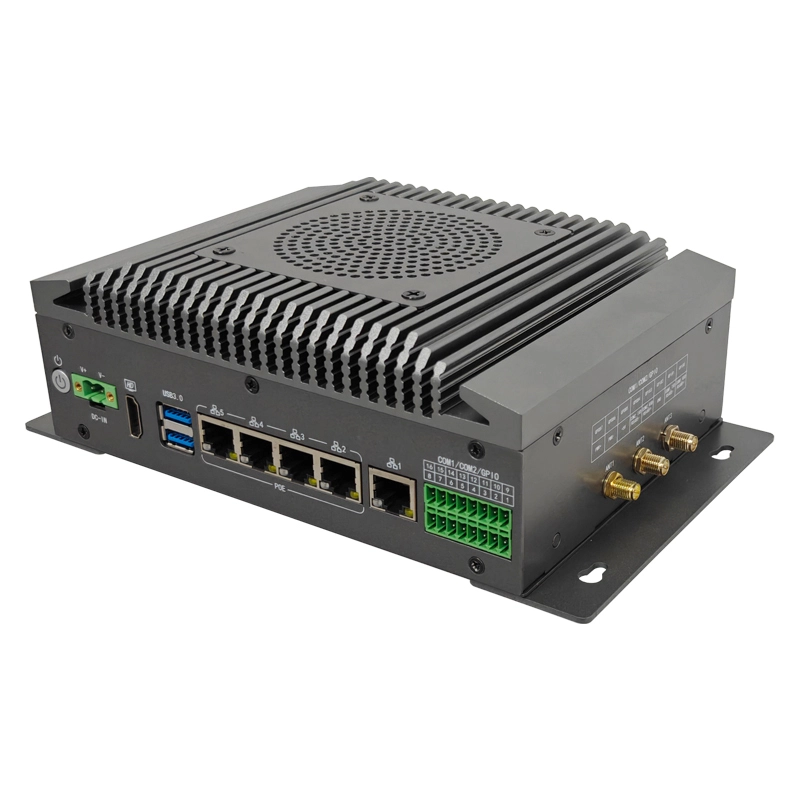

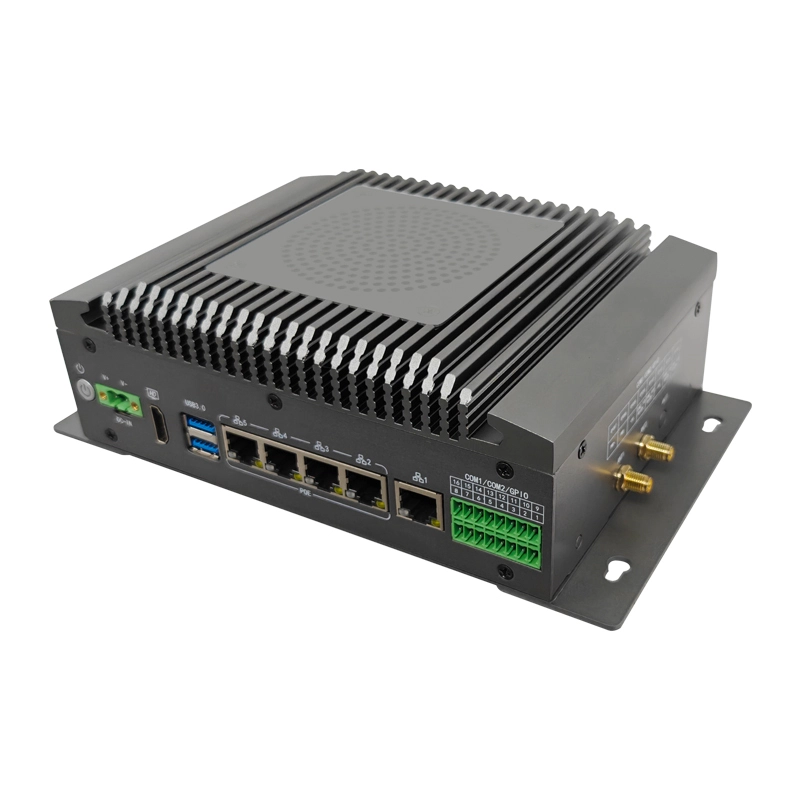

Fanless embedded complete machine M55
The entire machine adopts a modular design with a basic interface carrier board and CPU core board. The optional core board series includes J6412/N97/I5-4210U/I5-7200U/I5-7500U/I5-8250U/I5-1135G7/I5-1235U, etc ..
Fully sealed, dust-proof, and anti-interference design, fanless design, and aluminum profile heat dissipation design
The product is equipped with a rich array of I/O interfaces: 5 Intel GbE Gigabit Ethernet ports, 4 USB3.0 ports, 2 USB2.0 ports, and 5 COM ports
7*24 hours continuous operation
M55
Robust aluminum profiles and galvanized steel sheet casing
The entire machine adopts a modular design with a basic interface carrier board and CPU core board. The optional core board series includes J6412/N97/I5-4210U/I5-7200U/I5-7500U/I5-8250U/I5-1135G7/I5-1235U, etc ..
Fully sealed, dust-proof, and anti-interference design, fanless design, and aluminum profile heat dissipation design
The product is equipped with a rich array of I/O interfaces: 5 Intel GbE Gigabit Ethernet ports, 4 USB3.0 ports, 2 USB2.0 ports, and 5 COM ports
7*24 hours continuous operation
product size
| Product model |
M55 |
|
System configuration |
Processor Optional core board series J6412/N97/I5-4210U/I5-7200U/I5-7500U/I5-8250U/I5-1135G7/I5-1235U
Chipset SOC
Memory: DDR4-3200, 1 * SO-DIMM, supporting up to 64 GB
|
|
I/O interface |
5 network ports, equipped with Intel I210AT 1Gbps PCIe Ethernet controllers, LAN 2-5 with POE functionality
HDMI: 1 HDMI port
1 DP interface
USB 4 USB3.0 interfaces / 2 USB2.0 interfaces
COM 2 RS232/485 interfaces / 3 RS232 DB9 interfaces / COM6 and audio, DP interfaces (choose one from two) default to audio and DP interfaces
GPIO 8-channel GPIO (4 inputs, 4 outputs)
One MINI-PCIE slot for Wifi, supporting Wifi expansion
5G 1 M.2 2230 E-Key 5G slot
1 switch, with LED light button switch
Front switches: A set of front switches can be led out using Phoenix terminals
Audio: 1 Line-Out/MIC 2-in-1 audio jack
Power Supply Interface: 1 DC IN Interface (DC Power Supply Interface, 2-pin Phoenix Connector)
|
|
Storage |
SATA/M.2 |
| Installation methods |
Desktop installation, wall-mounted installation, VESA installation
|
| Weight |
2.05kg
|
| Operating system |
Win7/Win10/Linux, 64bit |
| Chassis size |
190×143×72mm (W*H*D) |
| Working environment |
Operating temperature/humidity requirements: 0℃ to 60℃ Celsius, 5% to 90% (non-condensing)
Non-operating temperature/humidity requirements: -40℃ to 70℃; humidity: 5% to 90% (non-condensing)
|
| Power Supply |
Accepts DC input voltage ranging from 9 to 36V |
order information
| M55-01 | Embedded system / heat sink / J6412 / 8GB / 128GB / 6 USB ports / 5 serial ports / 5 LAN ports / DP + HDMI / 12V 5A power adapter |
| M55-02 | Embedded complete machine / cooling fin (with fan) / N97 / 8G / 128G / 6USB / 5 serial ports / 5 LAN ports / DP+HDMI / 12V 5A power adapter |
| M55-03 | Embedded computer / cooling fin / I5-4210U / 8G / 128G / 6USB / 5 serial ports / 5 LAN ports / DP+HDMI / 12V 5A power adapter |
| M55-04 | Embedded complete machine / heat sink (with fan) / I5-7200U / 8G / 128G / 6USB / 5 serial ports / 5 LAN ports / DP+HDMI / 12V 5A power adapter |
| M55-05 | Embedded computer / heat sink (with fan) / I5-7500U / 8G / 128G / 6USB / 5 serial ports / 5 LAN ports / DP+HDMI / 12V 5A power adapter |
| M55-06 | Embedded complete machine / cooling fin (with fan) / I5-8250U / 8G / 128G / 6USB / 5 serial ports / 5 LAN ports / DP+HDMI / 12V 7A power adapter |
| M55-07 | Embedded computer / heatsink (with fan) / I5-1135G7 / 8GB / 128GB / 6 USB ports / 5 serial ports / 5 LAN ports / DP + HDMI / 12V 7A power adapter |
| M55-08 | Embedded complete machine / cooling fin (with fan) / I5-1235U / 8G / 128G / 6USB / 5 serial ports / 5 LAN ports / DP+HDMI / 12V 7A power adapter |
