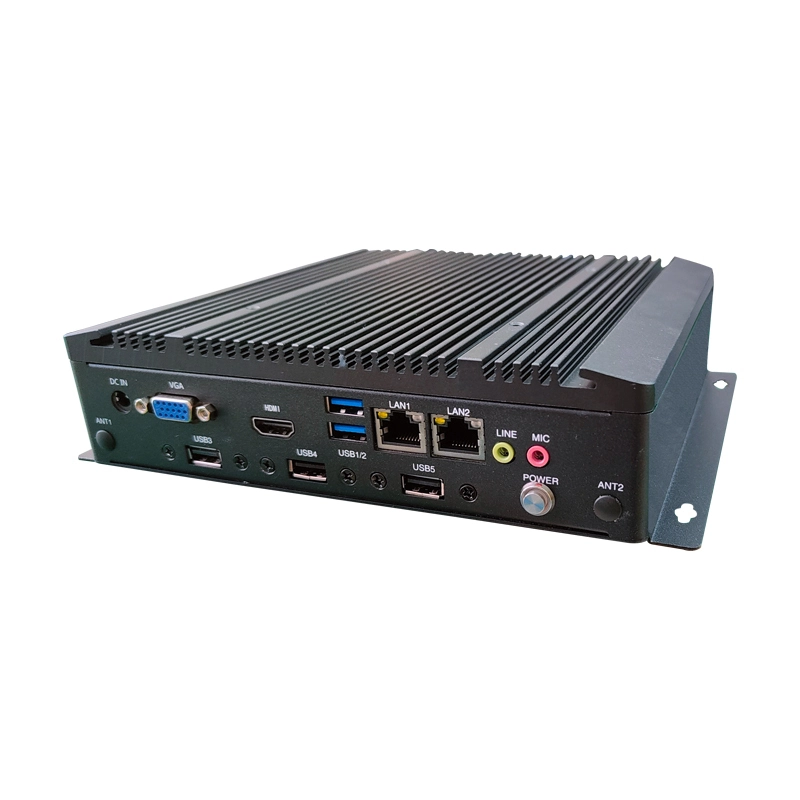

Fanless embedded complete machine M51
J4125 processor Gemini Lake series solution. 2 RJ45 10/100 ports
/1000 network interface, 3 USB2.0 ports, 2 USB3.0 ports, 4 serial ports
COM1 supports RS232/485/422 options.
M51
Robust aluminum alloy profiles and galvanized steel plate shell
Intel® Celeron® J4125 Processor with 4M Cache, 2.0G, quad-core
Fully sealed, dustproof and anti-interference, excellent heat dissipation performance, fanless design
Support HDMI+VGA dual display
Supports 4 COM ports and 5 USB ports
Small size, strong expansion capability
7*24 hours continuous operation
product size
| Product model |
M51 |
|
System configuration |
Processor: Intel® Celeron® J4125 Processor, 4M Cache, 2.0G, quad-core Chipset: Intel Gemini Lake Memory: Provides one 260Pin DDR4 SO-DIMM memory slot, with the slot supporting up to 8GB |
|
I/O interface |
2 network ports: RJ45 10/100/1000 network interfaces
HDMI: 1 HDMI port
One VGA port
USB 5 USB interfaces (3 USB2.0, 2 USB3.0)
COM has 4 serial ports, with COM1 supporting RS232/485/422 options
Audio 1 set of Audio interfaces
Antenna: Reserve 2 WIFI antenna holes
Switch: 1 POWER switch button
Power connector: 1 DC terminal power connector
|
|
Expansion bus |
1 MiniPCIE expansion slot (with SIM card holder supporting 4G module) 1 M.2 |
|
Storage |
1 M.2 slot, supporting SSDs of 2242/2280, with optional capacity
|
| Installation methods | Desktop installation, wall-mounted installation, VESA installation |
| Weight |
* |
| Operating system |
Win7/Win10/Linux, 64bit |
| Chassis size |
200×53×180mm (W*H*D)
|
| work environment |
Operating temperature/humidity requirements: 0℃～ 60℃ Celsius, 5% ～ 90% (non-condensing)
Non-operating temperature/humidity requirements: -40℃ to 70℃; humidity: 5% to 90% (non-condensing) |
| Power supply |
DC 12V 5A Power Adapter |
order information
| M51 | Fanless embedded computer /J4125/4G/128G/5USB/4 serial ports /2LAN I225V/VGA+HDMI/12V 5A power adapter |
