AIOTOIA is committed to smart manufacturing and industrial IoT solutions since 2008.

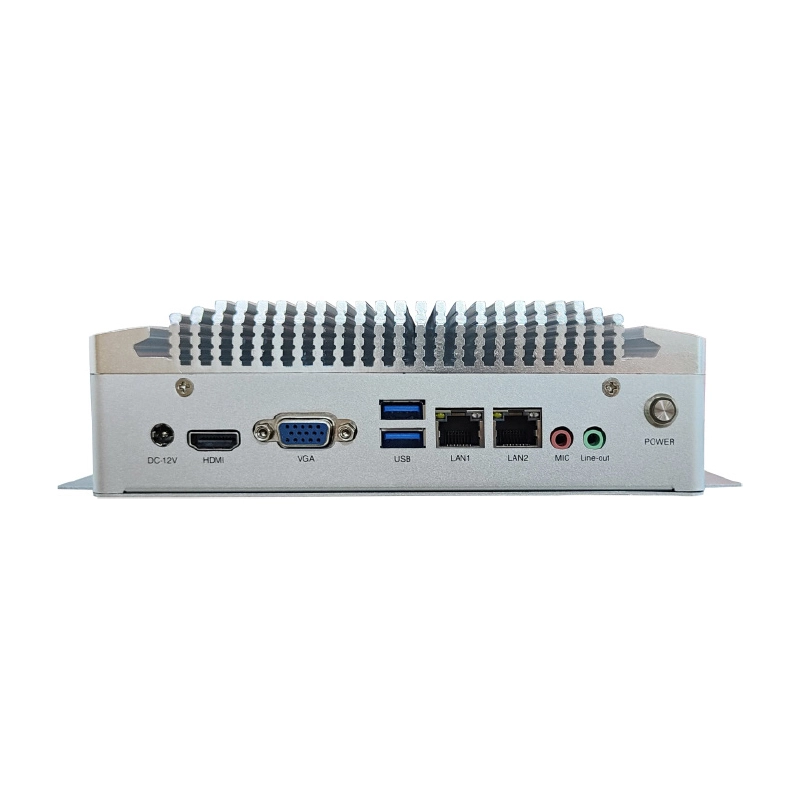

Fanless embedded complete machine M51-I5-11
2 x RJ45 Realtek 8111H/Intel I225V/Intel I226V/Intel I210AT, 2 USB2.0 ports, 2 USB3.0 ports, 2 * RS232 interfaces (COM2 supports RS485/422 functions)
M51-I5-11
Robust aluminum alloy profiles and galvanized steel plate shell
Optional board sticker J1900/J6412/I5-4300UI5-6300U/I5-8260U/I5-1135G7
Fully sealed, dust-proof, and interference-resistant, with excellent heat dissipation performance and fanless design
Supports 2 COM ports and 4 USB ports
Small size, strong expansion capability
7*24 hours continuous operation
product size
| Product model |
M51-I5-11 |
|
System configuration |
System configuration Processor board sticker J1900/J6412/I5-4300U/I5-6300U/I5-8260U/I5-1135G7 Chipset SOC |
|
I/O interface |
Network ports 2 x RJ45 Realtek 8111H/Intel I225V/Intel I226V/Intel I210AT
HDMI: 1 HDMI port
One VGA port
USB 4 USB interfaces (2 USB2.0, 2 USB3.0)
COM 2 * RS232 serial interfaces, with COM1 supporting 9-pin power-on and COM2 supporting RS485/422 functions
Audio 1 set of Audio interfaces
Antenna: 2 WIFI antenna holes
Switch: 1 POWER switch button
Power Supply Interface: 1 DC IN Interface
|
|
Expansion bus |
depends on the motherboard |
|
Storage |
SATA/MSATA/M.2
|
| Installation methods | Desktop installation, wall-mounted installation, VESA installation |
| Weight |
* |
| Operating system |
Win7/Win10/Linux, 64bit |
| Chassis size |
190×206×70mm(W*H*D)
|
| work environment |
Operating temperature/humidity requirements: 0℃～ 60℃ Celsius, 5% ～ 90% (non-condensing)
Non-operating temperature/humidity requirements: -40℃ to 70℃; humidity: 5% to 90% (non-condensing) |
| Power supply |
DC 12V 5A Power Adapter |
order information
| M51-I5-11-01 | Fanless embedded computer /J1900/4G/128G/6USB/6 serial ports /2LAN 8111H/VGA+HDMI/12V 5A power adapter |
| M51-I5-11-02 | Fanless embedded computer /J6412/8G/128G/6USB/6 serial ports /2LAN 8111H/VGA+HDMI/12V 5A power adapter |
| M51-I5-11-03 | Fanless embedded computer /I5-4300U/8G/128G/6USB/6 serial ports /2LAN 8111H/VGA+HDMI/12V 5A power adapter |
| M51-I5-11-04 | Fanless embedded computer /I5-6300U/8G/128G/6USB/6 serial ports /2LAN I210AT/VGA+HDMI/12V 5A power adapter |
| M51-I5-11-05 | Fanless embedded computer / I5-8260U / 8G / 128G / 6USB / 6 serial ports / 2LAN I226V / VGA + HDMI / 12V 7A power adapter |
| M51-I5-11-06 | Fanless embedded computer /I5-1135G7/8G/128G/6USB/6 serial ports /2LAN I225V/VGA+HDMI/12V 7A power adapter |
We always look forward to establishing a connection with you with an open attitude.
A high-tech industrial computer manufacturer specializing in the sales and development of embedded industrial control motherboards and industrial control computers, focusing on customization, with an independent production workshop.
