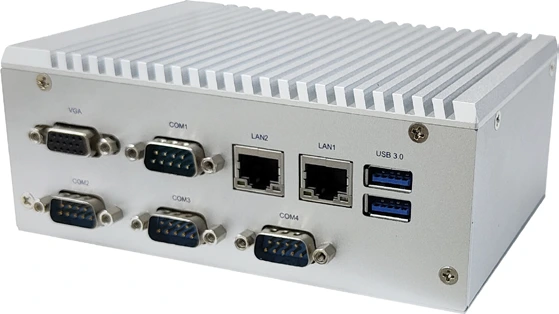

Fanless embedded complete machine M30
SOC CPU, J1900 is a quad-core 2.0GHz processor, while J1800 is a dual-core 2.41GHz processor,
Intel Atom Bay Trail SoC platform. 2 Intel 211 100/1000
Network interface, 5 USB2.0 ports, 1 USB3.0 port, 4 serial ports
COM1 and COM2 can be selected from RS232, 485, and 422.
M30
Robust aluminum alloy profiles and galvanized steel sheet shell
One DDR3L SO-DIMM memory slot, supporting up to 8GB
2 Intel® Gigabit Ethernet ports
4 serial ports, COM1 and COM2, with options of RS232/485/422
Using Intel network chips ensures high-speed and stable data transmission
The anti-static design of the interface effectively protects the core components of the system and enhances system reliability. ◆ Wide DC voltage input meets different application needs
product size
| Product model |
M30
|
|
system configuration |
The processor is an Intel Celeron SOC CPU, J1900, featuring quad-core 2.0GHz Chipset: Intel Atom Bay Trail SoC platform Memory: 1 DDR3L SO-DIMM memory slot, supporting up to 8GB |
|
I/O interface |
2 Ethernet ports, Intel 211 100/1000 network interface
One VGA port USB: 6 USB ports (5 USB2.0, 1 USB3.0) COM has 4 serial ports, with COM1 and COM2 offering options of RS232/485/422 One switch with LED light, POWER button Power Interface: 1 DC IN Interface (2-pin Phoenix Power Supply Terminal) |
|
system configurationExpansion Bus |
Provides 2 miniPCIe slots, supporting compliance with the PCI Express Mini Card Electromechanical Specification Expansion card or mSATA device compliant with Specification; The MPCIE1 expansion slot defaults to the PCIe bus, while the MSATA1 expansion slot defaults to the SATA signal |
|
I/O interfacestorage |
1 SATA hard disk interface
1 MSATA hard drive interface |
| Front panel of shellInstallation methods | Desktop installation, wall-mounted installation, VESA installation |
| Weight |
* |
| Operating system |
Win7/Win10/Linux, 64bit |
| Chassis size |
162×60×107mm(W*H*D)
|
| work environment |
IT12Operating temperature/humidity requirements: 0℃ to 60℃ Celsius, 5% to 90% (non-condensing) |
| Power supply |
DC 12-19V, powered by an adapter
|
order information
| M30 | Mini fanless computer /J1900/4G/128G/6USB/4 serial ports /2LAN I211AT/VGA/12V 5A power adapter |
