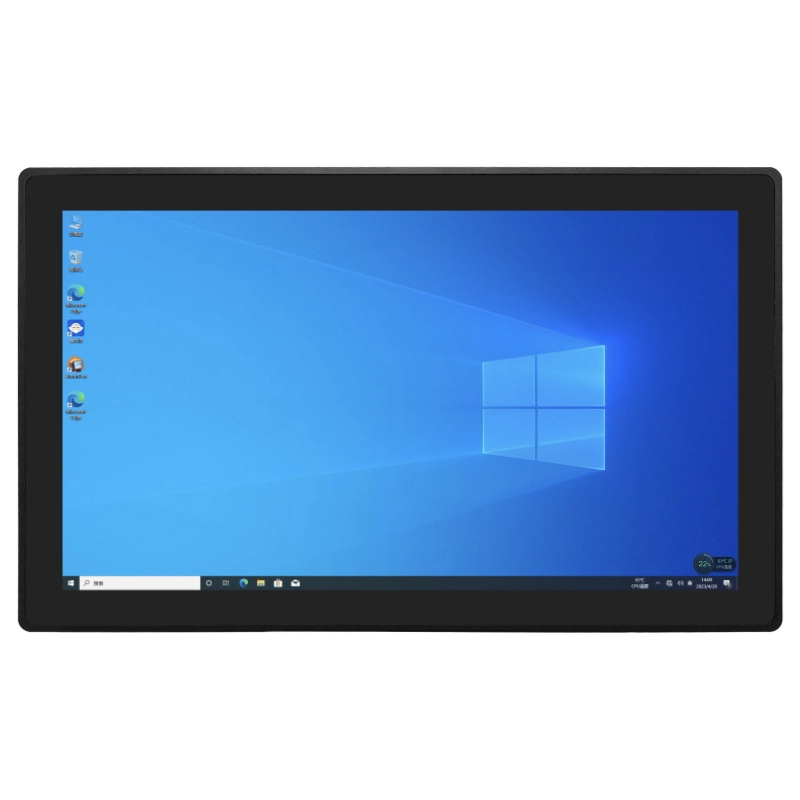

Industrial touch display W21RT-L
VGA two standard display interfaces for data input, with OSD function, supporting touch screen operation.
Supports multiple installation modes including embedded, rack mounted, open, and VESA arm mounted,
The product specifications cover almost all common industrial field applications.
Widescreen: 10.1/13.3/15.6/18.5/21.5/23.6/27 inches
Front screen: 10.4/12.1/15/17/19 inches
W21RT-L
Stylish appearance, sturdy and durable
21.5-inch high brightness LED LCD display
Wide temperature range: 0 ° C to 50 ° C
OCD menu, brightness/contrast/auto correction function adjustment
HDMI/VGA two display inputs
Embedded, wall mounted, and VESA multiple installation methods
product size
| Product model |
W21RT-L |
|
LCD screen |
Screen type 21.5 inches Resolution 1920 × 1080 Maximum color 16.7M Display area (W × H) 476.64 × 268.11 mm Backlight WLED Backlight MTBF (hour) 30K (Min.) hour Pixel distance (W × H) 0.24825 × 0.24825 mm Brightness of 300 cd/m ² Contrast ratio 1000:1 Perspective (L/R/T/B) 89/89/89/89 |
|
Touch Screen |
Touch screen type: capacitive multi-point touch screen Transmittance ≥ 85% Controller USB interface Driver supports Win8.1/Win10 Response time (stylus) ≤ 16ms Surface hardness 6H Theoretically infinite touch life |
|
I/O interface |
1 x DCIN，5.5/2.1mm，12V
1 x HDMI
1 x VGA
1 x USB 2.0
|
|
Control button |
Rear panel OSD control key, adjustable contrast/brightness |
| Front panel of shell | Front panel: aluminum magnesium alloy, anodized coating; All aluminum body and integrated design |
| Waterproof |
The front panel reaches IP65 protection level |
| Installation methods |
Embedded, wall mounted, desktop VESA |
| Shell |
tolerance ± 0.5mm |
| International tolerance |
IT12 |
| Weight |
* |
| Operating system |
Win7/Win10/Linux,64bit
|
| Hole size(W × H) |
515mm×306mm
|
| Dimensions (W × D × H) |
523mm×48mm×314mm
|
| Working environment |
Working temperature/humidity requirements: 0-50 ℃, 10% -90% without condensation |
order information
W21RT-L-01
|
21.5-inch industrial touch display / VGA + HDMI / capacitive touch / 12V 5A power adapter |
