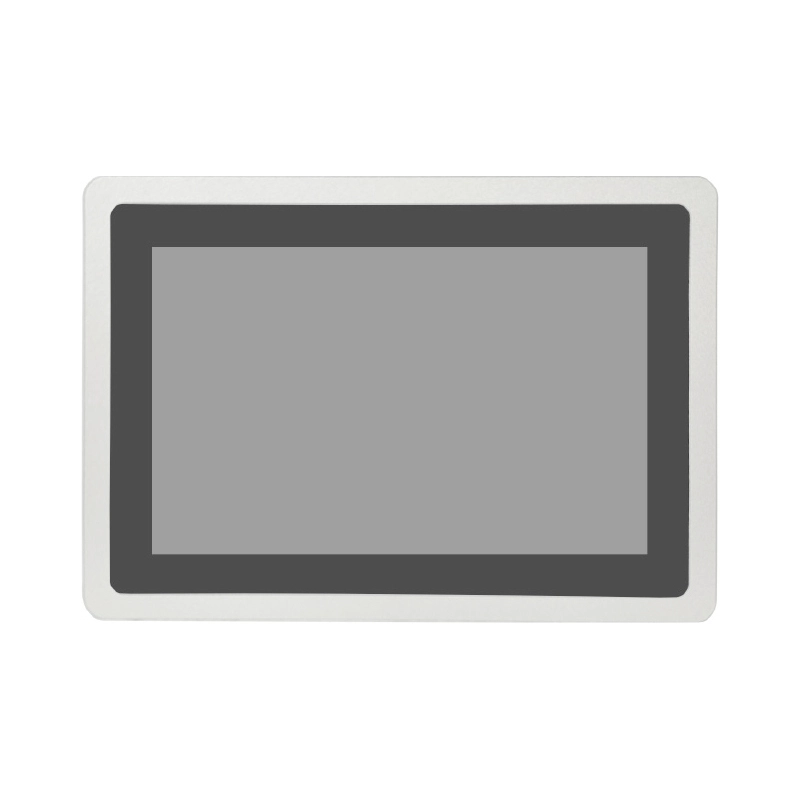

Fanless industrial tablet A model W10RW-G Intelligent Transportation System
Up to IP65 protection level. Can be paired with J1900/J6412/I5-4300U/I5-
Different from 6300U/I5-8260U/I5-1135G7/I7-195G7/I7-1255U
The operating platform meets different performance requirements.
Widescreen: 10.1/13.3/15.6/18.5/21./23.6 inches
Front screen: 12.1/15/17/19 inches
W10RW-G
Pure planar capacitive industrial touch screen
10.1-inch high brightness LED LCD display
Fully sealed dust and interference prevention, excellent heat dissipation performance, fanless design
7 * 24-hour continuous operation
Support WiFi, 4G, 5G and other extensions
Multiple installation methods including embedded, wall mounted, desktop, and VESA
product size
| Product model |
W10RW-G |
|
LCD screen |
Screen type 10.1 inches Resolution 1280 × 800 Maximum color 16.2M Display area (W × H) 216.96 × 135.6 mm Backlight WLED Backlight MTBF (hour) 30K (Min.) hour Pixel distance (W × H) 0.1695 × 0.1695 mm Brightness 400 cd/m ² Contrast ratio 900:1 Perspective (L/R/T/B) 85/85/85/85 |
|
Touch Screen |
Touch screen type: capacitive multi-point touch screen Transmittance ≥ 85% Controller USB interface Driver supports Win8.1/Win10 Response time (stylus) ≤ 16ms Surface hardness 6H Theoretically infinite touch life |
|
system configuration |
Processor board sticker J1900/J6412/I5-6200U/I7-6500U/I5-8260U/I5-10210U Chipset onboard SoC integration DDR3L/DDR4L SO-DIMM memory slot Storage of SATA/MSATA/M.2 WIFI can support MINI PCIE or M.2 WIFI modules (depending on the motherboard selection) 4G/5G can support MINI PCIE or M.2 4G/5G modules (depending on the motherboard selection) |
|
I/O interface |
1 x DCIN，5.5/2.5mm，12V 2 x RJ45 Realtek 8111H/Intel I225V/Intel I226V/Intel I211AT/Intel I210AT 2 x WIFI terminals 2 x 2pin Phoenix power supply terminals, one for power supply and one for opening and closing wires 1 x HDMI 1 x VGA 3 x USB2.0/2 x USB3.0 1 x Line-out 2 x COM |
| Front panel of shell | aluminum magnesium alloy, anodized coating; All aluminum body and integrated design |
| Waterproof |
front panel reaches IP65 protection level |
| Installation methods |
include embedded, wall mounted, desktop VESA |
| Shell |
tolerance ± 0.5mm |
| International tolerance |
IT12 |
| Weight |
* |
| Operating system |
Win7/Win10/Linux, 64 bit
|
| Hole size(W × H) |
256mm × 175mm |
| Dimensions (W × D × H) |
264mm × 51mm × 183mm |
| Working environment |
temperature/humidity requirements: 0-50 ℃, 10% -90% non condensing |
order information
| W10RW-G-01 | 10.1-inch fanless tablet / J1900 / 4G / 128G / 6USB / 2 serial ports / 1 LAN 8111H / 12V 5A power adapter |
| W10RW-G-02 | 10.1-inch fanless tablet / I5-6200U / 4G / 128G / 5USB / 2 serial ports / 2 LAN ports I211AT / 12V 5A power adapter |
| W10RW-G-03 | 10.1-inch fanless tablet / I7-6500U / 8G / 128G / 5USB / 2 serial ports / 2 LAN ports I211AT / 12V 7A power adapter |
| W10RW-G-04 | 10.1-inch fanless tablet / I7-6500U / 8G / 128G / 5USB / 2 serial ports / 2 LAN ports I211AT / 12V 7A power adapter |
| W10RW-G-05 | 10.1-inch fanless tablet / I5-8260U / 8G / 128G / 5USB / 2 serial ports / 5LAN I210AT / 12V 7A power adapter |
| W10RW-G-06 | 10.1-inch fanless tablet / I5-10210U / 8G / 128G / 5USB / 2 serial ports / 2 LAN ports I210AT / 12V 7A power adapter |
