Fanless industrial tablet A model P19RW-X Intelligent Transportation System
Up to IP65 protection level. Can be paired with J1900/J6412/I5-4300U/I5-
Different from 6300U/I5-8260U/I5-1135G7/I7-195G7/I7-1255U
The operating platform meets different performance requirements.
Widescreen: 10.1/13.3/15.6/18.5/21./23.6 inches
Front screen: 12.1/15/17/19 inches

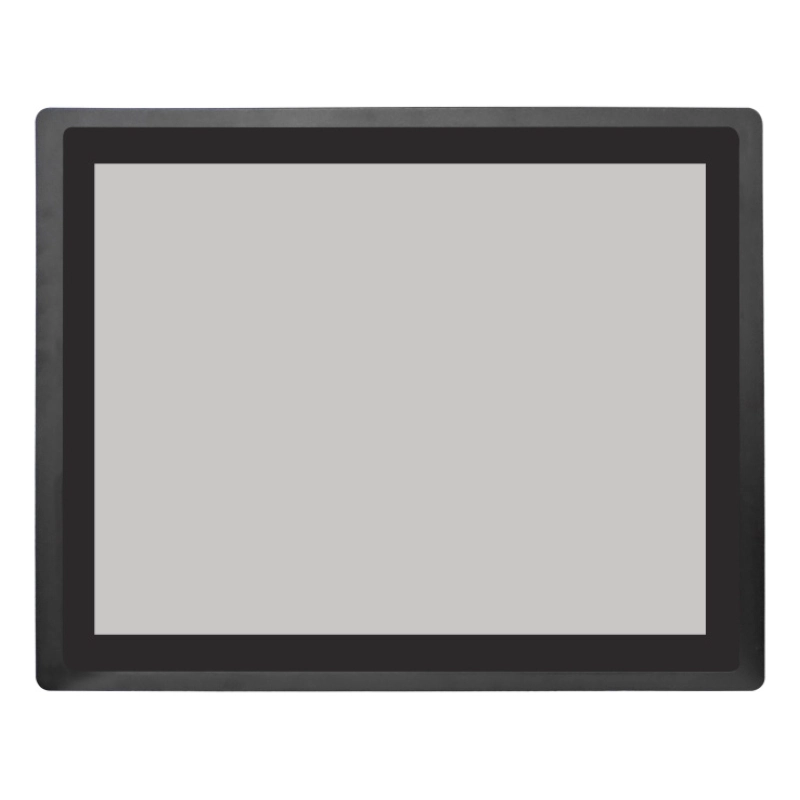

P19RW-X
Pure planar capacitive industrial touch screen
19 inch high brightness LED LCD display
Fully sealed dust and interference prevention, excellent heat dissipation performance, fanless design
7 * 24-hour continuous operation
Support WiFi, 4G and other extensions
Multiple installation methods including embedded, wall mounted, desktop, and VESA
product size
| Product model |
P19RW-X
|
|
LCD screen |
Screen type 19 inches Resolution 1280 × 1024 Maximum color 16.7M Display area (W × H) 374.784 × 299.827 mm Backlight WLED Backlight MTBF (hour) 30K (Min.) hour Pixel distance (W × H) 0.0976 × 0.2928 mm Brightness of 250 cd/m ² Contrast ratio 1000:1 Perspective (L/R/T/B) 89/89/89/89 |
|
Touch Screen |
Touch screen type: capacitive multi-point touch screen Transmittance ≥ 85% Controller USB interface Driver supports Win8.1/Win10 Response time (stylus) ≤ 16ms Surface hardness 6H Theoretically infinite touch life |
|
system configuration |
Processor board mount I5-1155G7 Chipset onboard SoC integration DDR4-3200MT/s notebook memory, Max 32GB Store 1 * standard SATA3.0 interface 1 * M.2 2280 M-Key slot WIFI 1 * M.2 2230 E-Key WIFI slot 4G 1 * MINI-PCIE slot, supporting 4G expansion |
|
I/O interface |
1 x DCIN, (2pin Phoenix power supply terminal) 9-36V
5 x RJ 45: LAN1-5 uses Intel I211AT. LAN1-4 supports POE 1 x HDMI 1 x USB2.0/4 x USB3.0 6 x COM （RS232） |
| Front panel of shell | Front panel: aluminum magnesium alloy, anodized coating; All aluminum body and integrated design |
| Waterproof |
The whole machine has reached IP65 protection level |
| Installation methods |
include embedded, wall mounted, desktop VESA |
| Shell |
tolerance ± 0.5mm |
| International tolerance |
IT12 |
| Weight |
* |
| Operating system |
Win7/Win10/Linux, 64 bit
|
| Hole size(W × H) |
437mm×357mm
|
| Dimensions (W × D × H) |
453mm×88mm×376mm
|
| Working environment |
temperature/humidity requirements: 0-50 ℃, 10% -90% non condensing |
order information
| P19RW-X-01 | 19-inch fanless flat panel / I5-1155G7 / 8G / 128G / 6USB / 6 serial ports / 5LAN I211AT / DC12V 7A power adapter |
